Product Details:
|
| Size: | 49 Inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Contrast: | 4000:1 | Brightness: | 1000 Cd/m² |
| Response Time: | 12ms | Dot PiXel: | 0.18642(H) X 0.55926(V) Mm |
| Active Area: | 1073.78 (H) X 604 (V) Mm | Surface: | Antiglare |
| View Angle: | 89/89/89/89(L/R/U/D) | Power Supply: | AC 110 ~ 240V |
| Highlight: | 5.3mm Narrow Bezel Lcd Video Wall,5.5mm Narrow Bezel Lcd Video Wall,700Nit wall mounted video wall |
||

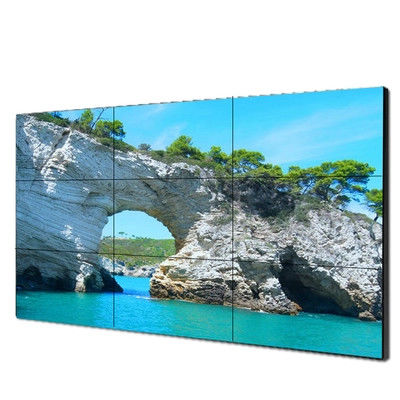

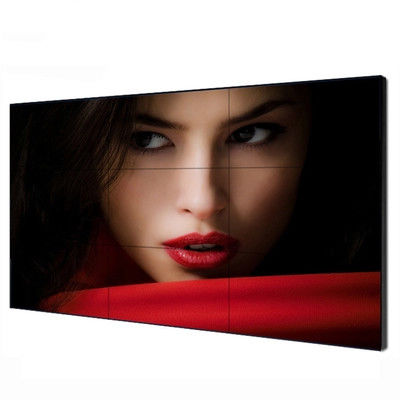

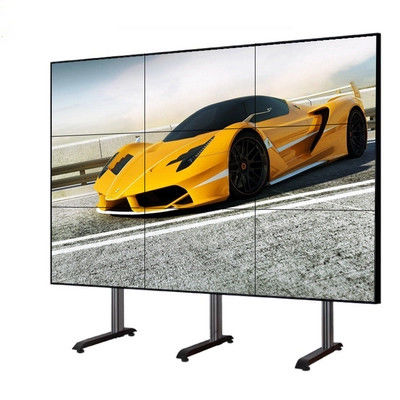

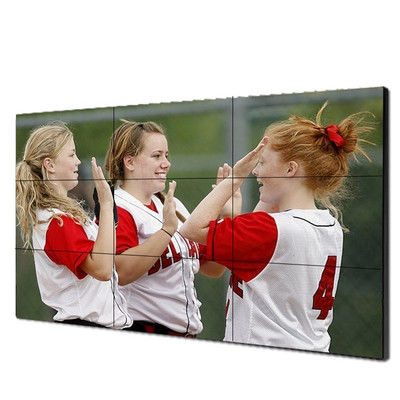

5.5mm 1.8mm Narrow Bezel Lcd Video Wall 49 Inch 700Nit Wall Mounted Screen
Description:
The 49 inch seamless video wall can do this. For the 10 meters X 3 meters display wall, it can be divided into 60 sub-screen windows(each sub-screen is a single display). Input 60 signals from the camera into the video wall(60 displays). Now you can see the 60 working sites on the video wall. If you want to see clearly the situation in one working site, just choose the corresponding display and then the whole area of the video wall only shows this single display. It is 10 meters X 3 meters. How clear it is! The most important is that the gap between two displays is pretty narrow, which doesn’t decrease the view effect.
Highlights:
Super narrow seamless lcd video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers as 6.7mm, 5.7mm, 5.5mm, 5.3mm.
High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
Parameters:
|
Panel Data |
Size | 47 inch |
| Native Resolution | 1920X1080 | |
| Aspect Ratio | 16: 9 | |
| Brightness | 1000 cd/m² | |
| Contrast Ratio | 4000:1 | |
| Life of Panel | 60000hours | |
| Responsive Time | 8ms | |
| Power supply | AC110V - 240V, 50/60HZ | |
| Storage Temperature | -20 to 60 Celsius degree | |
| Normal Working Temperature | -30 to 50 Celsius degree | |
| Voltage | 100V-240V | |
|
Other Parameters |
Inputs | VGA x1,HDMI x1,DVI x1,Video/Audio x1,RS232 x1 |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Warrranty Period | 1Year | |
|
Touch Data |
Touch screen piont | Photon waving surface sensing true 10 point touch(up to 40 point) |
| Scan speed | 50P/S | |
| Glass above the panel | Glossy glass 4 mm |
Notes:
You can choose to set the touch screen.
More parameter information will be displayed on the quotation table.
