Product Details:
|
| Size: | 65 Inch | Response Time: | 8ms |
|---|---|---|---|
| Brightness: | 1000 Cd/m² | Contrast: | 4000:1 |
| Native Resolution: | 3840X2160 | Dot PiXel: | 0.124(H) X 0.372(V) Mm |
| Active Area: | 1428.48(H) X 803.52(V) Mm | Lifetime: | 60000 Hours |
| Highlight: | 1000Cd/M2 Digital Information Kiosk,65 Multi Touch Digital Signage,1000Cd/M2 Multi Touch Digital Signage |
||

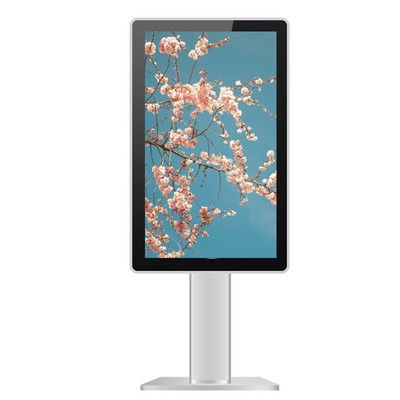

65 Inch High Brightness Multi touch Information Kiosk
Overview:
This is all-in-one package, including large size commercial LCD kiosk, multi-touch screen and built-in solution based hardware, such as Windows-based solution or Android-based solution. Commercial monitor is the large format screen, with HDMI/DVI/VGA input which is expandable to more kinds of Audio & Video input.The multi-touch screen is used for various interactive applications, such as lcd interactive whiteboard, touch-screen enquiry system, way-finding system etc.
Main features:
1. All-in-one solution, easy to use.
2. HDMI/VGA and expandable inputs/outputs.
3. High definition 1920 x 1080 (1080P) native resolution.
4. Fast and quick touch response for excellent user experience.
5. Wide view angle, high brightness and industrial design.
6. LED backlight with low power consumption, environment friendly.
7. All in one multi-touch display available for different applications.
8. OEM/ODM service is available.
| Parameters | ||
|
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 65 inch | |
| Native Resolution | 3840x2160 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1428.48(H) X 803.52(V) mm | |
| Dot Pitch | 0.124(H) X 0.372(V) mm | |
| Brightness | 1000cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M(8-bit) | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Backlight | LED backlight | |
|
General Information |
Built-in PC | Intel i3/i5/i7(Android OS based is for optional) |
| Main I/O port | HDMI x 1 | |
| USB x 4 | ||
| VGAx 1 | ||
| Resolution supported | 640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080 | |
| Color | Silver, Black, White or Customized | |
| Speaker | 10W x2 | |
| Control way | IR Remote Control | |
| Menu Language | English, Germany, Russian, French, Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
|
Touch Screen |
Touch technology | Infrared Touch |
| Touch point | 2 point, 4 point, 6 point, 10 point, 12 point, 16 point, 32 point etc | |
| Touch method | Finger,pen or non-transparent object | |
| Resolution | 4096 x 4096 | |
| Positioning accuracy | ±1.5mm | |
| Touch life time | Unlimited in theory | |
| Anti-light Interference | Yes | |
| Waterproof | Optional | |
| OS Compatible |
Win 2000/XP/Win 7/Win 8/Vista/Limux/Android(for optional) |
|
