Product Details:
|
| Size: | 55 Inch | Resolution: | 3840X2160 |
|---|---|---|---|
| Response Time: | 8ms | Brightness: | 2000cd/m² |
| Contrast: | 4000:1 | Dot PiXel: | 0.210(H) X 0.630(V)mm |
| Active Area: | 1209.6(H) X 680.4(V)mm | Life Of Panel: | 60000 Hours |
| High Light: | 55 Inch Samsung Outdoor Digital Signage,500cd/M2 Samsung Outdoor Digital Signage,500nits digital advertising signs outdoor |
||

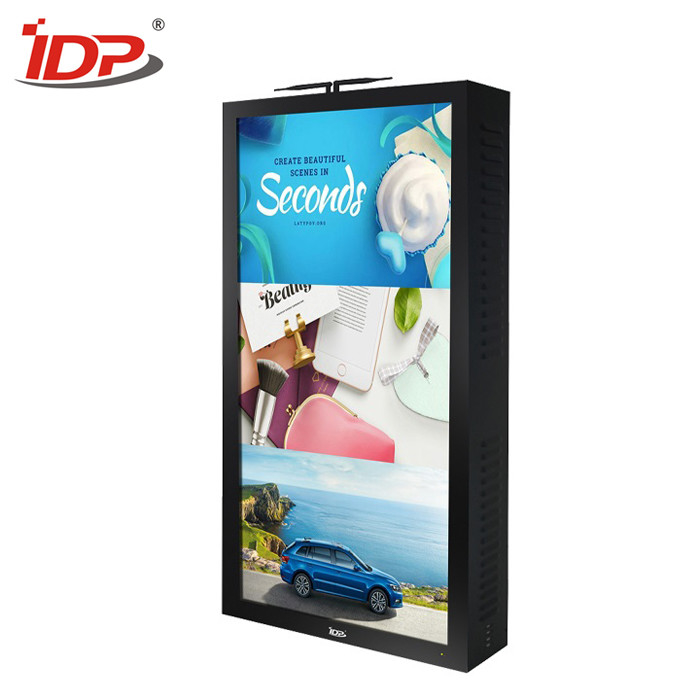

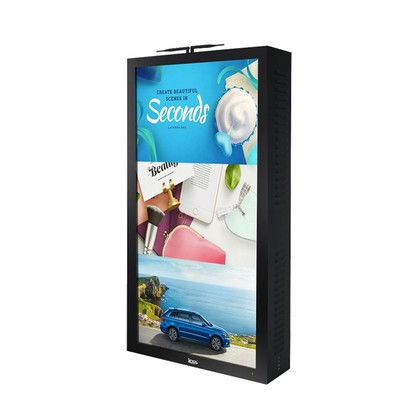

55 Inch Upside Down Multifunctional Outdoor Digital Signage Display
With the improvement and popularization of Android OS, the light of real network digital signage appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices locate. The stable Android OS makes the device work 7/24 hours safe and sound.
Applications:
shopping street, plaza, gas station, entrance of store, university, industrial park, sports event field, citizen park, scenic spot, CBD area etc.
Highlights:
Support split screen, one screen window is divided into several sections for different usages.
Remotely manage devices in different locations by internet.
Auto play back advertisement after power on, no need operation manually.
Easy upgraded if the advertisement business layout changes.
OEM/ODM service: digital signage enclosure, functions etc.
Specifications:
| Parameters | ||
|
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 3840X2160 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1209.6(H) X 680.4(V)mm | |
| Dot Pitch | 0.210(H) X 0.630(V)mm | |
| Brightness | 2000 cd/m² | |
| Contrast Ratio | 4000:1 | |
| Response Time | 8ms | |
| View Angle | 178°(H) / 178°(V) | |
| Frequency | 60Hz | |
|
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
|
General Information |
Image Resolution | 5000 x 5000 px Max |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
