Product Details:
|
| Size: | 65 Inch | Native Resolution: | 3840X2160 |
|---|---|---|---|
| Response Time: | 8ms | Brightness: | 500cd/m² |
| Contrast: | 4000:1 | Dot PiXel: | 0.124(H) X 0.372(V)mm |
| Active Area: | 1428.48(H) X 803.52(V)mm | Life Time: | 60000hours |
| Highlight: | 10 Points Android Touch Screen Kiosk,60Hz Digital Wayfinding Kiosk,3840X2160 Android Touch Screen Kiosk |
||

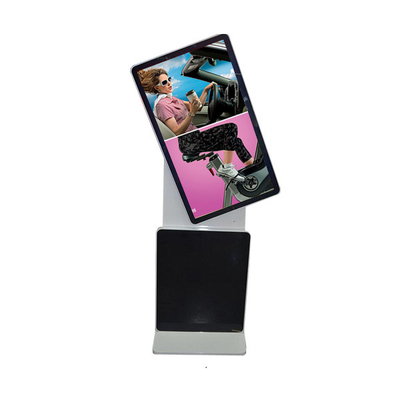

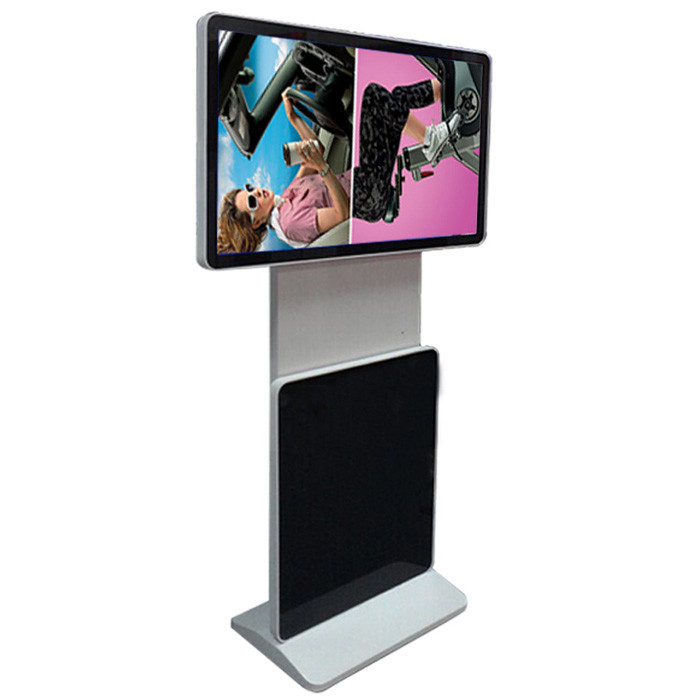

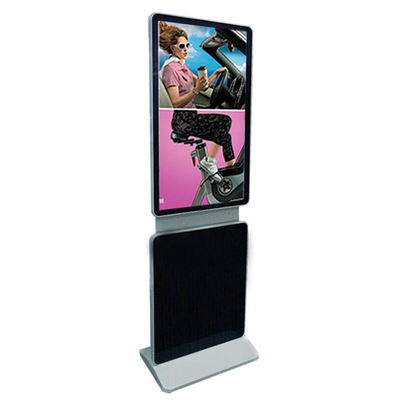

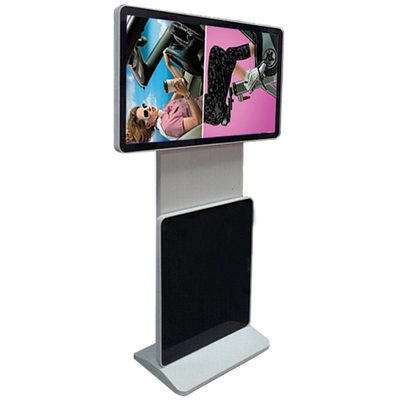

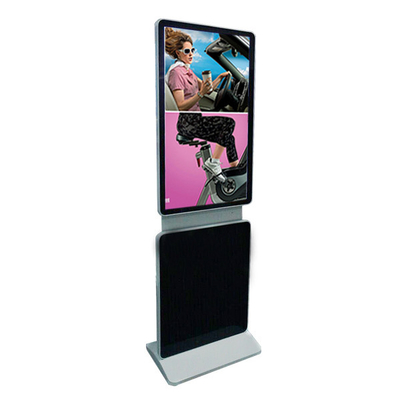

10 Points Android Touch Screen Kiosk 3840X2160 60Hz Digital Wayfinding Kiosk
Industry leaders across channels recognize the necessity of capturing evasive customers with attractive, attention-grabbing digital displays. Digital signage provides an opportunity like no other to engage audiences, create experiences and build brand loyalty.
With the improvement and popularization of Android OS, the light of real network digital signage appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices they locate. The stable Android OS makes the device work 7/24 hours safe and sound.
Applications for 65 Inch High Brightness Standing Touch Screen Kiosk:
shopping street, plaza, gas station, entrance of store, university, industrial park, sports event field, citizen park, scenic spot, CBD area etc.
Details of touch screen kiosk design:
1)The more details about interactive kiosk
With the touch screen feature,it is not difficult to think that there will be interactive features. Your audience can interact with the signage. With a specially designed media outlet, you can make this interaction worth remembering.
2)Remote control can serve as a wireless access point for mobile devices.
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
3)Vibrant colors and powerful performance bring content
This product uses LG/SAMSUNG LCD screen, with excellent image quality and the most advanced processing capabilities, and provides a value-added visual experience without peripheral equipment. High bright panel is anti-glare, sunlight readable for easy viewing.
Specifications of touch screen interactive kiosk:
| Parameters | ||
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 65 inch | |
| Native Resolution | 3840X2160 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1428.48(H) X 803.52(V)mm | |
| Dot Pitch | 0.124(H) X 0.372(V)mm | |
| Brightness | 500 cd/m² | |
| Contrast Ratio | 4000:1 | |
| Response Time | 8ms | |
| View Angle | 178°(H) / 178°(V) | |
| Frequency | 60Hz | |
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
General Information |
Image Resolution | 5000 x 5000 px Max |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
|
Touch Data |
Touch screen piont | 2,6,10,16,20,32,40,50,100 |
| Resolution | 32768*32768 | |
| Scan speed | 50P/S | |
| Position accuracy | ±1.5mm | |
| Glass above the panel | Glossy glass 4 mm | |
| Respone time | 4ms | |
| Power Consumption | 110MA | |
| Interface | USB | |
Note:
1. OEM/ODM for various functionalities, designs , shapes etc.
2. Optional touch screen settings.
3. The details are subject to upgraded without notice in advance.
*The details are subject to upgraded without notice in advance.
