Product Details:
|
| Size: | 55 Inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Response Time: | 12ms | Contrast: | 4000:1 |
| Brightness: | 450cd/m² | View Angle: | 178°(H) / 178°(V) |
| Frequency: | 60Hz | Dot PiXel: | 0.18642(H) X 0.55926(V)mm |
| Active Area: | 1073.78 (H) X 604 (V)mm | Surface: | Antiglare, Hard Coating |
| Color: | Custom | ||
| High Light: | 60Hz Kiosk Display Screen,FCC Kiosk Display Screen Outdoor,1920X1080 Kiosk Display Screen |
||

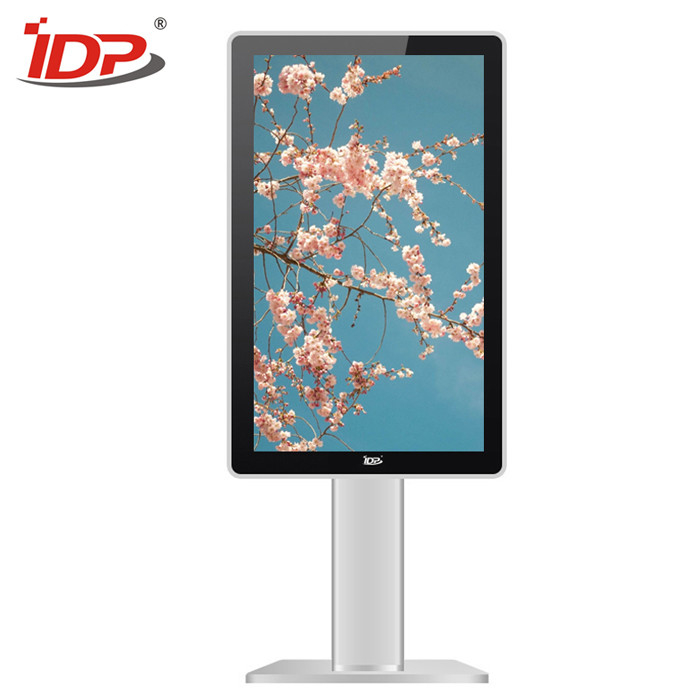

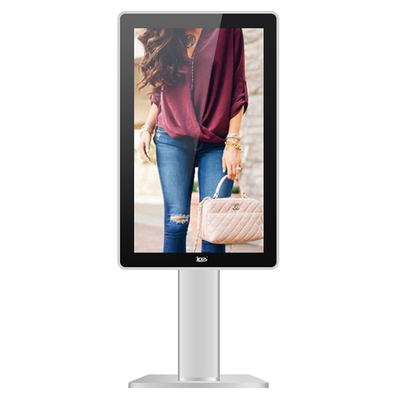

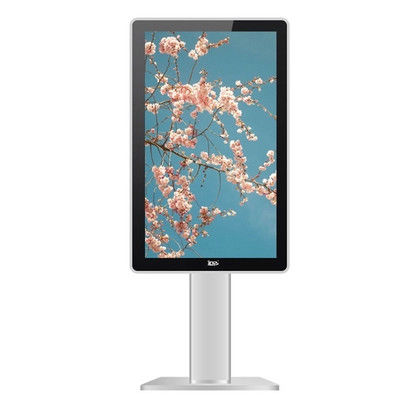

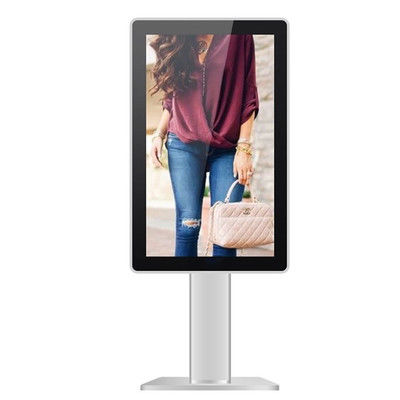

Werbung Design 55 Inch Outdoor Digital Signage Displays 450nits Kiosk Display Screen
This is all-in-one package, including large size commercial LCD kiosk, multi-touch screen and built-in solution based hardware, such as Windows-based solution or Android-based solution. Commercial monitor is the large format screen, with HDMI/DVI/VGA input which is expandable to more kinds of Audio & Video input.The multi-touch screen is used for various interactive applications, such as lcd interactive whiteboard, touch-screen enquiry system, way-finding system etc.
Thanks to technology progress, the outdoor lcd display becomes more and more reliable. By integrated the digital signage solution and outdoor design, it extends the lcd digital signage from indoor to outdoor, a vast market demand.
Main Features:
1. All-in-one solution, easy to use.
2. HDMI/VGA and expandable inputs/outputs.
3. High definition 1920 x 1080 (1080P) native resolution.
4. Fast and quick touch response for excellent user experience.
5. Wide view angle, high brightness and industrial design.
6. LED backlight with low power consumption, environment friendly.
7. All in one multi-touch display available for different applications.
8. OEM/ODM service is available.
Applications:
Details:
1)Vibrant colors and powerful performance bring content
This product uses LG/SAMSUNG LCD screen, with excellent image quality and the most advanced processing capabilities, and provides a value-added visual experience without peripheral equipment. High bright panel is anti-glare, sunlight readable for easy viewing.
2)The more details about outdoor interactive kiosk

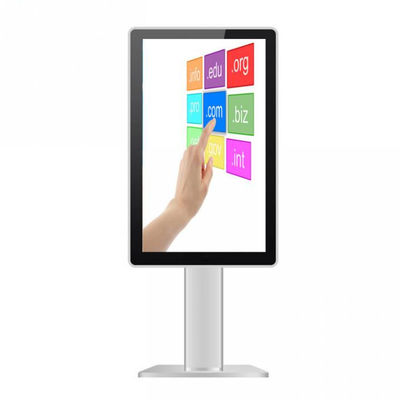

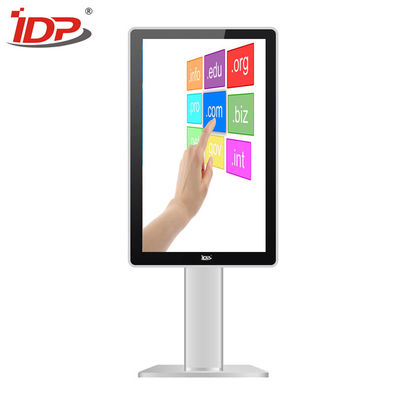

With the touch screen feature,it is not difficult to think that there will be interactive features. Your audience can interact with the signage. With a specially designed media outlet, you can make this interaction worth remembering.
3)Remote control can serve as a wireless access point for mobile devices.
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M(8-bit) | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Backlight | LED backlight | |
| General Information | Built-in PC | Intel i3/i5/i7(Android OS based is for optional) |
| Main I/O port | HDMI x 1 | |
| USB x 4 | ||
| VGAx 1 | ||
| Resolution supported | 640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080 | |
| Color | Silver, Black, White or Customized | |
| Speaker | 10W x2 | |
| Control way | IR Remote Control | |
| Menu Language | English, Germany, Russian, French, Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Touch Screen | Touch technology | Infrared Touch |
| Touch point |
2 point, 6 point, 10 point, 16 point, 20 point, 32 point, 40 point, 50 point, 100 point. |
|
| Touch method | Finger,pen or non-transparent object | |
| Resolution | 4096 x 4096 | |
| Positioning accuracy | ±1.5mm | |
| Touch life time | Unlimited in theory | |
| Anti-light Interference | Yes | |
| Waterproof | Optional | |
| OS Compatible |
Win 2000/XP/Win 7/Win 8/Vista/Limux/Android(for optional) |
|
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
*The details are subject to upgraded without notice in advance.
