Product Details:
|
| Size: | 43 Inch | Brightness: | 1000 Cd/m² |
|---|---|---|---|
| Contrast: | 4000:1 | Response Time: | 6ms |
| Active Area: | 1649.66(H)X927.936(V) Mm | Dot PiXel: | 0.1432(H)X0.4296 (V) Mm |
| Native Resolution: | 3840X2160 | Life Time: | 60000 Hours |
| Color: | Custom | Panel Brand: | For Samsung/LG |
| Highlight: | 2160P CCC High Brightness Digital Signage,6ms High Brightness Digital Signage,43 Inch High Brightness Digital Signage |
||

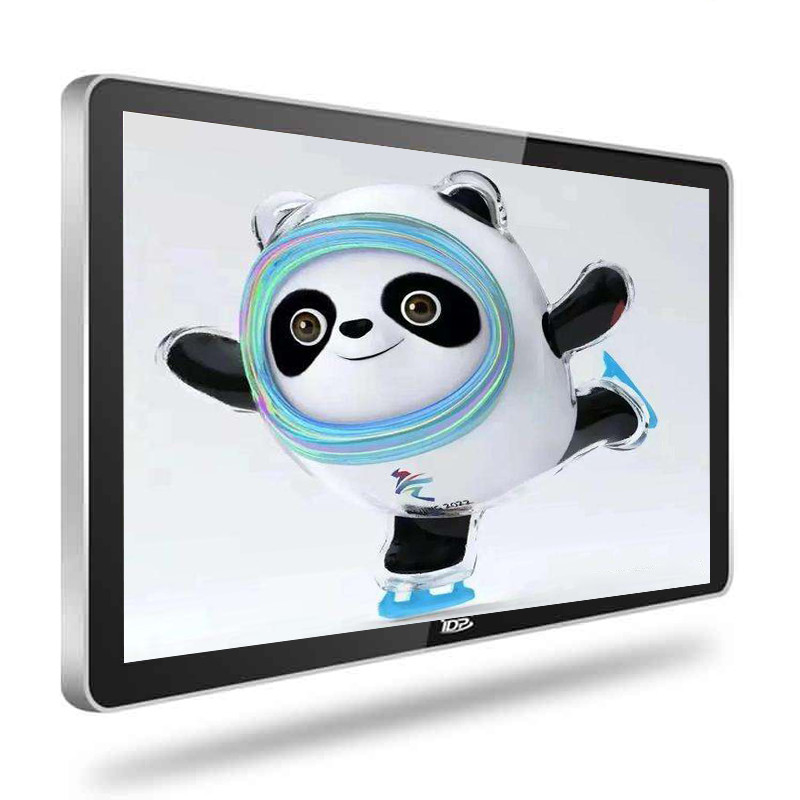

Tv Wall 2160P 6ms High Brightness Digital Signage And Display 43 Inch Wall Mountable Monitor
43 inch lcd video wall(LED backlight) is used to show display window in large scale size screen.
For example, in the traffic control room the officer wants to know the real traffic flow in a certain area. The display area on a wall is about 10 meters X 3 meters. There are 60 on-site cameras. Each camera tells the situation of each working site. How to realize this need?
The video wall can do this. For the 10 meters X 3 meters display wall, it can be divided into 60 sub-screen windows(each sub-screen is a single display). Input 60 signals from the camera into the video wall(60 displays). Now you can see the 60 working sites on the video wall. If you want to see clearly the situation in one working site, just choose the corresponding display and then the whole area of the video wall only shows this single display. It is 10 meters X 3 meters. How clear it is! The most important is that the gap between two displays is pretty narrow, which doesn’t decrease the view effect.Overview:
Commercial monitor is also called commercial grade display, large screen display. First it is a monitor with HDMI/DVI/VGA input which is expandable to more kinds of Audio & Video input. There should be input source, such as pc, notebook and media player etc.
What’s the difference between commercial monitor and common desktop monitor?
1. Commercial monitor is for commercial and industrial usage. Therefore from the design to its functions, it focus on to meet various commercial & industrial applications. Common desktop monitor is mainly for personal computer usage.
2. Large size lcd monitor is made of industrial tft lcd panel which has wide view angle, high brightness, durable stable performance and long life time. In theory the panel life time is more than 6 years, working 24/7/365 each year. This is different for personal usage monitor.
3. Commercial LCD monitor sometimes goes with touch screen for interactive touch experience, while common desktop monitor not.
4. The size is usually more than 15.6 inch,18.5 inch,19 inch, such as 22 inch, 24 inch, 26 inch, 32 inch, 42 inch,43 inch, 46 inch,49 inch,55 inch, 60 inch, 65 inch, 70 inch, 75 inch,80 inch, 84 inch, 86 inch,98 inch.
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 43 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| General Information | Bezel-to-bezel width | 5.5mm |
| Inputs | VGA x1 | |
| HDMI x1 | ||
| DVI x1 | ||
| Video/Audio x1 | ||
| RS232 x1 | ||
| Outputs | RS232 x1 | |
| Optional | DP in/DP out | |
| Image Resolution | 5000 x 5000 px Max | |
| Video Resolution | 1920 x 1080p Max | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | On the wall, on the floor, in the cabinet. | |
