Product Details:
|
| Material: | Metal Case + Toughened Glass Panel | Optional Function: | Multi Touch Screen |
|---|---|---|---|
| Brightness: | 500cd/m2 | Viewing Angle: | 178 /178 |
| Contrast Ratio: | 4000:1 | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Response Time: | 12ms | Pixel Pitch: | 0.18642(H) X 0.55926(V) Mm |
| Panel Brand: | For Samsung/LG | ||
| High Light: | 178 Degree Floor Standing Digital Signage,12ms Floor Standing Digital Signage,500cd/M2 Floor Standing Digital Signage |
||

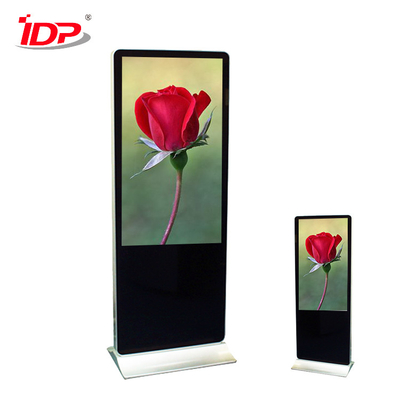

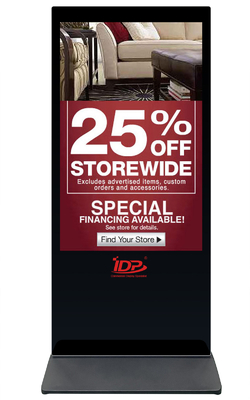

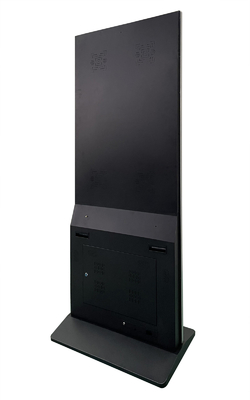

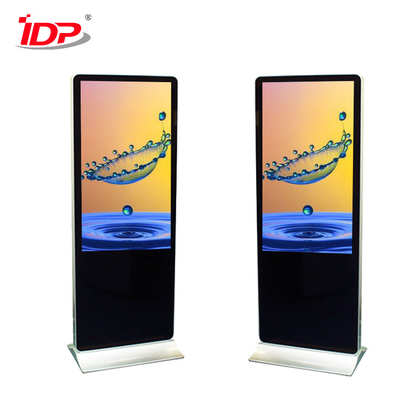

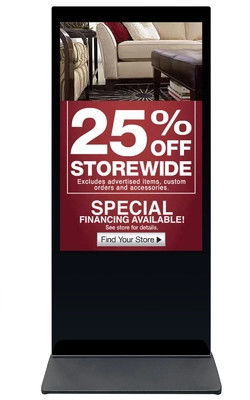

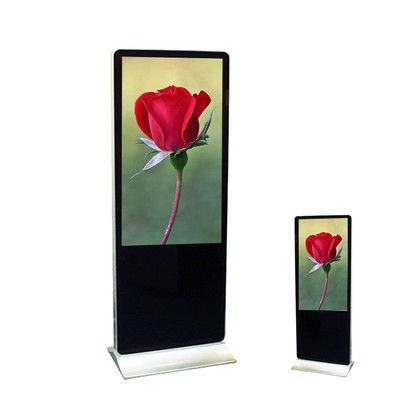

43 Inch Software Advertising Playing Equipment Digital Signage Display Indoor Standing exhibiting services
This is all-in-one package, including large size commercial monitor, multi-touch screen and built-in solution based hardware, such as Windows-based solution or Android-based solution. Commercial monitor is the large format screen, with HDMI/DVI/VGA input which is expandable to more kinds of Audio & Video inputs.The multi-touch screen is used for various interactive applications, such as lcd interactive whiteboard, touch-screen enquiry system, way-finding system etc.The built-in solution includes Windows-based solution, Android-based solution etc.
1. Large size lcd monitor is made of industrial lcd panel which has wide view angle, high brightness, durable stable performance and long life time. In theory the panel life time is more than 6 years, working 24/7. This is different from personal usage monitor.
2. The built-in solution is ready for different kinds of interactive touch screen usages.
3. The available size is as this, 32 inch, 42 inch, 46 inch, 47 inch, 55 inch, 65 inch, 70 inch, 80 inch, 84 inch, 98 inch etc.
Main features:
1. All-in-one solution, easy to use.
2. HDMI/VGA and expandable inputs/outputs.
3. High definition 1920 x 1080 (1080P) native resolution.
4. Fast and quick touch response for excellent user experience.
5. Wide view angle, high brightness and industrial design.
6. LED backlight with low power consumption, environment friendly.
7. All in one multi-touch display available for different applications.
8. OEM/ODM service is available.
Applications:
Business shops: Shopping mall, chain stores, cooperate building, hotel and restaurant etc.
Government or non-profit organization: bank, security department, insurance company, government, book stores, museum and school etc.
Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
Traffic department: metro station, traffic control room, airport etc.
Elevator, park, window etc.
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 43 inch | |
| Native Resolution | 3840X2160 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare, hard coating | |
| Active Area | 941.2(H) x 529.4(V) mm | |
| Dot Pitch | 0.18642(H) X 0.55926(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M | |
| Response Time | 12ms | |
| Life Time | 60000 hours | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| Network Data(*) | Android | ARM Cortex Octa Core 1.9G Hz |
| RAM | 1GB | |
| ROM | 4GB | |
| OS | Android 5.1 or above | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
| General Information | Image Resolution | 5000 x 5000 px Max |
| Video Resolution | 1920 x 1080p Max | |
| Color | Silver, Black, White or Customized | |
| Material | Stainless Steel + Tempered Glass | |
| Speaker | 5W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
