Product Details:
|
| Product Name: | Outdoor Smart City Bus Stop Digital Signage Solution LCD Display | Size: | 43 Inch |
|---|---|---|---|
| Contrast Ratio: | 4000:1 | Brightness: | ≥1500cd/m² |
| Response Time: | 8ms | Viewing Angle: | 178°/178°(L+R/U+D) |
| Power Supply: | AC 110 ~ 240V, 50/60 Hz | Active Area: | 941.184(W)X529.416(H) Mm |
| Interface Type: | VGA, HDMI, USB, RJ45, BNC Etc | Backlight: | LED Backlight |
| Display Type: | IPS, TFT | Color: | Black, Silver And Customized |
| Application: | Outdoor Digital Signage | Resolution: | 3840X2160 |
| High Light: | TFT Bus Stop Digital Signage,1500cd/m2 Bus Stop Digital Signage,3840X2160 Outdoor Digital Signage |
||
1. Smart forced-air cooling system or air-conditioner system to ensure stable and reliable performance.
2. IP65(customizable) design outdoor digital signage, waterproof, vandal-proof, sun readable.
3. High brightness up from 1500 cd/m2 to 4500 cd/m2, or even higher.
4. Suitable for various kinds of the outdoor environment, such as snow, desert, shore, etc, and support operation temperature from -40 Celsius to +55 Celsius.
5. Auto playback advertisement after power on, no need operation manually. Auto playback advertisement.
6. Support split screen, one screen window is divided into several sections for different usages.
7. Scrolling message, the pre-set message can be displayed.
8. Remotely manage devices in different locations by the internet.
9. Support online video dreaming.
10. Support more apps with the upgrade of Android OS.
11. OEM/ODM service: digital signage enclosure, functions, etc.
12. Easy upgraded if the advertisement business layout changes

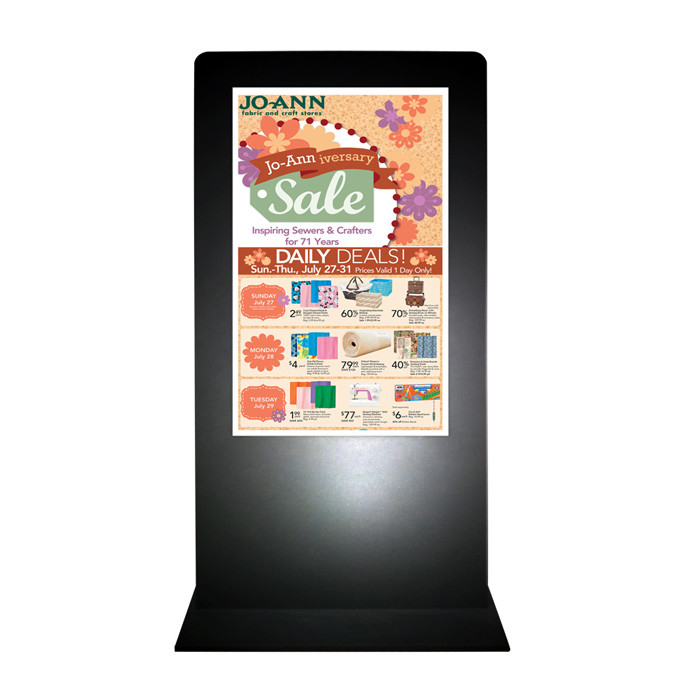

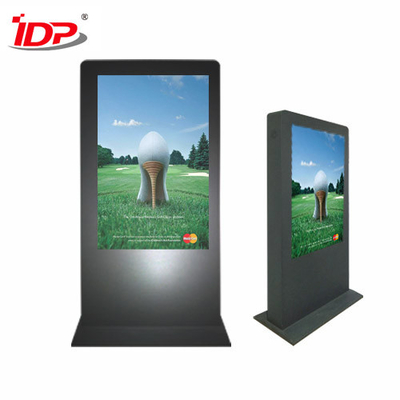

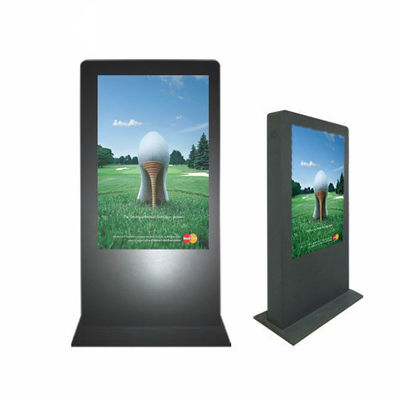

Pictures of Outdoor Smart City Bus Stop Digital Signage Solution LCD Display:
Details of Outdoor Smart City Bus Stop Digital Signage Solution LCD Display:
Panel Data |
Size |
43 inch |
|
Panel brand |
Samsung/LG | |
|
Surface |
Antiglare, hard coating | |
|
Active Area |
941.184(W)X529.416(H) mm | |
|
Native Resolution |
3840X2160 | |
|
Dot PiXel |
0.1634(H) × 0.4902(V) mm | |
|
Responsive Time (ms) |
8 | |
|
Contrast Ratio |
4000:1 | |
|
Lifetime (hour) |
60000 | |
|
Brightness |
≥1500cd/m² | |
|
Voltage (V) |
100-240 | |
Other Parameters |
Installation method |
Floor stand |
|
Camera |
Optional | |
|
Warranty Period |
1Year for free | |
|
Normal Working Temperature |
-20 to 60 Celsius degree | |
|
Storage Temperature |
-20 to 60 Celsius degree | |
|
Menu Language |
Russian, Germany, English, Spanish, French, etc. | |
|
Colour |
White, Black, Silver, or Customized | |
Network Data |
Android |
ARM Cortex-A17 |
|
RAM |
2GB(4GB for optional) | |
|
Land flash |
8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
|
Audio |
Integrated HI-FI 100dB Audio Codec | |
|
Picture format |
JPG, PNG, JPEG... | |
|
TXT |
YES | |
|
Main I/O |
HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
|
WiFi |
Built-in Wifi(802.11b/g/n) | |
| Outdoor Features | IP65 |
Galvanized steel |
|
Surface processing( waterproof, dustproof, anti-theft, anti-reflection, anti-corrosion) |
||
|
High brightness sun readable. |
||
|
Light transmittance of 97% |
||
|
Reflectance is less than 3% |
||
|
Separated UV 99% |
||
|
Industrial power supply |
||
|
Can automatically adjust the brightness |
||
| Cooling system |
Intelligent forced air cooling system for option(air-conditional cooling system for optional) |
|
|
Meet environment temperature -40+55 Celsius degree, humidity 10%-100% |
||
|
Patented cooling system to ensure the LCD screen in direct sunlight without blackening. |
||
| Assembly and testing of aging |
High and low-temperature test. |
|
|
Waterproof test |
||
|
Simulated solar radiation test |
||
|
Aging test |
Note:
1. OEM/ODM for various functionalities, designs, shapes, etc.
2. Delivery time: Sample in stock. Bulk order 7 days(TBC).
3. Warranty time: Standard 12 months(24 months/36 months warranty for option)
4. Free shipping digital signage accessories for spare parts.
FAQ for Outdoor Smart City Bus Stop Digital Signage Displays Solution LCD Display:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: What brand of screen are you using?
A: We are using Samsung, LG, and Samsung screens.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory, and we have the expert structural Engineer, we hope to provide you with the expert screen and shape, so OEM is also welcome.
Q: Do you give any discount?
A: We are Manufacturer, so we are able to give you the expert price and expert service at the same time.
Q: What payment methods does your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union, Paypal, and Money Gram
