Product Details:
|
| Product Name: | Multimedia Advertising Player And Gas Station Information Kiosk | Size: | 21.5 Inch |
|---|---|---|---|
| Contrast Ratio: | 3000:1 | Brightness: | 400cd/m2 Indoor And ≥1500cd/m² Outdoor |
| Response Time: | 5ms | Viewing Angle: | 178°/178°(L+R/U+D) |
| Dot PiXel: | 0.0825(H) X 0.2475(V) Mm | Active Area: | 475.2(H) X 267.3(V) Mm |
| Interface Type: | VGA, HDMI, USB, RJ45, BNC Etc | Backlight: | LED Backlight |
| Display Type: | IPS, TFT | Color: | Black, Silver And Customized |
| Application: | Outdoor/Indoor Digital Signage | Resolution: | 1920X1080 |
| High Light: | TFT Digital Information Kiosk,21.5 Inch Digital Information Kiosk,1500cd/m2 Outdoor Digital Signage |
||
Multimedia Advertising Player and Gas Station Information Kiosk uses wireless technology to put the promotional catering video screen, picture, text, video, etc. in the store at a specific time every day to each LCD terminal deployed on the gas station when drivers and passengers refuel at the gas station. Because the gas station display terminal perfectly and dynamically displays the promotion information and some additional services of the store, such advertisements can remove the resentment and resistance of drivers and passengers to a certain extent.
70% of the drivers and passengers passing through the gas station said they were willing to buy goods at the designated store according to the instructions of the advertising machine, which is more convenient than a blind search. For drivers who have to drive 300 kilometers a day, paying directly by the fuel tank is a great time-saving. After all, this moment of leisure is also very valuable to him.
The "joint operation" of gas stations and convenience stores in relevant non-oil service projects can not only promote the extension of customer service functions of gas stations and the diversification of profit sources but also relate to the competitive direction and strategic positioning of the company. With the deepening of the application of digital signs, we can predict that more gas stations will deploy relevant digital equipment in the future. In addition to the good operation of refined oil retail, providing "joint operation" with surrounding convenience stores can bring more advertising and additional income and realize higher value pursuit.
1. Smart forced-air cooling system or air-conditioner system to ensure stable and reliable performance.
2. IP65(customizable) design outdoor digital signage, waterproof, vandal-proof, sun readable.
3. High brightness up from 1500 cd/m2 to 4500 cd/m2, or even higher.
4. Suitable for various kinds of the outdoor environment, such as snow, desert, shore, etc, and support operation temperature from -40 Celsius to +55 Celsius.
5. Auto playback advertisement after power on, no need operation manually. Auto playback advertisement.
6. Support split screen, one screen window is divided into several sections for different usages.
7. Scrolling message, the pre-set message can be displayed.
8. Remotely manage devices in different locations by the internet.
9. Support online video dreaming.
10. Support more apps with the upgrade of Android OS.
11. OEM/ODM service: digital signage enclosure, functions, etc.
12. Easy upgraded if the advertisement business layout changes

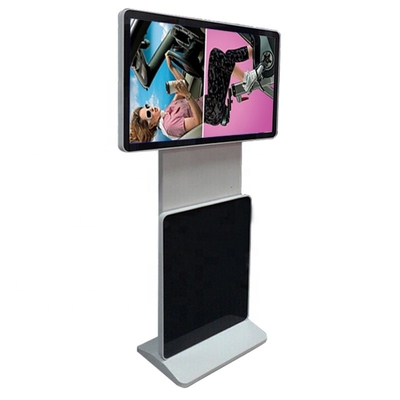

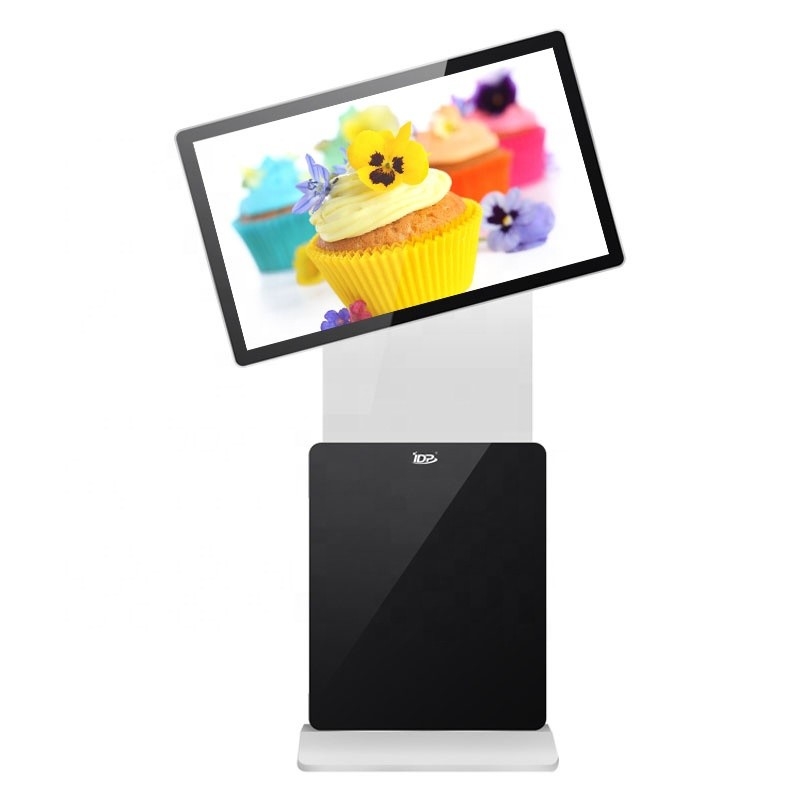

Pictures of Multimedia Advertising Player and Gas Station Information Kiosk:
Details of Multimedia Advertising Player and Gas Station Information Kiosk:
Panel Data |
Size
|
21.5 inch |
|
Panel brand
|
Samsung/LG | |
|
Surface
|
Antiglare, hard coating | |
|
Active Area
|
475.2(H) X 267.3(V) mm | |
|
Native Resolution
|
1920X1080 | |
|
Dot PiXel
|
0.0825(H) X 0.2475(V) mm | |
|
Responsive Time (ms)
|
5 | |
|
Contrast Ratio
|
3000:1 | |
|
Lifetime (hour)
|
60000 | |
|
Brightness
|
400cd/m2 indoor and ≥1500cd/m² outdoor | |
|
Voltage (V)
|
100-240 | |
Other Parameters |
Installation method
|
Floor stand |
|
Camera
|
Optional | |
|
Warranty Period
|
1Year for free | |
|
Normal Working Temperature
|
-20 to 60 Celsius degree | |
|
Storage Temperature
|
-20 to 60 Celsius degree | |
|
Menu Language
|
Russian, Germany, English, Spanish, French, etc. | |
|
Colour
|
White, Black, Silver, or Customized | |
Network Data |
Android
|
ARM Cortex-A17 |
|
RAM
|
2GB(4GB for optional) | |
|
Land flash
|
8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
|
Audio
|
Integrated HI-FI 100dB Audio Codec | |
|
Picture format
|
JPG, PNG, JPEG... | |
|
TXT
|
YES | |
|
Main I/O
|
HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
|
WiFi
|
Built-in Wifi(802.11b/g/n) | |
| Touch Data |
Touch screen point
|
Photon waving surface sensing true 10 point touch(up to 40 point) |
|
Resolution
|
32768*32768 | |
|
Scan speed
|
50P/S | |
|
Position accuracy
|
±1.5mm | |
|
Glass above the panel
|
Glossy glass 4 mm | |
|
Response time
|
4ms | |
|
Power Consumption
|
110mA | |
|
Interface
|
USB | |
| Outdoor Features | IP65 |
Galvanized steel
|
|
Surface processing( waterproof, dustproof, anti-theft, anti-reflection, anti-corrosion)
|
||
|
High brightness sun readable.
|
||
|
Light transmittance of 97%
|
||
|
Reflectance is less than 3%
|
||
|
Separated UV 99%
|
||
|
Industrial power supply
|
||
|
Can automatically adjust the brightness
|
||
| Cooling system |
Intelligent forced air cooling system for option(air-conditional cooling system for optional)
|
|
|
Meet environment temperature -40+55 Celsius degree, humidity 10%-100%
|
||
|
Patented cooling system to ensure the LCD screen is in direct sunlight without blackening.
|
||
| Assembly and testing of aging |
High and low-temperature test.
|
|
|
Waterproof test
|
||
|
Simulated solar radiation test
|
||
|
Aging test
|
Note:
1. OEM/ODM for various functionalities, designs, shapes, etc.
2. Delivery time: Sample in stock. Bulk order 7 days(TBC).
3. Warranty time: Standard 12 months(24 months/36 months warranty for option)
Other related pictures of Multimedia Advertising Player and Gas Station Information Free Kiosk:
The nursing of Multimedia Advertising Player and Gas Station Information Free Kiosk:
How to clean the housing?
Wipe with a cotton cloth dipped in clean water. Do not use any detergent. This will make the shell lose its unique luster when leaving the factory.
Why are there interference lines on the screen when switching the LCD?
This situation is caused by the signal interference of the display card, which is a normal phenomenon. This problem can be solved by adjusting the phase automatically or manually.
How to clean the LCD screen?
When cleaning the LCD screen, try not to use a wet cloth with too much moisture, so as to avoid water entering the screen and causing LCD internal short circuits and other faults. It is recommended to wipe the LCD screen with soft objects such as spectacle cloth and lens paper, so as to avoid moisture entering the LCD without scratching the screen.
matters needing attention:
Before cleaning the screen of this machine, please unplug the power cord to ensure that the advertising machine is in a power-off state, and then gently dust off the dust with a clean, soft cloth without a threaded end. Do not directly use spray on the screen;
Please do not block the ventilation hole and sound pronunciation hole on the advertising shell, and do not place the advertising machine near the radiator, heat source, or any other equipment that may affect the normal ventilation;
Do not disassemble or repair the advertising machine by yourself to avoid high-voltage electric shock or other hazards. If it needs to be repaired, please ask professional maintenance personnel to complete all maintenance work;
Since most advertising machines are used in public places, the voltage is unstable, which may cause damage to advertising machine equipment. It is recommended to use stable mains power, and never use the same power supply with high-power equipment such as elevators. For example, in places where the voltage is often unstable, such as subway stations, please be sure to use the corresponding voltage stabilizing equipment to stabilize the voltage, otherwise, it is easy to cause the advertising machine to work unstable and even burn out the advertising machine;
When inserting the card, if it cannot be inserted, please do not insert it hard to avoid damaging the card pin. At this time, check whether the card is inserted reversely. In addition, please do not plug and unplug the card when it is turned on, but do so after it is turned off.
FAQ for Multimedia Advertising Player and Gas Station Information Kiosk:
FAQ for Outdoor Digital Signage Solutions For Gas Stations Advertising:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery .
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: What brand of screen are you using?
A: We are using Samsung, LG, and Samsung screens.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory, and we have the excellent structural Engineer, we hope to provide you with the excellent screen and shape, so OEM is also welcome.
Q: Do you give any discount?
A: We are Manufacturer, so we are able to give you the excellent price and excellent service at the same time.
Q: What payment methods does your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union, Paypal, and Money Gram
