Product Details:
|
| Material: | Metal Case + Toughened Glass Panel | Brightness: | 500cd/m2 |
|---|---|---|---|
| Viewing Angle: | 178 /178 | Contrast Ratio: | 4000:1 |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Response Time: | 8ms |
| Dot Pitch: | 0.12125(H) X 0.36375(V) Mm | Surface: | Antiglare |
| High Light: | 500cd/m2 Digital Signage Touch Screens,Android 5.1 Digital Signage Touch Screens,1080P FHD Digital Display Screen |
||

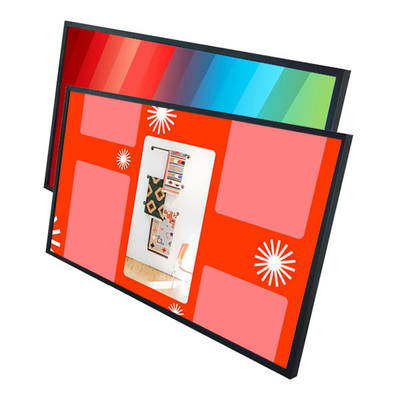

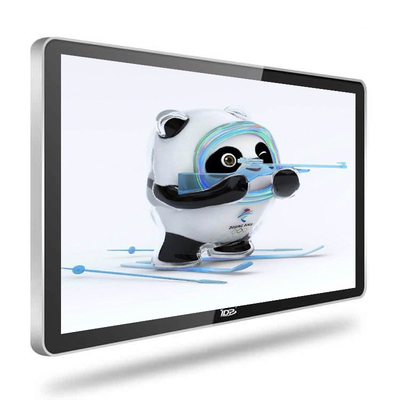

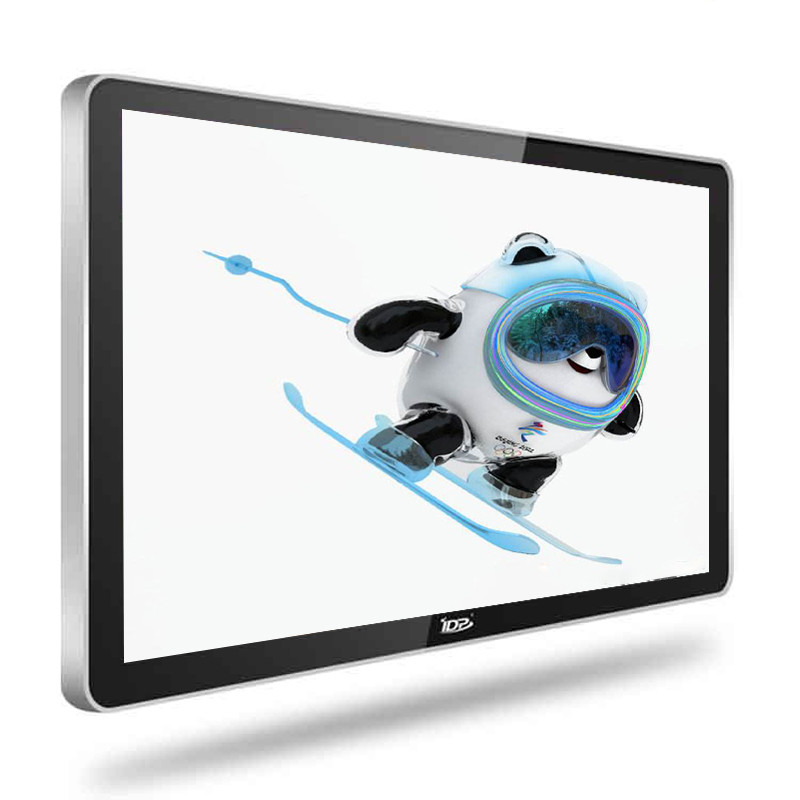

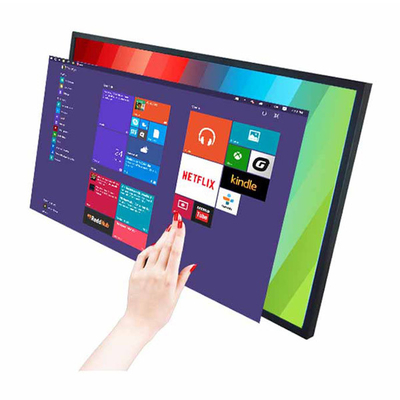

FHD 1080P LCD Advertising TV Player Digital Signage Touch Screen Displays with Wifi
High Brightness Digital Signage
Indoor window digital signages are designed for high ambient light indoor environments, it can show your products to customers very well. The High brightness commercial monitor is usually used in a retail storefront window.The high brightness window display features a proprietary local dimming LED back light technique for a remarkably high contrast picture. With direct local dimming, darker areas of an image receive less backlighting than lighter areas.
True Color Calibration, Digiatl Signage
The high-brightness window display has been calibrated to the ultra-high color standard at the factory. This color setting produces a natural looking image which has a correlated color temperature to that of daylight.
Main features:
1. Auto play back advertisement after power on, no need operation manually.
2. Support split screen, one screen window is divided into several sections for different usages.
3. Scrolling message, the pre-set message can be displayed.
4. Play HD 1080P videos and pictures.
5. Remotely manage devices in different locations by internet.
6. Support online video dreaming.
7. Easy upgraded if the advertisement business layout changes.
8. Support more apps with the upgrade of Android OS.
9. Optional function: touch screen, 3G, customized Android apps.
10. OEM/ODM design: digital signage enclosure, functions etc.
11. Available size:19 inch, 21.5 inch, 22 inch, 24 inch, 26 inch 27 inch, 32 inch, 42 inch, 46 inch, 47 inch, 55 inch, 65 inch, 70 inch.
Applications:
Business shops: Shopping mall, chain stores, cooperate building, hotel and restaurant etc.
Government or non-profit organization: bank, security department, insurance company, government, book stores, museum and school etc.
Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
Traffic department: metro station, traffic control room, airport etc.
Elevator, park, window etc.
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 22 32 43 Inch | |
| Native Resolution | 3840X2160 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare, hard coating | |
| Active Area | 941.2(H) x 529.4(V) mm | |
| Dot Pitch | 0.1634(H) x 0.4902(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| Life Time | 60000 hours | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| Network Data(*) | Android | ARM Cortex Octa Core 1.9G Hz |
| RAM | 1GB | |
| ROM | 4GB | |
| OS | Android 5.1 or above | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
| General Information | Image Resolution | 5000 x 5000 px Max |
| Video Resolution | 1920 x 1080p Max | |
| Color | Silver, Black, White or Customized | |
| Material | Stainless Steel + Tempered Glass | |
| Speaker | 5W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
Notes:
More detailed parameters will be displayed on the quotation form.
Optional touch settings.
