Product Details:
|
| Material: | Metal Case + Toughened Glass Panel | Optional Function: | Multi Touch Screen |
|---|---|---|---|
| Brightness: | 500cd/m2 | Viewing Angle: | 178 /178 |
| Contrast Ratio: | 4000:1 | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Response Time: | 8ms | Pixel Pitch: | 0.210(H) X 0.630(V) Mm |
| High Light: | 55 Inch Digital Signage Display Kiosk,OEM Touch Screen Digital Signage Display,500cd/m2 Digital Signage Display Kiosk |
||

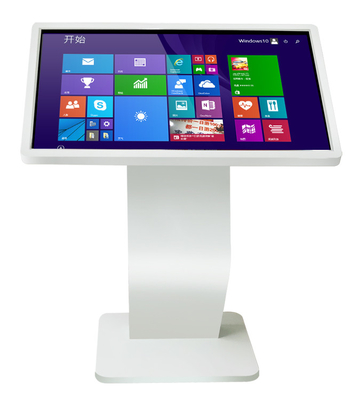

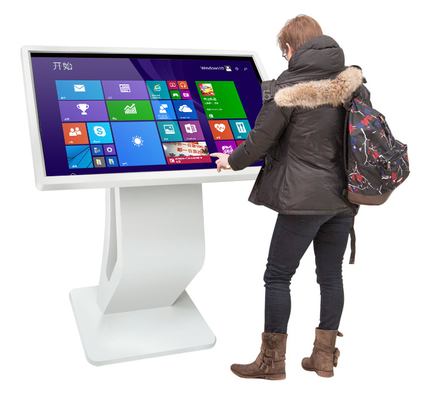

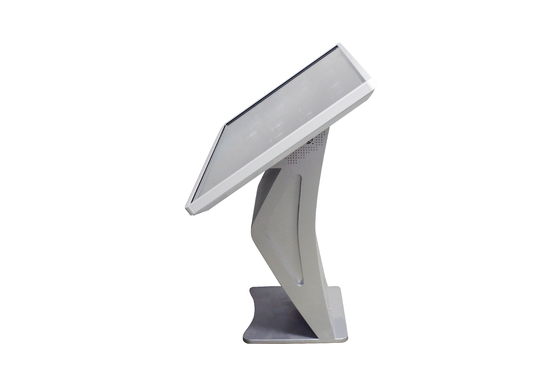

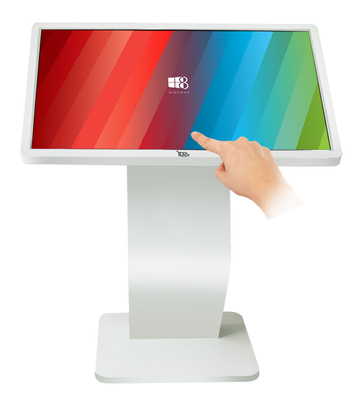

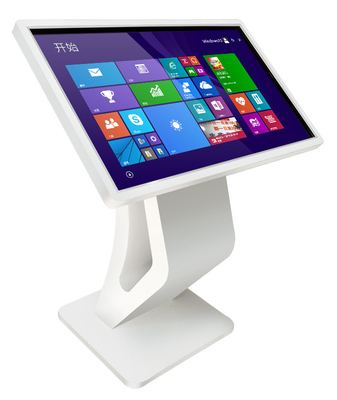

55 Inch Indoor Interactive Touch Screen Digital Signage Display Kiosk for library
With the improvement and popularization of Android OS, the light of real network digital signage appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices they locate. The stable Android OS makes the device work 7/24 hours safe and sound. We can find this digital signage in library and shopping mall.
Main features of digital display touch screen kiosk:
1. Support split screen, one screen window is divided into several sections for different usages.
2. Scrolling message, the pre-set message can be displayed.
3. Remotely manage devices in different locations by internet.
4. Support more apps with the upgrade of Android OS.
5. OEM/ODM service: digital signage enclosure, functions etc.
6. Commercial grade, stable and long lifetime, can working 24/7/365 each year.
Specifications of digital information kiosk:
| Parameters | ||
|
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 3840X2160 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1209.6(H) X 680.4(V)mm | |
| Dot Pitch | 0.210(H) X 0.630(V)mm | |
| Brightness | 500 cd/m² | |
| Contrast Ratio | 4000:1 | |
| Response Time | 8ms | |
| View Angle | 178°(H) / 178°(V) | |
| Frequency | 60Hz | |
|
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
|
General Information |
Image Resolution | 5000 x 5000 px Max |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Delivery time: Sample in stock. Bulk order 7 days(TBC).
3.Warranty time: Standard 12 months(24 months/36 months warranty for option).
4.The details are subject to upgraded without notice in advance.
