Product Details:
|
| Size: | 86 Inch | Native Resolution: | 3840X2160 |
|---|---|---|---|
| Dot PiXel: | 0.1645(H)X0.4935 (V) Mm | Active Area: | 1895.04(H)X1065.96(V) Mm |
| Brightness: | 500cd/m2 | Response Time: | 8ms |
| Display Ratio: | 16:9 | Display Color: | 16.7M |
| High Light: | RJ45 Interactive Digital Display Board,500cd/M2 Brightness Interactive Digital Display Board,86 Inch Interactive Digital Board |
||

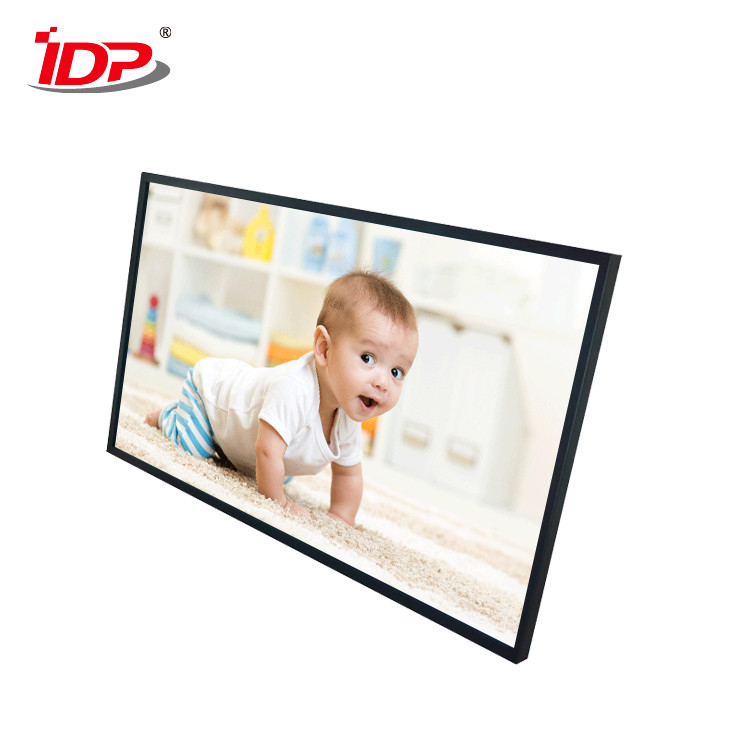

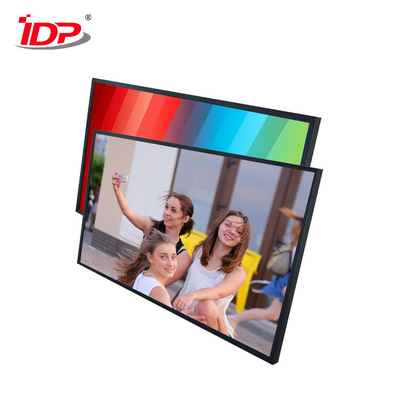

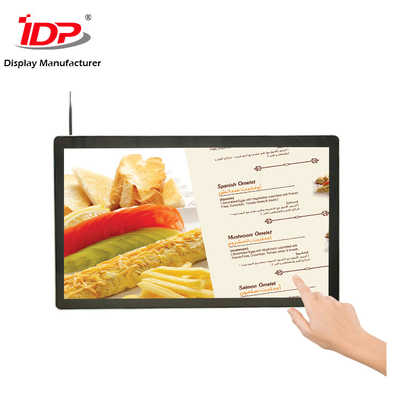

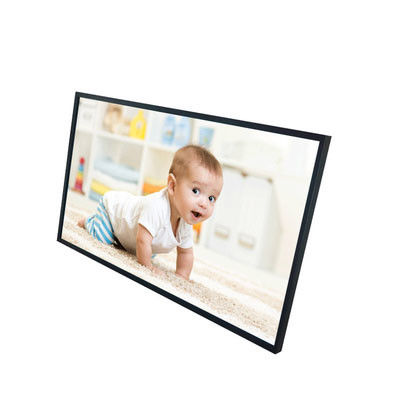

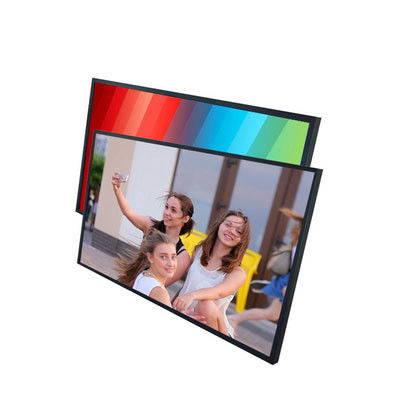

UHD Multi-touch Wall Mounted 86 Inch Interactive Digital Display Board 500cd/m2
With the perfection and popularization of Android OS, the real light of network digital signage appeared. Android digital signage devices (hereafter referred to as simply) are the perfect solution for remote management. First connect the device to the internet via wifi, LAN or 3G. Second, turn on your computer and easily send ads to the device, no matter where the device is located. Stable Android OS keeps the device working 24/7 safely.
Main features:
1. Easy-to-Share Convenience
Say goodbye to meeting notes once and for all. Our digital smart boards allow you to easily capture on-screen image data—including notations—for direct email distribution.
2. Unparalleled Interactivity
Share screen content with dozens of devices for a truly collaborative meeting experience. Push files on-screen from a remote workstation or write directly to the board. Our multi-touch displays allow several users to contribute simultaneously—in person and over the network.
3. Crystal Clear Quality
Impress your audience with a 4K ultra high definition display. Our interactive whiteboards feature the latest LCD and LED technology to ensure that your presentation is every bit as polished as you are.
Applications:
Business shops: chain stores, cooperate building, shopping mall, hotel and restaurant etc.
Government or non-profit organization: bank, security department, insurance company, government, book stores, museum and school etc.
Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
Traffic department: metro station, traffic control room, airport etc.
Specifications:
| Panel Data | Size | 86 inch |
| Native Resolution | 3840X2160 | |
| Display Ratio | 16:09: | |
| Display Color | 16.7M | |
| Contrast Ratio | 4000:1 | |
| Brightness | 500cd/m2 | |
| Dot Pixel | 0.1645(H)X0.4935 (V) mm | |
| Active Area | 1895.04(H)X1065.96(V) mm | |
| View Angle | 178°/178°(L+R/U+D) | |
| Response Time | 8ms | |
| Lifetime | 60000 hours | |
| General Information | Material | Fine Aluminum + Glossy glass |
|
Main Interfaces
|
HDMI x 1 | |
| RJ45×1 | ||
| USB×2 | ||
| SD×1 | ||
| WiFi (802.11 b/g/n) | ||
| Color | Silver, Black,, White or Customized | |
| Control way | IR Remote Control | |
| Speaker | 10W x 2 | |
| Power Supply | AC 110 ~ 240V, 50/60 Hz | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Touch Data | Touch screen point | Photon waving surface sensing true 10 point touch(up to 40 point) |
| Resolution | 32768*32768 | |
| Scan speed | 50P/S | |
| Position accuracy | ±1.5mm | |
| Glass above the panel | Glossy glass 4 mm | |
| Response time | 4ms | |
| Power Consumption | 110mA | |
| Interface | USB |
Note:
1. OEM/ODM order is available, for various functionalities, designs , shapes etc.
2. Warranty time: Standard 12 months (24 months/36 months warranty for option).
3. The details are subject to upgraded without notice in advance.
