Product Details:
|
| Materia: | Metal Case + Toughened Glass Panel | Optional Fun: | Multi Touch Screen |
|---|---|---|---|
| Brightness: | 500cd/㎡ | Response Time: | 8ms |
| Viewing Angle: | 178 /178 | Contrast Ratio: | 4000:1 |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Native Resolution: | 3840X2160 | Size: | 55 Inch |
| High Light: | 55 Inch Open Frame LCD Touchscreen,UHD Open Frame LCD Touchscreen,Digital Display Screen 500cd/m2 |
||

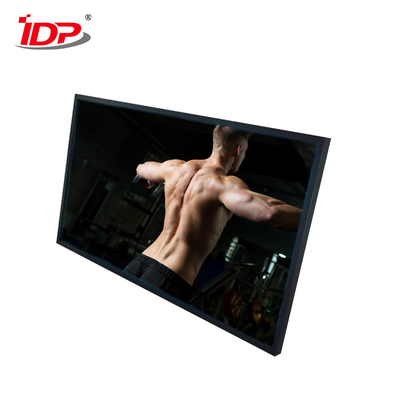

55" Open Frame LCD Touchscreen Commercial Grade with UHD resolution
The IDP1590L 55-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Main Features:
1. Free standing style, easy to installation.
2. High brightness LCD panel.
3. 4K native resolution, vivid and ultimate visual experience.
4. LED backlight, energy saving and environment friendly.
5. Commercial and industrial grade quality, working 24 hours/7 days.
6. Industrial A grade design, durable and stable performance.
7. Multi-touch screen, accurate positioning and fast response.
The More Details Of 55 inch Digital Signage
| PANEL | |
| Screen Size:55" | Brightness: 500cd/m2 |
| Native Resolution: 3,840 x 2,160 (UHD) | Active Area:1209.6(H)×680.4(V) mm |
| Response Time: 8ms | Lifetime (Typ.): 60000 hours |
| CONNECTIVITY | |
| Input:VGA x 1 ,HDMI x 1 ,USB x 4, AV x 1 | Output: DP, External Speaker out |
| External Control: RS232C, RJ45, IR Receiver, Pixel Sensor | |
| POWER | |
| Power Supply: AC 110 ~ 240V, 50/60 Hz | |
| WARRANTY | |
| Limited Warranty: 1 years/24 months |
|
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| Network Data(*) | Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| OS | Android 5.1 | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
Applications:
Business Shops: Shopping mall, chain stores, cooperate building, hotel and restaurant etc.
Government or non-profit organization: bank, security department, insurance company, government, book stores, museum and school etc.
Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
Traffic department: metro station, traffic control room, airport etc.
Elevator, park, window etc.
Notes: 1. The details are subject to upgraded without notice in advance.
2. OEM and ODM are all welcome.
