Product Details:
|
| Size: | 43 Inch | Contrast Ratio: | 4000:1 |
|---|---|---|---|
| Brightness: | 3000cd/m² | Response Time: | 8ms |
| Viewing Angle: | 178°/178°(L+R/U+D) | Power Supply: | AC 110 ~ 240V, 50/60 Hz |
| Backlight: | LED Backlight | Resolution: | 3840X2160 |
| High Light: | LED Backlight LCD Digital Signage,FHD LCD Digital Signage,Auto Brightness Control Outdoor Digital Signage |
||
43 Inch Outdoor FHD LCD Digital Signage Deutsch,LED Backlight Auto Brightness Control
The ID431APF is a 46 inch ultra high brightness digital signage deutsch LCD featuring FHD resolution. With a maximum brightness rating of 3,000 cd/m² this display produces a sunlight readable image which may easily be seen in storefront windows and other brightly lit indoor environments. The ID431APF features a fanless, proprietary thermal management system and a unique local dimming LED backlit technique for incredible, high contrast picture quality.
LED back lighting is both more energy efficient and provides a much brighter image than traditional CCFL backlights. Due to the compact nature of LEDs, displays are also typically thinner. DynaScan utilizes a proprietary, patented LED local dimming backlighting technique. Darker areas of an image receive less backlighting than lighter areas resulting in incredible contrast and color.
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
Features:

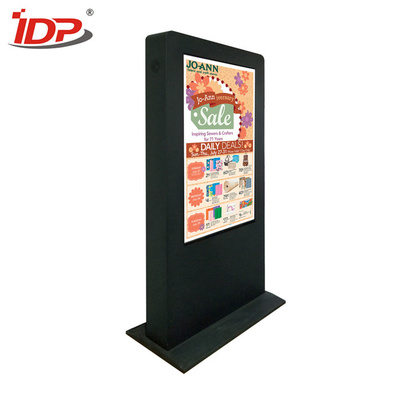

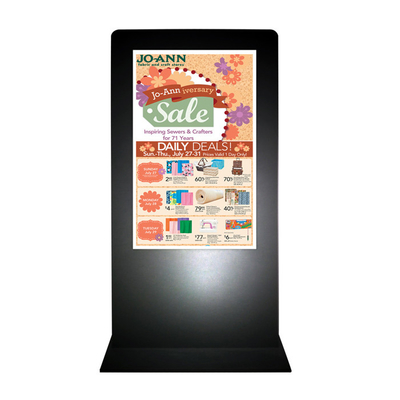

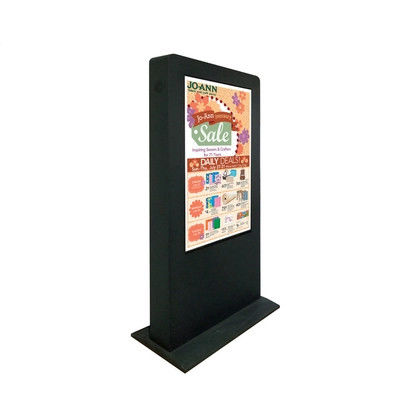

Pictures of 43 Inch Outdoor FHD LCD Digital Signage,LED Backlight Auto Brightness Control
Details of 43 Inch Outdoor FHD LCD Digital Signage,LED Backlight Auto Brightness Control
| Panel Data | Size |
43 inch |
| Panel brand |
Samsung/LG | |
| Surface |
Antiglare, hard coating | |
| Active Area |
941.184(W)X529.416(H) mm | |
| Native Resolution |
3840X2160 | |
| Dot PiXel |
0.1634(H) × 0.4902(V) mm | |
| Responsive Time (ms) |
8 | |
| Contrast Ratio |
4000:1 | |
| Lifetime (hour) |
60000 | |
| Brightness |
3000cd/m² | |
| Voltage (V) |
100-240 | |
Other Parameters |
Installation method |
Floor stand |
| Camera |
Optional | |
| Warranty Period |
1Year for free | |
| Normal Working Temperature |
-20 to 60 Celsius degree | |
| Storage Temperature |
-20 to 60 Celsius degree | |
| Menu Language |
Russian, Germany, English, Spanish, French, etc. | |
| Colour |
White, Black, Silver, or Customized | |
Network Data |
Android |
ARM Cortex-A17 |
| RAM |
2GB(4GB for optional) | |
| Land flash |
8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio |
Integrated HI-FI 100dB Audio Codec | |
| Picture format |
JPG, PNG, JPEG... | |
| TXT |
YES | |
| Main I/O |
HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi |
Built-in Wifi(802.11b/g/n) | |
| Outdoor Features | IP65 | Galvanized steel |
| Surface processing( waterproof, dustproof, anti-theft, anti-reflection, anti-corrosion) |
||
| High brightness sun readable. |
||
| Light transmittance of 97% |
||
| Reflectance is less than 3% |
||
| Separated UV 99% |
||
| Industrial power supply |
||
| Can automatically adjust the brightness |
||
| Cooling system | Intelligent forced air cooling system for option(air-conditional cooling system for optional) |
|
| Meet environment temperature -40+55 Celsius degree, humidity 10%-100% |
||
| Patented cooling system to ensure the LCD screen in direct sunlight without blackening. |
||
| Assembly and testing of aging | High and low-temperature test. |
|
| Waterproof test |
||
| Simulated solar radiation test |
||
| Aging test |
Note:
1. OEM/ODM for various functionalities, designs, shapes, etc.
2. Delivery time: Sample in stock. Bulk order 7 days(TBC).
3. Warranty time: Standard 12 months(24 months/36 months warranty for option)
