Product Details:
|
| Size: | 98 Inch | Native Resolution: | 3840X2160 |
|---|---|---|---|
| Brightness: | 500 Cd/m² | Contrast Ratio: | 4000:1 |
| Dot PiXel: | 0.124(H) X 0.372(V) Mm | Active Area: | 1428.48(H) X 803.52(V) Mm |
| Display Colors: | 16.7M | Response Time: | 8ms |
| Frequency: | 60Hz | Voltage: | 100V-240V |

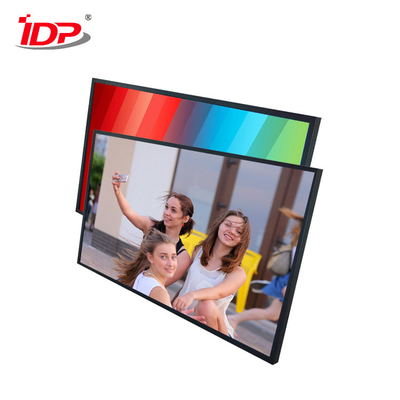

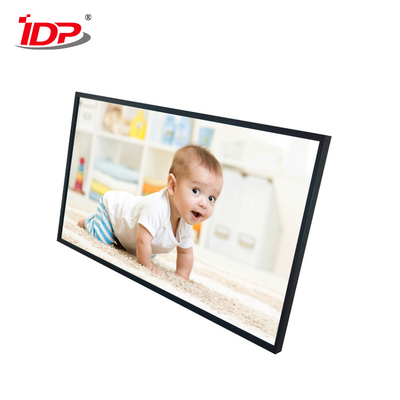

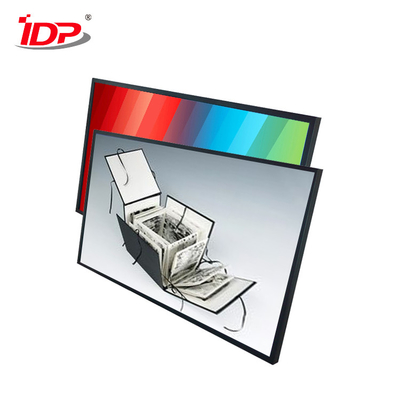

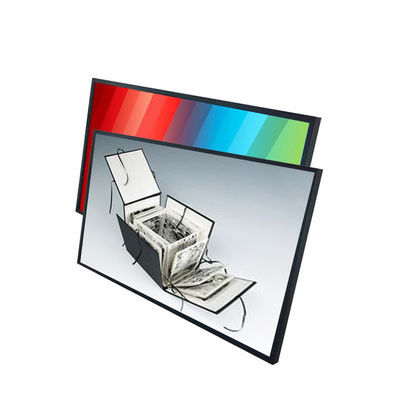

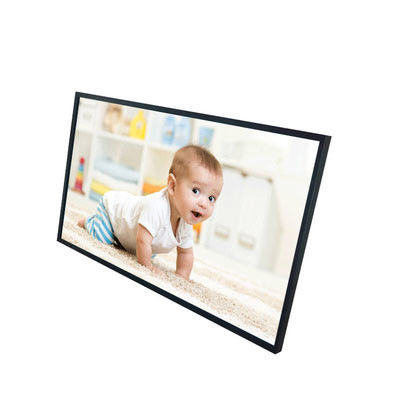

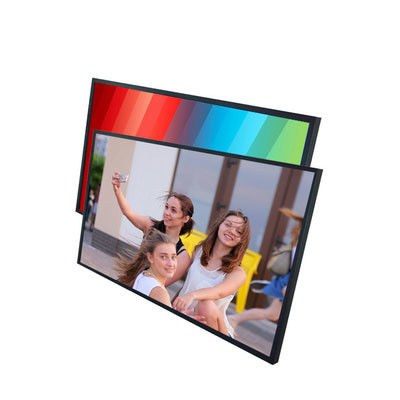

98 inch AR Glass Inch Glass Wall Video Interactive flat panel whiteboard withTouch Screen
As an input device, 98 inch AR Glass Inch Glass Wall Video Interactive flat panel whiteboard withTouch Screen has many advantages, such as ruggedness, fast response, space-saving, easy communication, and so on. As long as users touch the screen gently with their fingers, they can quickly get the information they want, thus making the human-computer interaction more straightforward.
Applications:
Business shops: chain stores, cooperate building, shopping mall, hotel and restaurant etc.
Government or non-profit organization: bank, security department, insurance company, government, book stores, museum and school etc.
Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
Traffic department: metro station, traffic control room, airport etc.
Main Features:
| Panel Data | Screen Size |
98 inch, LED backlight, full new imported original LG panel
|
| Display Ratio |
16:9
|
|
| Native Resolution |
3840X2160
|
|
| Display Color |
16.7M
|
|
| Brightness |
500 cd/m²
|
|
| Contrast Ratio |
4000:1
|
|
| Display mode |
Normally black
|
|
| View Angle |
178°/178°(L+R/U+D)
|
|
| Dot Pitch |
0.124(H) X 0.372(V) mm
|
|
| Active Area |
1428.48(H) X 803.52(V) mm
|
|
| Response Time |
8 ms
|
|
| Lifetime |
60000 hours
|
|
| Voltage |
100V-240V
|
|
| General Information | Material |
Fine Aluminum + Glossy glass
|
| PC Configuration |
Built-in PC, Intel i3, Quad-core 2.9GHz, RAM 4GB, SSD 64GB
|
|
|
VGA x 1
|
||
|
HDMI x 1
|
||
|
USB x 4
|
||
|
AV x 1
|
||
|
RJ45 x1
|
||
|
WiFi(802.11 b/g/n)
|
||
|
Customized(i5/i7, printer, camera, Android OS, 4K, etc)
|
||
| Resolution supported |
640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080, 1920x1200
|
|
| Color |
Silver, Black, White or Customized
|
|
| Speaker |
10W x 2
|
|
| Control way |
IR Remote Control
|
|
| Power Supply |
AC 110 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~40℃
|
|
| Operation Humidity |
20% ~ 80%
|
|
| Operating Altitude |
0~3,000 meters
|
|
| Optional |
Customizable(Rectangular shape, Touch Screen, Camera, Printer, Windows/Linux OS, etc)
|
|
| Touch Data | Touch screen point |
Photon waving surface sensing true 10 point touch(up to 40 points)
|
| Resolution |
32768*32768
|
|
| Scan speed |
50P/S
|
|
| Position accuracy |
±1.5mm
|
|
| Glass above the panel |
Glossy glass 4 mm
|
|
| Response time |
4ms
|
|
| Power Consumption |
110mA
|
|
| Interface |
USB
|
Remarks: The specification is subject to change without notice in advance.
Note:
1. OEM/ODM order is available, for various functionalities, designs , shapes etc.
2. Warranty time: Standard 12 months (24 months/36 months warranty for option).
3. The details are subject to upgraded without notice in advance.
