Product Details:
|
| Size: | 98 Inch | Native Resolution: | 3840X2160 |
|---|---|---|---|
| Contrast: | 4000:1 | Brightness: | 500cd/m² |
| Response Time: | 8ms | Dot PiXel: | 0.124(H) X 0.372(V)mm |
| Active Area: | 1428.48(H) X 803.52(V)mm | View Angle: | 178°(H) / 178°(V) |

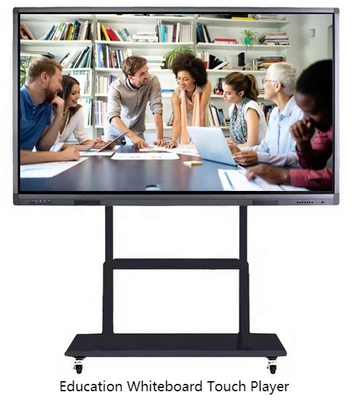

98'' Meetings Collaboration Displays All-in-One Multi-Touch ScreensWith Mobile Wheel
The traditional meeting room has changed significantly over recent years, now facilitating group collaboration work as well as bringing remote workers into the meeting environment in an inclusive way, ensuring meeting equity.
Modern meeting spaces need to feature intuitive conference room solutions that are easily accessible and deliver return on investment. Great audio and video should be a key factor when choosing your meeting room technology solution as well as interactive display technology to support hybrid working environments.
Main features:
1.Confirm Meeting On Your Meeting
Room DisplayNow the Internet conference mode has replaced the traditional conference mode. Using the conference machine to hold meetings is convenient for people's life. It is convenient to turn on and off the machine, and it is also easier to show key points and take notes.
2.End Meeting On Your Meeting Room Display
3.Design Your Meeting Room Display
You probably have your very own look and brand in your company. You might even have a design manual that you need to follow. Of course, your meeting room displays should match your general look, with both brand colors, fonts, and maybe even a company logo.
Design Your Meeting Room Display
Specifications:
| anel Data | Screen Size |
98 inch, LED backlight, full new imported original LG panel
|
| Display Ratio |
16:9
|
|
| Native Resolution |
3840X2160
|
|
| Display Color |
16.7M
|
|
| Brightness |
500 cd/m²
|
|
| Contrast Ratio |
4000:1
|
|
| Display mode |
Normally black
|
|
| View Angle |
178°/178°(L+R/U+D)
|
|
| Dot Pitch |
0.124(H) X 0.372(V) mm
|
|
| Active Area |
1428.48(H) X 803.52(V) mm
|
|
| Response Time |
8 ms
|
|
| Lifetime |
60000 hours
|
|
| Voltage |
100V-240V
|
|
| General Information | Material |
Fine Aluminum + Glossy glass
|
| PC Configuration |
Built-in PC, Intel i3, Quad-core 2.9GHz, RAM 4GB, SSD 64GB
|
|
|
VGA x 1
|
||
|
HDMI x 1
|
||
|
USB x 4
|
||
|
AV x 1
|
||
|
RJ45 x1
|
||
|
WiFi(802.11 b/g/n)
|
||
|
Customized(i5/i7, printer, camera, Android OS, 4K, etc)
|
||
| Resolution supported |
640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080, 1920x1200
|
|
| Color |
Silver, Black, White or Customized
|
|
| Speaker |
10W x 2
|
|
| Control way |
IR Remote Control
|
|
| Power Supply |
AC 110 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~40℃
|
|
| Operation Humidity |
20% ~ 80%
|
|
| Operating Altitude |
0~3,000 meters
|
|
| Optional |
Customizable(Rectangular shape, Touch Screen, Camera, Printer, Windows/Linux OS, etc)
|
|
| Touch Data | Touch screen point |
Photon waving surface sensing true 10 point touch(up to 40 points)
|
| Resolution |
32768*32768
|
|
| Scan speed |
50P/S
|
|
| Position accuracy |
±1.5mm
|
|
| Glass above the panel |
Glossy glass 4 mm
|
|
| Response time |
4ms
|
|
| Power Consumption |
110mA
|
|
| Interface |
USB
|
1.OEM/ODM for various functionalities, designs , shapes etc.Note:
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
