Product Details:
|
| Size: | 23.6 Inch | Brightness: | 400cd/m² |
|---|---|---|---|
| Native Resolution: | 1920X1080 | Contrast: | 3000:1 |
| Response Time: | 7ms | Dot PiXel: | 0.12725(H)X0.38175(V)mm |
| Active Area: | 521.471(H)X293.184(V)mm | View Angle: | 89/89/89/89(L/R/U/D) |
| Highlight: | 23.6 Inch Indoor Digital Menu Boards,RAM2G+8G Indoor Digital Menu Boards,23.6 Inch restaurant electronic menu |
||

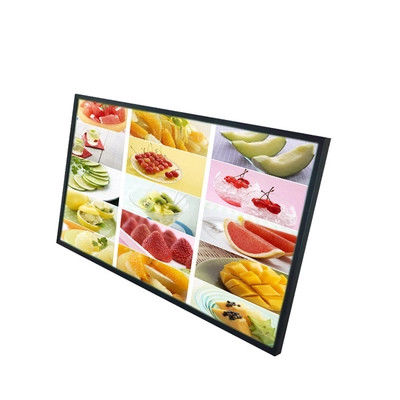

23.6 Inch Indoor High Brightness Digital Menu Board Display
1. High Brightness digital menu board
2. Smart digital menu board
3. Indoor and Outdoor digital menu board
4. Quick-service digital menu board
5. All in one digital menu boards
Details:
1)True Color Calibration, window display
The high-brightness window display has been calibrated to the ultra-high color standard at the factory. This color setting produces a natural looking image which has a correlated color temperature to that of daylight.
2)High Brightness window display
The high brightness window display delivers high brightness for excellent legibility and visibility, even in high ambient light environments. So your content and products can be better communicated to customers. And it can catch your customers' eyes easily and win more details.
Applications:
Business shops: Shopping mall, supermarket, chain stores, cooperate building, hotel and restaurant etc.
Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
Specifications:
| Parameters | ||
|
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 23.6 inch | |
| Native Resolution | 1920X1080 | |
| Surface | Antiglare, hard coating | |
| Active Area | 521.471(H)X293.184(V)mm | |
| Dot Pitch | 0.12725(H)X0.38175(V)mm | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 3000:1 | |
| Response Time | 5ms | |
| View Angle | 80/80/75/85(L/R/U/D) | |
| Frequency | 60Hz | |
|
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
|
General Information |
Image Resolution | 5000 x 5000 px Max |
| Video Resolution | 1920 x 1080p Max | |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
| Installation | Wall mount | |
Note:
1)More detailed parameters will be displayed on the quotation form.
2)Optional touch settings.
3)The details are subject to upgraded without notice in advance.
