Product Details:
|
| Size: | 32 Inch | Active Area: | 698.4(H) X 392.85(V)mm |
|---|---|---|---|
| Dot PiXel: | 0.12125(H) X 0.36375(V)mm | Contrast: | 4000:1 |
| Brightness: | 450cd/m² | Response Time: | 4ms |
| Life Time: | 60000 Hours | Warranty: | 12 Months |
| High Light: | 450cd/M2 Interactive Digital Menu Board,32 inch Stretched Bar Lcd Display,450nit Stretched Bar Lcd Display |
||

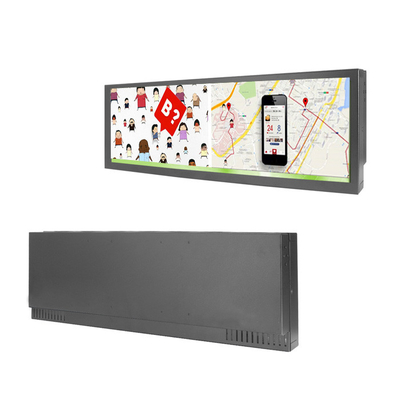

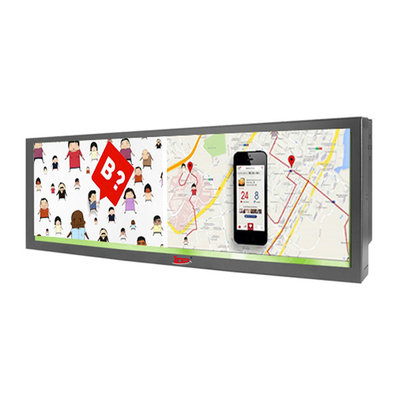

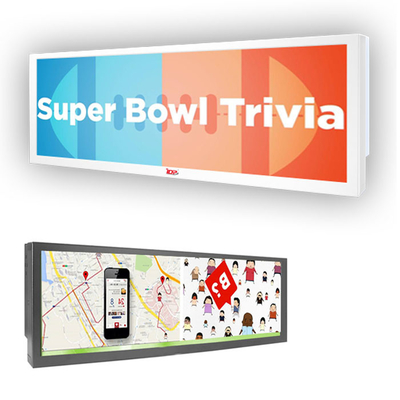

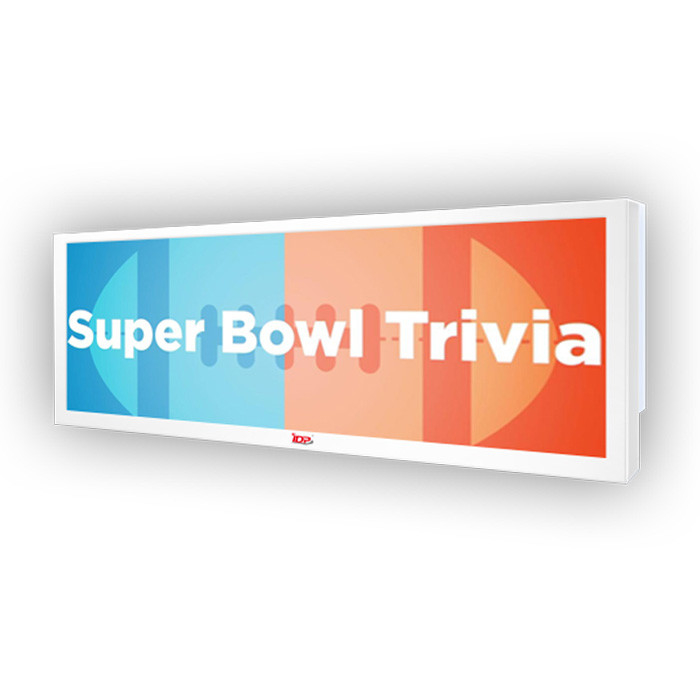

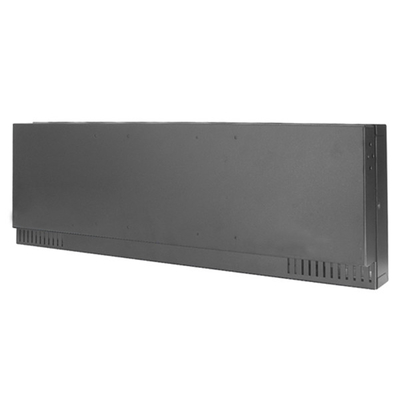

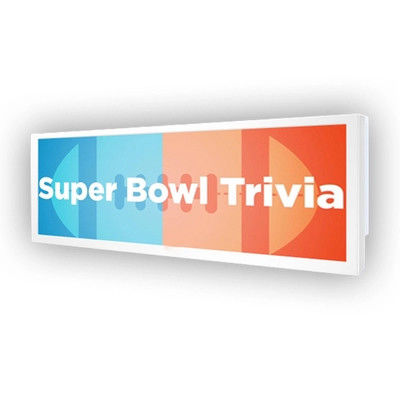

32 Inch Stretched Bar Lcd Display 450cd/M2 Interactive Digital Menu Board
Digital menu boards providehigh-impact, visual and audio messaging, allowing you to strategically reach customers on the spot. Place strategically in your drive-thru, curb-side mobile ordering pick-up locations, outdoor patios and more. Reduce physical contact and improve order efficiency with an all-in-one solution.
Highlights:
Support split screen, one screen window is divided into several sections for different usages.
Scrolling message, the pre-set message can be displayed.
Auto play back advertisement after power on, no need operation manually.
Remotely manage devices in different locations by internet.
Support more apps with the upgrade of Android OS.
OEM/ODM design: digital signage enclosure, functions etc.
Specifications:
| Parameters | ||
|
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 32 inch | |
| Native Resolution | 1920X1080 | |
| Surface | Antiglare, hard coating | |
| Active Area | 698.4(H) X 392.85(V)mm | |
| Dot Pitch | 0.12125(H) X 0.36375(V)mm | |
| Brightness | 450 cd/m² | |
| Contrast Ratio | 4000:1 | |
| Response Time | 4ms | |
| View Angle | 80/80/75/85(L/R/U/D) | |
| Frequency | 60Hz | |
|
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
|
General Information |
Image Resolution | 5000 x 5000 px Max |
| Video Resolution | 1920 x 1080p Max | |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
| Installation | Wall mount | |
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
*The details are subject to upgraded without notice in advance.
