Product Details:
|
| Size: | 55 Inch | Brightness: | 500cd/m² |
|---|---|---|---|
| Response Time: | 8ms | Frequency: | 60Hz |
| Contrast: | 4000:1 | Native Resolution: | 3840X2160 |
| Dot PiXel: | 0.210(H) X 0.630(V)mm | Active Area: | 1209.6(H) X 680.4(V)mm |
| Highlight: | 60Hz 55 Inch Digital Signage Kiosk,8ms Digital Advertising Display Screens,55 Inch Digital Signage Kiosk 8G |
||

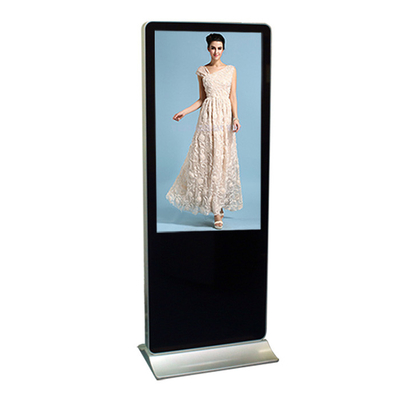

60Hz 55 Inch Digital Signage Kiosk 8G 8ms Digital Advertising Display Screens
With the improvement and popularization of Android OS, the light of real network digital signage appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices they locate. The stable Android OS makes the device work 7/24 hours safe and sound.
What’s more the Android system provides an access to users which make it possible to customize personalized applications.
Applications for 55 inch smart industrial interactive digital kiosk:
shopping street, plaza, gas station, entrance of store, university, industrial park, sports event field, citizen park, scenic spot, CBD area etc.
Main features of touch screen totem:
Smart forced air cooling system or air-conditioner system to ensure stable and reliable performance.
Support split screen, one screen window is divided into several sections for different usages.
Easy upgraded if the advertisement business layout changes.
Remotely manage devices in different locations by internet.
Suitable for various kinds of outdoor environment, such as snow, desert, shore etc, and support operation temperature from -40 Celsius to +55 Celsius.
Specifications of smart touch screen digital signage display:
| Parameters | ||
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 3840X2160 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1209.6(H) X 680.4(V)mm | |
| Dot Pitch | 0.210(H) X 0.630(V)mm | |
| Brightness | 500 cd/m² | |
| Contrast Ratio | 4000:1 | |
| Response Time | 8ms | |
| View Angle | 178°(H) / 178°(V) | |
| Frequency | 60Hz | |
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
General Information |
Image Resolution | 5000 x 5000 px Max |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
|
Touch Data |
Touch screen piont | 2,6,10,16,20,32,40,50,100 |
| Resolution | 32768*32768 | |
| Scan speed | 50P/S | |
| Position accuracy | ±1.5mm | |
| Glass above the panel | Glossy glass 4 mm | |
| Respone time | 4ms | |
| Power Consumption | 110MA | |
| Interface | USB | |
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
*The details are subject to upgraded without notice in advance.
