Product Details:
|
| Panel Brand: | For Samsung/LG | Size: | 55 Inch |
|---|---|---|---|
| Native Resolution: | 1920X1080 | Aspect Ratio: | 16:9 |
| Surface: | Antiglare, Hard Coating | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500cd/m2 |
| Contrast Ratio: | 4000:1 | Display Colors: | 16.7M(8-bit) |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Backlight: | LED Backlight | ||
| High Light: | Touch Screen Kiosk 55 Inch,Kiosk 55 Inch Multi Touch PC,1920X1080P Touch Screen Kiosk |
||

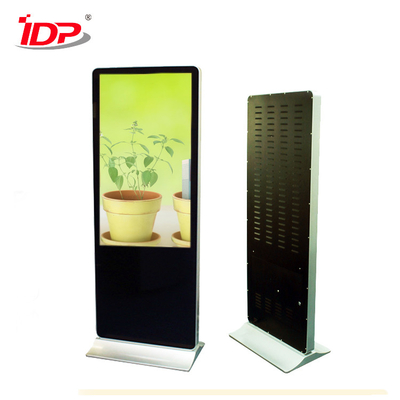

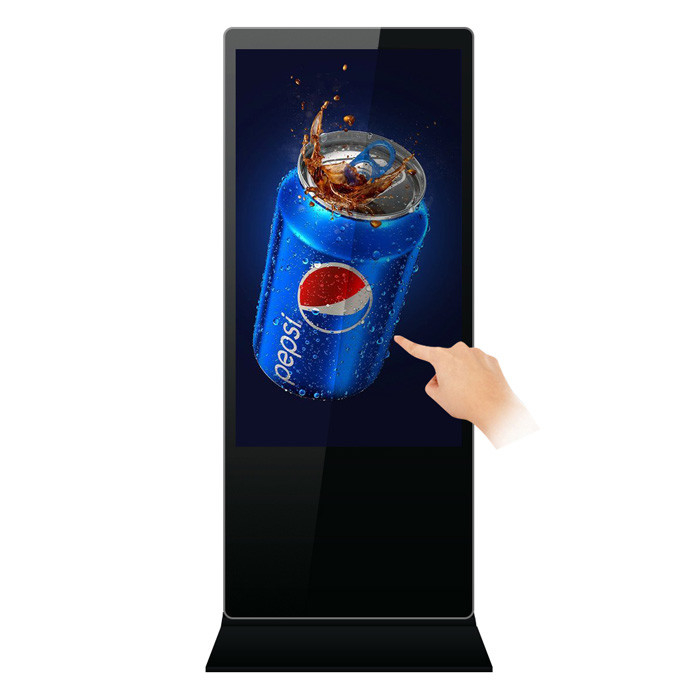

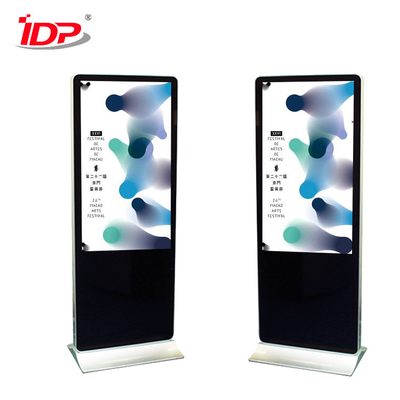

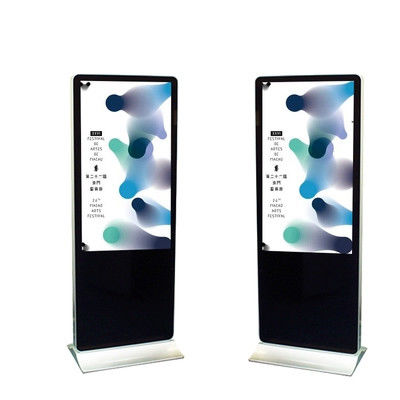

55 inch All in one Multi-touch PC
1.All-in-one Multi-touch Display
2.Multi-touch Whiteboard All in one
3.All in one PC with Multi-touch Screen
This is all-in-one package, including large size commercial monitor, multi-touch screen and built-in solution based hardware, such as Windows-based solution or Android-based solution. Commercial displays are large screens with HDMI/DVI/VGA input, which can be extended to more types of audio and video inputs. Multi-touch screens are used in various interactive applications, such as LCD interactive whiteboards, touch screen query systems , path finding systems, etc. Built-in solutions include Windows-based solutions, Android-based solutions, etc.
All in one Multi-touch PC
1. Large size lcd monitor is made of industrial lcd panel which has wide view angle, high brightness, durable stable performance and long life time. In theory the panel life time is more than 6 years, working 24/7. This is different from personal usage monitor.
2. The built-in solution is suitable for different types of interactive touch screens.
3. Available sizes are 32 inches, 42 inches, 46 inches, 55 inches, 60 inches, 65 inches, 70 inches, 80 inches, 84 inches, 98 inches, etc.
Main features:
1. All-in-one solution, easy to use.
2. HDMI/VGA and expandable inputs/outputs.
3. High definition 1920 x 1080 (1080P) native resolution.
4. Fast and quick touch response for excellent user experience.
5. Wide view angle, high brightness and industrial design.
6. LED backlight with low power consumption, environment friendly.
7. All in one multi-touch display available for different applications.
Applications:
Specifications:
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:09 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:01:00 | |
| Display Colors | 16.7M(8-bit) | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Backlight | LED backlight |
| General Information | Built-in PC | Intel i3/i5/i7(Android OS based is for optional) |
| Main I/O port | HDMI x 1 | |
| USB x 4 | ||
| VGAx 1 | ||
| Resolution supported | 640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080 | |
| Color | Silver, Black, White or Customized | |
| Speaker | 10W x2 | |
| Control way | IR Remote Control | |
| Menu Language | English, Germany, Russian, French, Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters |
| ouch Screen | Touch technology | Infrared Touch |
| Touch point | 2 point,6 point,10 point,16 point,20 point, 32 point,40 point,50point,100 point. | |
| Touch method | Finger,pen or non-transparent object | |
| Resolution | 4096 x 4096 | |
| Positioning accuracy | ±1.5mm | |
| Touch life time | Unlimited in theory | |
| Anti-light Interference | Yes | |
| Waterproof | Optional | |
| OS Compatible | Win 2000/XP/Win 7/Win 8/Vista/Limux/Android(for optional) |
Remarks: The specification is subject to change without notice in advance.
