Product Details:
|
| Panel Brand: | For Samsung/LG | Size: | 32 Inch |
|---|---|---|---|
| Native Resolution: | 1920X1080 | Aspect Ratio: | 16:9 |
| Surface: | Antiglare, Hard Coating | Active Area: | 698.4(H) X 392.85(V) Mm |
| Dot Pitch: | 0.12125(H) X 0.36375(V) Mm | Brightness: | 450cd/m² |
| Contrast Ratio: | 5000:1 | Display Colors: | 16.7M(8-bit) |
| Response Time: | 4ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Backlight: | LED Backlight | ||
| High Light: | High Sensitive 32 Inch Kiosk,4ms All In One Pc Touch Screen 32 Inch,450cd All In One Pc Touch Screen 32 Inch |
||

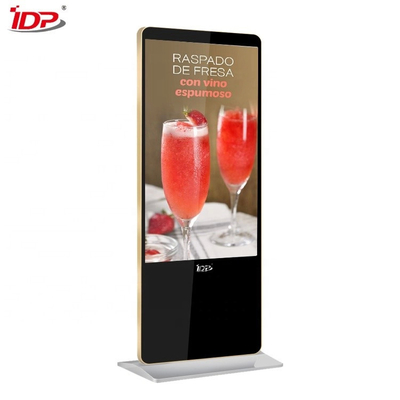

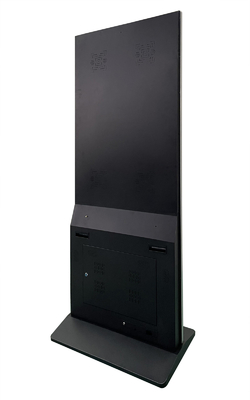

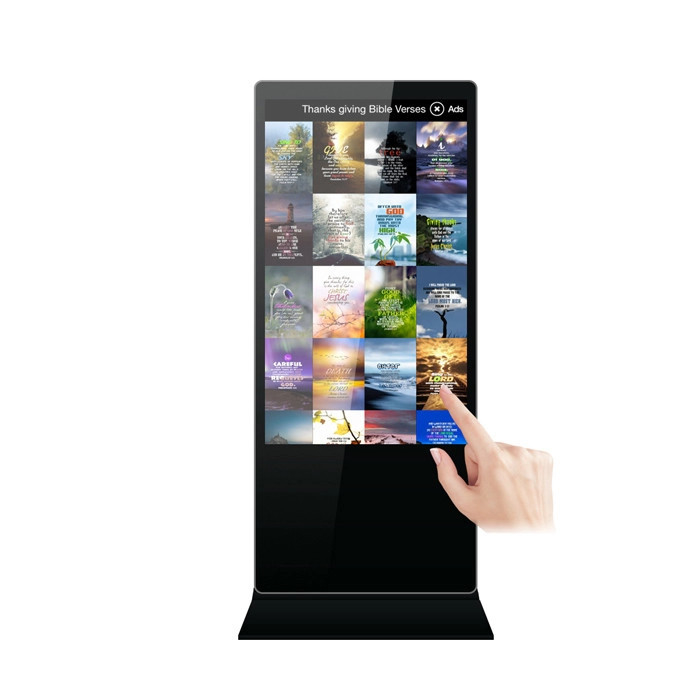

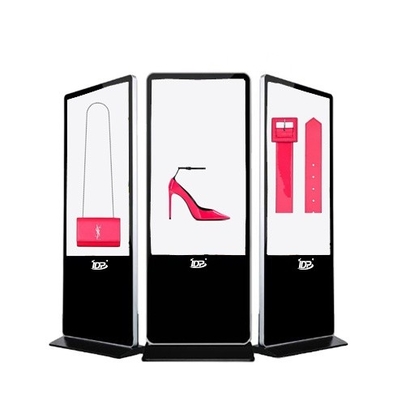

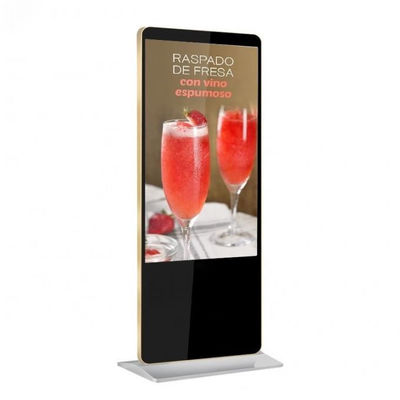

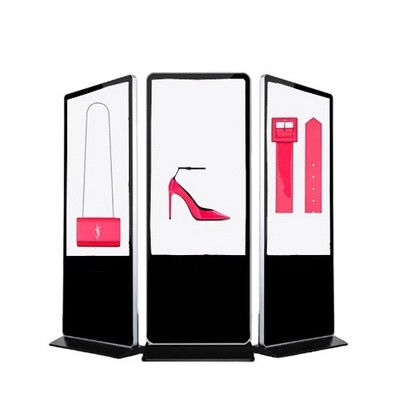

450cd 4ms All In One Pc Touch Screen 32 Inch Touch High Sensitive
As an input device, the All in one Multi-touch Display has many advantages such as sturdiness and durability, fast response, space saving, and easy communication. Users only need to touch the screen of the machine lightly with their fingers to quickly get the information they want, which makes the human-computer interaction more straightforward.
All in one Multi-touch Display
1. The touch all-in-one machine can dynamically display the three-dimensional model of the object, and has a good interactive experience function
2. Touch technology, support USB interface touch screen, support handwriting input function, and cooperate with other software to realize electronic whiteboard, drawing and other interactive functions.
3. Adjustable touch dedicated base.
4. Multi-point touch, maximum support 36-point touch, ten fingers can be used at the same time
5. Professional design of 30°—90°, large elevation angle, adjustable, touch type special base, allowing users to adjust the best use angle as they like.
6. Resistive, capacitive, infrared, optical, sonic touch screen, precise positioning.
7. Touch without drift, automatic correction, precision operation possible.
8. High definition, no glass work. The environmental requirements are not high, and the sensitivity is high. Suitable for working in various environments.
Main features:
1. All-in-one solution, easy to use.
2. HDMI/VGA and expandable inputs/outputs.
3. High definition 3840 x 2160 (4K) native resolution.
4. Fast and quick touch response for excellent user experience.
5. Wide view angle, high brightness and industrial design.
6. LED backlight with low power consumption, environment friendly.
7. All in one multi-touch display available for different applications.
Applications:
Specifications:
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 32 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:09 | |
| Surface | Antiglare, hard coating | |
| Active Area | 698.4(H) x 392.85(V) mm | |
| Dot Pitch | 0.12125(H) x 0.36375(V) mm | |
| Brightness | 450cd/m2 | |
| Contrast Ratio | 5000:01:00 | |
| Display Colors | 16.7M(8-bit) | |
| Response Time | 4ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Backlight | LED backlight |
| General Information | Built-in PC | Intel i3/i5/i7(Android OS based is for optional) |
| Main I/O port | HDMI x 1 | |
| USB x 4 | ||
| VGAx 1 | ||
| Resolution supported | 640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080 | |
| Color | Silver, Black, White or Customized | |
| Speaker | 5W/10W x2 | |
| Control way | IR Remote Control | |
| Menu Language | English, Germany, Russian, French, Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters |
| Touch Screen | Touch technology | Infrared Touch |
| Touch point | 2 point,6 point,10 point,16 point,20 point, 32 point,40 point,50point,100 point. | |
| Touch method | Finger,pen or non-transparent object | |
| Resolution | 4096 x 4096 | |
| Positioning accuracy | ±1.5mm | |
| Touch life time | Unlimited in theory | |
| Anti-light Interference | Yes | |
| Waterproof | Optional | |
| OS Compatible | Win 2000/XP/Win 7/Win 8/Vista/Limux/Android(for optional) |
Remarks: The specification is subject to change without notice in advance.
