Product Details:
|
| Panel Brand: | For Samsung/LG | Size: | 55 Inch |
|---|---|---|---|
| Native Resolution: | 1920X1080 | Aspect Ratio: | 16:9 |
| Surface: | Antiglare | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500cd/m² |
| Contrast Ratio: | 3000:1 | Display Colors: | 16.7M(8-bit) |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Frequency: | 60Hz | ||
| Highlight: | 500nits Samsung 55 Inch Video Wall Display,500nits lg 55 inch video wall display,Super Narrow Bezel Video Wall |
||

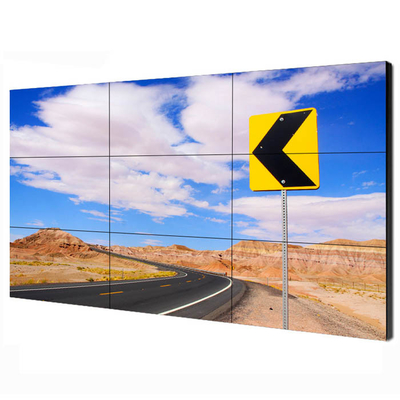

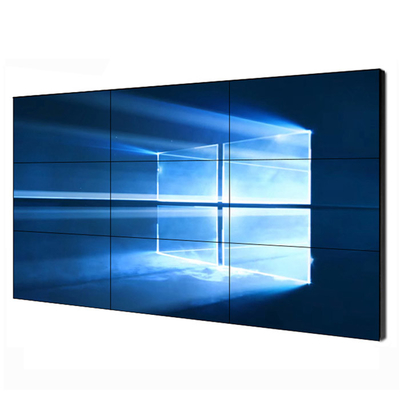

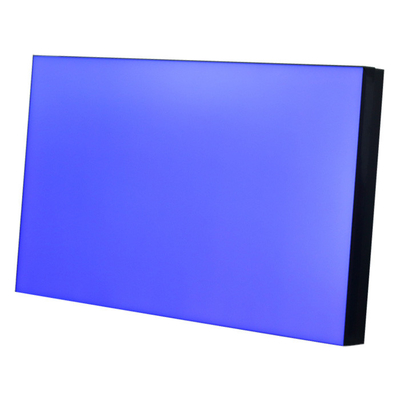

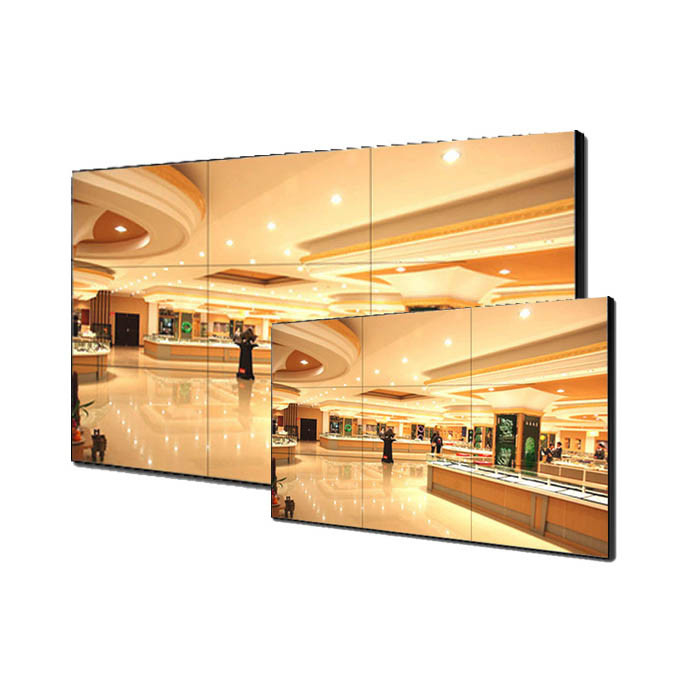

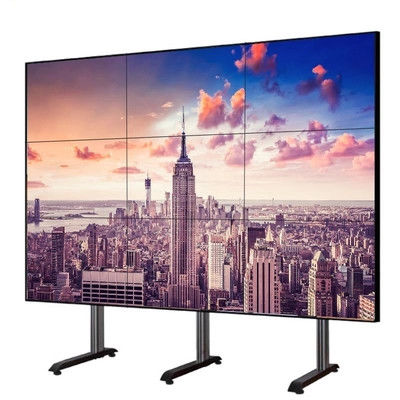

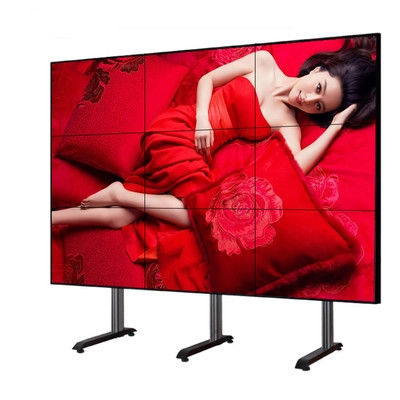

55 Inch Ultra Narrow Bezel Video Wall
LCD video wall (LED backlight) is used to display the display window on a large screen.
Take the traffic control room as an example. The official wanted to know the real traffic flow in a certain area. On-site information is presented on a screen on the wall. The display area on the wall is about 10 meters X 3 meters. There are 60 cameras on site. Each camera tells the situation of each work site. How to achieve this demand?
The video wall can do this. For a 10m×3m display wall, it can be divided into 60 sub-screen windows (each sub-screen is a display). Input 60 signals from the camera to the video wall (60 displays). Now you can see 60 work sites on the video wall. If you want to see the situation of a work site clearly, you only need to select the corresponding monitor, and then only the single monitor will be displayed in the entire video wall area. It is 10 meters X 3 meters. How clear! The most important thing is that the gap between the two displays is very small, which does not reduce the viewing effect.
The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.
LCD Video Wall:
1. LCD splicing screen has a long barrier-free time and low maintenance cost
2. High resolution, bright picture
3. Large viewing angle
4. Low power consumption and low heat generation
5. Long life and low maintenance cost
6. Innovation and advancement
7. Ultra-thin, lightweight and economical
Main Features:
1. 55 inch ultra narrow bezel video wall, bezel-to-bezel width is as low as 3.5mm, by which you can hardly see the gap when the video wall presents a display window.
2. High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
3. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
4. The picture on the video wall is uniform because of led backlight and the light compensation point technology.
***Available size: 55 inch; ultra narrow 46 inch video wall display unit(bezel-to-bezel width 3.5 mm) is for option.
Specifications:
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:09 | |
| Surface | Antiglare | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 3000:01:00 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz |
| General Information | Bezel-to-bezel width | 3.5mm(ultra narrow bezel video wall) |
| Inputs | VGA x1 | |
| HDMI x1 | ||
| DVI x1 | ||
| Video/Audio x1 | ||
| RS232 x1 | ||
| Outputs | RS232 x1 | |
| Optional | DP in/DP out | |
| Image Resolution | 5000 x 5000 px Max | |
| Video Resolution | 1920 x 1080p Max | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | On the wall, on the floor, in the cabinet. |
Remarks: The specification is subject to change without notice in advance.
