Product Details:
|
| Panel Brand: | For Samsung/LG | Size: | 55 Inch |
|---|---|---|---|
| Native Resolution: | 1920X1080 | Aspect Ratio: | 16:9 |
| Surface: | Antiglare | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500cd/m² |
| Contrast Ratio: | 3000:1 | Display Colors: | 16.7M(8-bit) |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Frequency: | 60Hz | ||
| High Light: | ID55E 55 Inch LCD Video Wall,700cd/M2 55 Inch LCD Video Wall,LG 3x3 Video Wall |
||

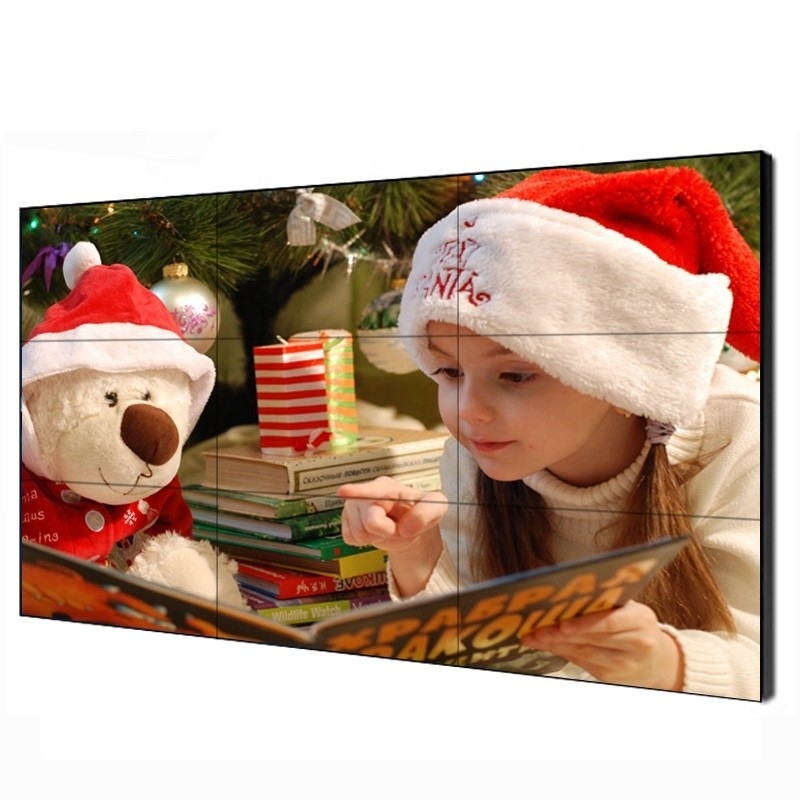

ID55E 700cd/M2 55 Inch LCD Video Wall Display LG 3x3 Video Wall
55 inch lcd video wall(LED backlight) is used to show display window in large scale size screen.
For example, in the traffic control room the officer wants to know the real traffic flow in a certain area. The display area on a wall is about 10 meters X 3 meters. There are 60 on-site cameras. Each camera tells the situation of each working site. How to realize this need?
The video wall can do this. For the 10 meters X 3 meters display wall, it can be divided into 60 sub-screen windows(each sub-screen is a single display). Input 60 signals from the camera into the video wall(60 displays). Now you can see the 60 working sites on the video wall. If you want to see clearly the situation in one working site, just choose the corresponding display and then the whole area of the video wall only shows this single display. It is 10 meters X 3 meters. How clear it is! The most important is that the gap between two displays is pretty narrow, which doesn’t decrease the view effect.
The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.
Main Features:
1. 55 inch lcd video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers as 5.5mm, 5.3mm.
It is said Samsung will release 3.5mm display in 2014. If that comes true, it will be a ground-breaking improvement of lcd video wall.
2. High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
3. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
4. The picture on the video wall is uniform because of led backlight and the light compensation point technology.
***Available size: 46 inch, 47 inch, 55 inch.
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:09 | |
| Surface | Antiglare | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 3000:01:00 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz |
| General Information | Bezel-to-bezel width | 5.5mm |

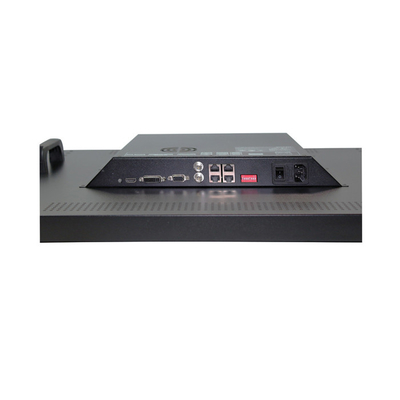

| Inputs | VGA x1 | |
| HDMI x1 | ||
| DVI x1 | ||
| Video/Audio x1 | ||
| RS232 x1 | ||
| Outputs | RS232 x1 | |
| Optional | DP in/DP out | |
| Image Resolution | 5000 x 5000 px Max | |
| Video Resolution | 1920 x 1080p Max | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | On the wall, on the floor, in the cabinet. |
Remarks: The specification is subject to change without notice in advance.
