Product Details:
|
| Size: | 32 Inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Dot Pitch: | 0.0777(H)X0.2331(V)mm | Active Area: | 596.736(H)X335.664 (V)mm |
| Contrast Ratio: | 3000:1 | Brightness: | 450 Cd/m² |
| Response Time: | 12 Ms | Display Ratio: | 16:9 |
| Material: | Fine Aluminum + Tempered Glass 4mm | Life Time: | 60000 Hours |

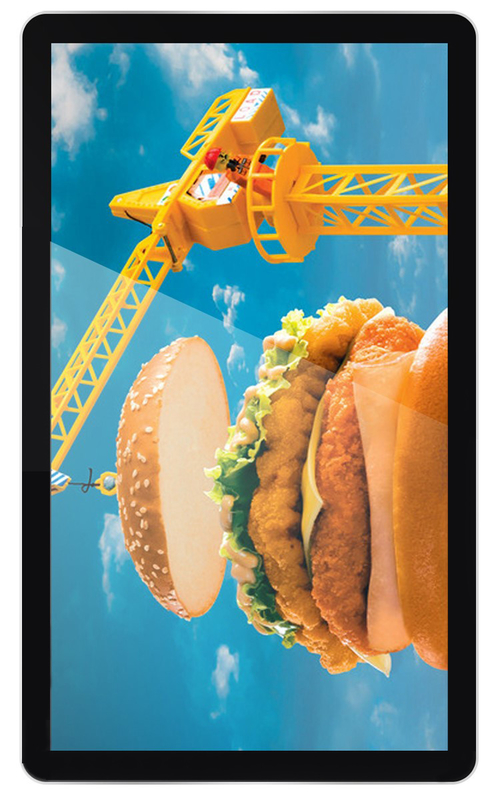

32'' Network Digital Menu Boards Vertical Mounting With Anti-reflect Glass
Purpose-built for demanding hospitality and QSR environments and constant commercial use, IDP’s network digital menu boards feature high-resolution IPS panels with LED backlights.
The high-brightness displays feature a wide viewing angle, and an exclusive template library as standard to present customers with eye-catching content. Multi-screen synchronisation and built-in Wi-Fi also enable instant content updates regardless of location. All menu boards feature low power consumption and a built-in power timer to further increase efficiency.
Our network digital menu boards are available in a range of sizes, from 32” to 55”, ensuring the best possible fit for your hospitality or QSR environment. While designed for hospitality, products in this range can also be deployed in other consumer environments – including retail, leisure, banking and healthcare.
Main features:
Specifications:
| Parameters | ||
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 32 inch | |
| Native Resolution | 1920X1080 | |
| Surface | Antiglare, hard coating | |
| Active Area | 596.736(H)X335.664 (V)mm | |
| Dot Pitch | 0.0777(H)X0.2331(V)mm | |
| Brightness | 450 cd/m² | |
| Contrast Ratio | 3000:1 | |
| Response Time | 12ms | |
| View Angle | 178°(H) / 178°(V) | |
| Frequency | 60Hz | |
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
General Information |
Image Resolution | 5000 x 5000 px Max |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
