Product Details:
|
| Size: | 55 Inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Surface: | Antiglare, Hard Coating |
| Active Area: | 1209.6(H) X 680.4(V) Mm | Dot Pitch: | 0.210(H) X 0.630(V) Mm |
| Brightness: | 500cd/m² | Contrast Ratio: | 4000:1 |
| Display Colors: | 16.7M(8-bit) | Response Time: | 8ms |
| View Angle: | 89/89/89/89(L/R/U/D) | Frequency: | 60Hz |
| High Light: | H.264 Floor Standing LCD Advertising Display,FHD Floor Standing LCD Advertising Display,500cd/m2 LED Backlight Display |
||

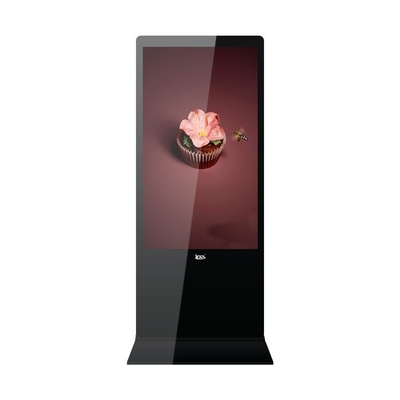

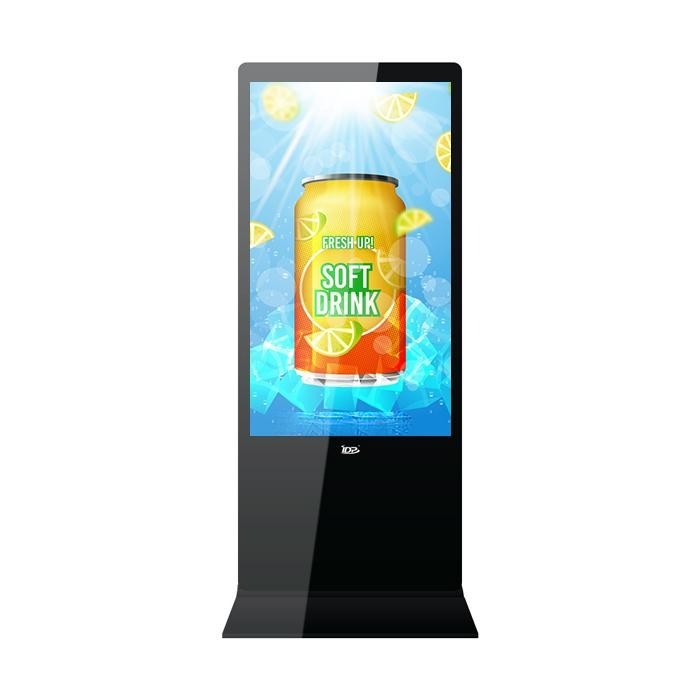

55 inch Floor Standing LCD Advertising Display LED Backlight Multiple Languages
Main features:
1. Auto play back advertisement after power on, no need operation manually.
2. Support split screen, one screen window is divided into several sections for different usages.
3. Scrolling message, the pre-set message can be displayed.
4. Play HD 1080P videos and pictures.
5. Remotely manage devices in different locations by internet(*).
6. Support online video dreaming(*).
7. Easy upgraded if the advertisement business layout changes(*).
8. Support more apps with the upgrade of Android OS(*).
9. Optional functions:PCAP touch, 4G, printer, camera, high brightness, real 4k, customized Android applications(*)
10. OEM/ODM service: digital signage enclosure, functions etc.
11. Available size:22 inch, 24 inch, 26 inch, 32 inch, 42 inch, 46 inch, 47 inch, 55 inch, 65 inch, 70 inch, 75 inch.
Applications:
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| Network Data(*) | Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| OS | Android 5.1 | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
| General Information | Image Resolution | 5000 x 5000 px Max |
| Video Resolution | 1920 x 1080p Max | |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20 ℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | Free Standing | |
FHD H.264 Floor Standing LCD Advertising Display LED Backlight Multiple Languages
At the beginning people went to change the advertisement in each digital signage(device, hereinafter) one by one. Assuming there are 800 devices, it will be time-and-labor consuming. In order to solve this problem, one embedded solution came out. It connected the devices together to a server by wifi – network lcd advertising display. Actually it was not good enough, especially when the wifi signal is weak or there are too many devices.
With the improvement and popularization of Android OS, the light of real network digital signage appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices they locate. The stable Android OS makes the device work 7/24 hours safe and sound.
What’s more the Android system provides an access to users which make it possible to customize personalized applications.
Remarks: 1. (*) means the functions are for network version.
2. The specification is subject to change without notice in advance.
