Product Details:
|
| Size: | 46inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Surface: | Antiglare |
| Active Area: | 1018.08(H) X 572.67(V) Mm | Dot Pitch: | 0.17675(H) X 0.53025(V) Mm |
| Brightness: | 2500cd/m² | Contrast Ratio: | 4000:1 |
| Display Colors: | 16.7M(8-bit) | Response Time: | 6ms |
| View Angle: | 89/89/89/89(L/R/U/D) | Frequency: | 60Hz |
| High Light: | 500Cd/M2 Network Digital Signage,Network Digital Signage Outdoor,500Cd/M2 Floor Standing Digital Signage |
||

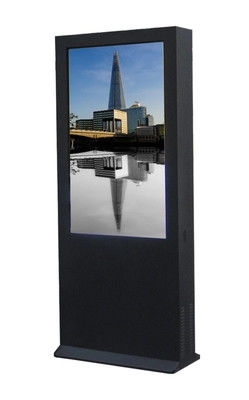

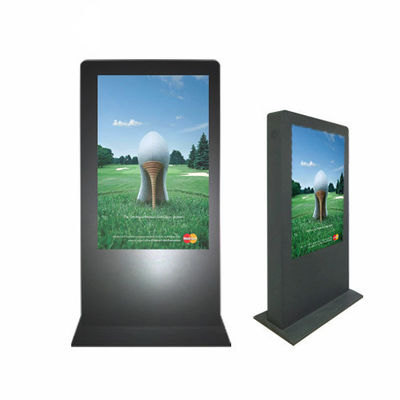

High Brightness 2500Cd/M2 Network Digital Signage Outdoor 46 Inch Floor Standing
At the beginning people went to change the advertisement in each high outdoor brightness digital signage(device, hereinafter) one by one. Assuming there are 800 devices, it will be time-and-labor consuming. In order to solve this problem, one embedded solution came out. It connected the devices together to a server by wifi – network lcd advertising display. Actually it was not good enough, especially when the wifi signal is weak or there are too many devices.
With the improvement and popularization of Android OS, the light of real network freestanding digital kiosk appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices locate. The stable Android OS makes the device work 7/24 hours safe and sound.
What’s more, the Android floor standing system network provides an access to users which make it possible to customize personalized applications. Users can define their own styles advertisement.
Main features:
1. Auto play back advertisement after power on, no need operation manually.
2. Support split screen, one screen window is divided into several sections for different usages.
3. Scrolling message, the pre-set message can be displayed.
4. Play HD 1080P videos and pictures.
5. Remotely manage devices in different locations by internet(*).
6. Support online video dreaming(*).
7. Easy upgraded if the advertisement business layout changes(*).
8. Support more apps with the upgrade of Android OS(*).
9. Optional function:PCAP touch, 4G, printer, camera, high brightness, real 4k, customized Android applications(*)
10. OEM/ODM service: digital signage enclosure, functions etc.
11. Available size:22 inch, 24 inch, 26 inch, 32 inch, 42 inch, 46 inch, 47 inch, 55 inch, 65 inch, 70 inch, 75 inch.
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 46 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare | |
| Active Area | 1018.08(H) x 572.67(V) mm | |
| Dot Pitch | 0.17675(H) x 0.53025(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M | |
| Response Time | 6ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| Network Data(*) | Android | ARM Cortex-A7 Dual Core |
| RAM | 1GB | |
| Land flash | 4GB | |
| OS | Android 4.1/4.2 or above | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
| General Information | Image Resolution | 5000 x 5000 px Max |
| Video Resolution | 1920 x 1080p Max | |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20 ℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | Floor Stand | |
Applications:
Remarks: 1. (*) means the functions are for network version.
2. The specification is subject to change without notice in advance.
