Product Details:
|
| Product Name: | 1.7mm Ultra-thin Narrow Edge Seamless LCD Video Wall 700nits | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Surface: | Antiglare | Active Area: | 1018.08(H)×572.67(V) Mm |
| Dot Pitch: | 0.17675(H) × 0.53025(V) Mm | Brightness: | 700cd/m2 |
| Contrast Ratio: | 4000:1 | Display Colors: | 16.7M |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Frequency: | 60Hz | Bezel To Bezel Width: | 1.7mm |
| Highlight: | 1.7mm Seamless LCD Video Wall,Antiglare Seamless LCD Video Wall,700nits LCD Video Wall |
||
1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits
LCD splicing wall currently accounts for a large proportion of the video display market. According to different industries, the requirements of users are becoming higher and higher. The built-in function of the LCD splicing wall is becoming more and more powerful. The TV wall processor can combine multiple physical outputs into an ultra-high-resolution display output after resolution superposition, but the screen wall forms a logic display screen with ultra-high resolution, ultra-high brightness, and super large display scale, Complete the display functions of multiple signal sources (network signal, RGB signal, and video signal) in various ways such as windowing, moving and blooming on the screen wall. Multi signal access (NTSC, pal, 480i, 576i, 720I, 1080i, 1080p), m * n full-screen display, split-screen single signal display, any combination of single signal splicing display.
Main Features of 1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits:
Specifications of 1.7mm Ultra thin narrow edge Seamless LCD Video Wall 700nits:
| Panel Data |
Panel
|
46" full new original Samsung Panel(DID) |
|
Native Resolution
|
1920X1080 | |
|
Display colors
|
16.7M | |
|
Brightness
|
700cd/m2 | |
|
Contrast Ratio
|
4000:1 | |
|
Dot Pitch
|
0.17675(H) × 0.53025(V) mm | |
|
Display Area
|
1018.08(H)×572.67(V) mm | |
|
Bezel-to-bezel width
|
1.7mm | |
|
View Angle
|
89/89/89/89(L/R/U/D) | |
|
Response Time
|
8ms | |
|
Suitable operation time
|
18 hours per day | |
| Basic spec | Main Input Interfaces |
VGA x 1
|
|
HDMI x 1
|
||
|
DVI x 1
|
||
|
BNC x 1
|
||
|
RJ45 x 1
|
||
| Main Output interface |
RS232 x 2
|
|
|
BNC x 1
|
||
| Customizable |
Customized functions are ready according to specific requirements.
|
|
| Color |
Silver, Black, White or Customized
|
|
| Power Supply |
AC 100 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~50℃
|
|
| Operation Humidity |
10% ~ 90% RH
|
|
| Storage Temperature |
-20℃~60℃
|
Remarks: The specification is subject to change without notice in advance.

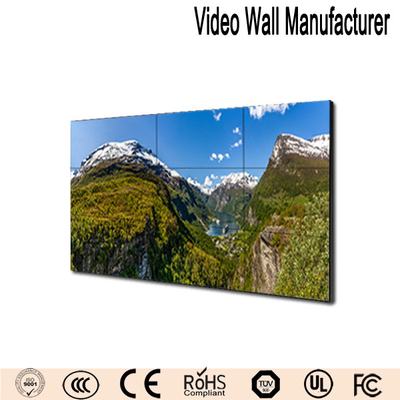

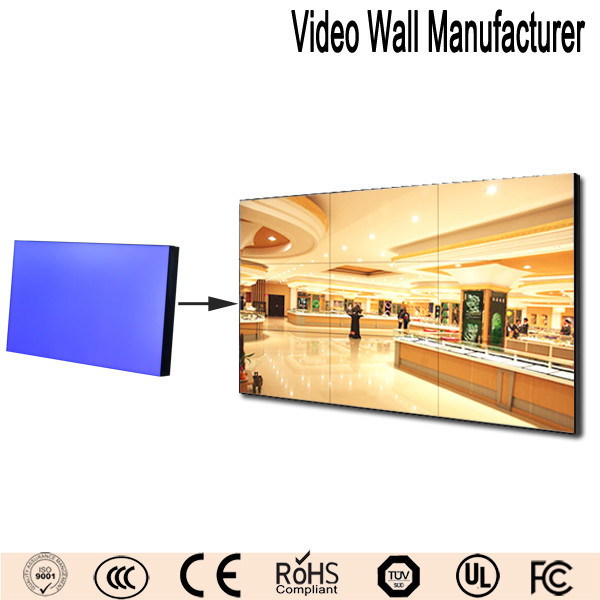

Other related pictures of 1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits:
FAQ for 1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits:
FAQ for Outdoor Digital Signage Solutions For Gas Stations Advertising:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery .
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: What brand of screen are you using?
A: We are using Samsung, LG, and Samsung screens.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory, and we have the excellent structural Engineer, we hope to provide you with the excellent screen and shape, so OEM is also welcome.
Q: Do you give any discount?
A: We are Manufacturer, so we are able to give you the excellent price and excellent service at the same time.
Q: What payment methods does your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union, Paypal, and Money Gram
