Product Details:
|
| Product Name: | CE Certification HD LCD Seamless Splicing Screen Customizable | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Surface: | Antiglare | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500cd/m2 |
| Contrast Ratio: | 4000:1 | Display Colors: | 16.7M |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Resolution: | 3840X2160 | Bezel To Bezel Width: | 1.8mm |
| Highlight: | CE LCD Splicing Screen,Antiglare LCD Splicing Screen,Seamless LCD Video Wall |
||
CE certification HD LCD Seamless Splicing Screen customizable
LCD splicing wall currently accounts for a large proportion of the video display market. According to different industries, the requirements of users are becoming higher and higher. The built-in function of the LCD splicing wall is becoming more and more powerful. The TV wall processor can combine multiple physical outputs into an ultra-high-resolution display output after resolution superposition, but the screen wall forms a logic display screen with ultra-high resolution, ultra-high brightness, and super large display scale, Complete the display functions of multiple signal sources (network signal, RGB signal, and video signal) in various ways such as windowing, moving and blooming on the screen wall. Multi signal access (NTSC, pal, 480i, 576i, 720I, 1080i, 1080p), m * n full-screen display, split-screen single signal display, any combination of single signal splicing display.
Main Features of CE certification HD LCD Seamless Splicing Screen customizable:
7. LCD splicing wall has a low calorific value, no radiation, no flicker, no eye injury, and no harmful substances (such as lead, mercury, cadmium, and chromium).
8. The embedded installation of the splicing screen is simple and convenient, with a compact overall structure and space-saving.
9. It can effectively solve the tailing and blur in the process of rapid image movement, enhance the clarity and contrast of the image, and make the picture clearer.
10. The service life of the LCD backlight can reach more than 60000 hours to ensure that the service life of the display screen is not less than 60000 hours.
11. The splicing quantity of the LCD splicing wall can be arbitrarily selected (row (m)) × Column (n)).
Specifications of CE certification HD LCD Seamless Splicing Screen customizable:
| Panel Data |
Panel
|
55" full new original Samsung Panel(DID) |
|
Native Resolution
|
3840X2160 | |
|
Display colors
|
16.7M | |
|
Brightness
|
500cd/m2 | |
|
Contrast Ratio
|
4000:1 | |
|
Dot Pitch
|
0.210(H) X 0.630(V) mm | |
|
Display Area
|
1209.6(H) X 680.4(V) mm | |
|
Bezel-to-bezel width
|
1.8mm | |
|
View Angle
|
89/89/89/89(L/R/U/D) | |
|
Response Time
|
8ms | |
|
Suitable operation time
|
18 hours per day | |
| Basic spec | Main Input Interfaces |
VGA x 1
|
|
HDMI x 1
|
||
|
DVI x 1
|
||
|
BNC x 1
|
||
|
RJ45 x 1
|
||
| Main Output interface |
RS232 x 2
|
|
|
BNC x 1
|
||
| Customizable |
Customized functions are ready according to specific requirements.
|
|
| Color |
Silver, Black, White or Customized
|
|
| Power Supply |
AC 100 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~50℃
|
|
| Operation Humidity |
10% ~ 90% RH
|
|
| Storage Temperature |
-20℃~60℃
|
Remarks: The specification is subject to change without notice in advance.

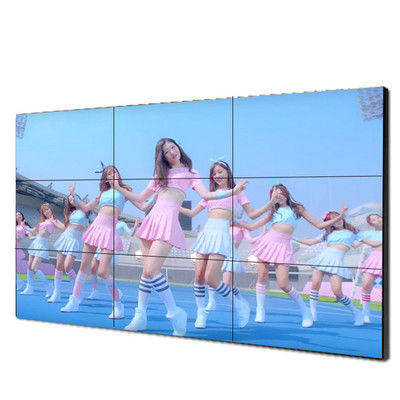

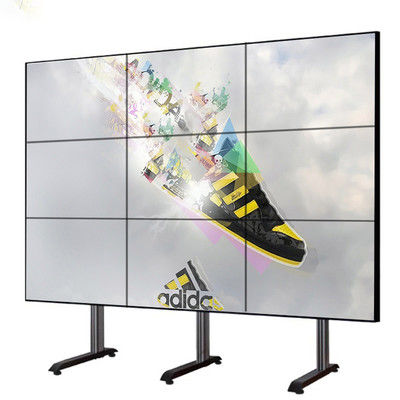

Other related pictures of CE certification HD LCD Seamless Splicing Screen customizable:
FAQ for CE certification HD LCD Seamless Splicing Screen customizable:
FAQ for Outdoor Digital Signage Solutions For Gas Stations Advertising:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery .
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: What brand of screen are you using?
A: We are using Samsung, LG, and Samsung screens.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory, and we have the excellent structural Engineer, we hope to provide you with the excellent screen and shape, so OEM is also welcome.
Q: Do you give any discount?
A: We are Manufacturer, so we are able to give you the excellent price and excellent service at the same time.
Q: What payment methods does your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union, Paypal, and Money Gram
