Product Details:
|
| Product Name: | HD Customized LCD Advertising Player Seamless Splicing Screen | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Surface: | Antiglare | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500cd/m2 |
| Contrast Ratio: | 4000:1 | Display Colors: | 16.7M |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Resolution: | 3840X2160 | Bezel To Bezel Width: | 1.8mm |
| Highlight: | 55Inch Seamless LCD Video Wall,Splicing Seamless LCD Video Wall,500cd/m2 LCD Video Wall |
||
HD Customized LCD Advertising Player Seamless Splicing Screen
LCD splicing wall currently accounts for a large proportion of the video display market. According to different industries, the requirements of users are becoming higher and higher. The built-in function of the LCD splicing wall is becoming more and more powerful. The TV wall processor can combine multiple physical outputs into an ultra-high-resolution display output after resolution superposition, but the screen wall forms a logic display screen with ultra-high resolution, ultra-high brightness, and super large display scale, Complete the display functions of multiple signal sources (network signal, RGB signal, and video signal) in various ways such as windowing, moving and blooming on the screen wall. Multi signal access (NTSC, pal, 480i, 576i, 720I, 1080i, 1080p), m * n full-screen display, split-screen single signal display, any combination of single signal splicing display.
Main Features of HD Customized LCD Advertising Player Seamless Splicing Screen:
1. High brightness
Compared with TV and PC LCD, LCD LCD has a higher brightness. The brightness of TV or PC LCD is generally only 250 ~ 300cd / ㎡, while the brightness of LCD can reach 700 CD / ㎡ or even 1000cd / ㎡.
2. High contrast
LCD has a contrast ratio of 4000:1, which is more than twice that of traditional PC or TV LCD and three times that of general rear projection.
3. Better color saturation
At present, the color saturation of ordinary CRT is only about 50%, while LCD can reach 92% high color saturation, which is due to the color calibration technology developed for products. Through this technology, in addition to the color calibration of still pictures, it can also calibrate the color of dynamic pictures, so as to ensure the accuracy and stability of picture output.
4. Wider perspective
PVA (patterned vertical alignment) technology is called "image vertical alignment technology". With this technology, the visual angle can reach more than 178 ° (transverse and longitudinal).
5. Better reliability
The ordinary LCD screen is designed for TV and PC display, which does not support continuous use day and night. The LCD screen is designed for the monitoring center and display center, which supports continuous use for 7x24 hours.
6. Pure plane display
LCD is representative of flat panel display equipment. It is a real flat panel display. It has no curvature, large picture, deformation, and distortion.
7. Ultrathin narrow edge design
With unique design and exquisite manufacturing technology, the frame structure of the LCD splicing unit has made a qualitative leap from the previous did splicing unit: the thickness of the left and upper frames of 460adl did splicing unit is 4.3mm; The thickness of the right and lower frames is 2.4mm; The thickness of the integrated splicing frame is only about 7mm! It can bring perfect visual enjoyment to splicing users.
Specifications of HD Customized LCD Advertising Player Seamless Splicing Screen:
| Panel Data |
Panel
|
55" full new original Samsung Panel(DID) |
|
Native Resolution
|
3840X2160 | |
|
Display colors
|
16.7M | |
|
Brightness
|
500cd/m2 | |
|
Contrast Ratio
|
4000:1 | |
|
Dot Pitch
|
0.210(H) X 0.630(V) mm | |
|
Display Area
|
1209.6(H) X 680.4(V) mm | |
|
Bezel-to-bezel width
|
1.8mm | |
|
View Angle
|
89/89/89/89(L/R/U/D) | |
|
Response Time
|
8ms | |
|
Suitable operation time
|
18 hours per day | |
| Basic spec | Main Input Interfaces |
VGA x 1
|
|
HDMI x 1
|
||
|
DVI x 1
|
||
|
BNC x 1
|
||
|
RJ45 x 1
|
||
| Main Output interface |
RS232 x 2
|
|
|
BNC x 1
|
||
| Customizable |
Customized functions are ready according to specific requirements.
|
|
| Color |
Silver, Black, White or Customized
|
|
| Power Supply |
AC 100 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~50℃
|
|
| Operation Humidity |
10% ~ 90% RH
|
|
| Storage Temperature |
-20℃~60℃
|
Remarks: The specification is subject to change without notice in advance.

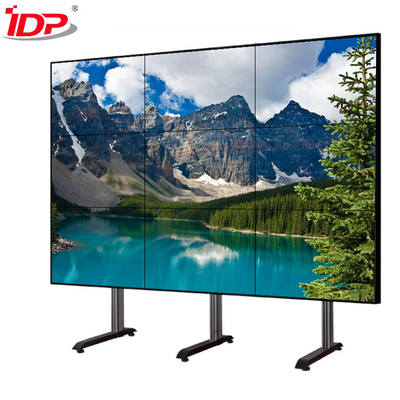

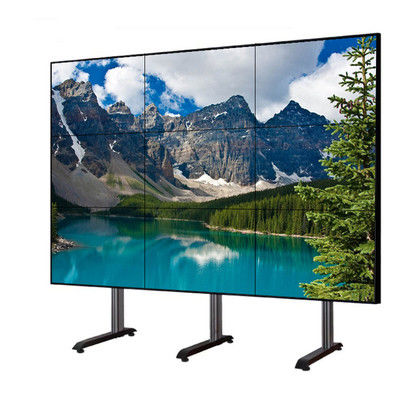

Other related pictures of HD Customized LCD Advertising Player Seamless Splicing Screen:
FAQ for HD Customized LCD Advertising Player Seamless Splicing Screen:
FAQ for Outdoor Digital Signage Solutions For Gas Stations Advertising:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery .
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: What brand of screen are you using?
A: We are using Samsung, LG, and Samsung screens.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory, and we have the excellent structural Engineer, we hope to provide you with the excellent screen and shape, so OEM is also welcome.
Q: Do you give any discount?
A: We are Manufacturer, so we are able to give you the excellent price and excellent service at the same time.
Q: What payment methods does your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union, Paypal, and Money Gram
