Product Details:
|
| Product Name: | 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Surface: | Antiglare | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 700cd/m2 |
| Contrast Ratio: | 4000:1 | Display Colors: | 16.7M |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Resolution: | 3840X2160 | Bezel To Bezel Width: | 3.5mm |
| High Light: | 3.5mm Seamless LCD Screen,4k Seamless LCD Screen,Splicing LCD Video Wall |
||
3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player
Free shipping digital signage accessories for spare parts.
LCD splicing wall currently accounts for a large proportion of the video display market. According to different industries, the requirements of users are becoming higher and higher. The built-in function of the LCD splicing wall is becoming more and more powerful. The TV wall processor can combine multiple physical outputs into an ultra-high-resolution display output after resolution superposition, but the screen wall forms a logic display screen with ultra-high resolution, ultra-high brightness, and super large display scale, Complete the display functions of multiple signal sources (network signal, RGB signal, and video signal) in various ways such as windowing, moving and blooming on the screen wall. Multi signal access (NTSC, pal, 480i, 576i, 720I, 1080i, 1080p), m * n full-screen display, split-screen single signal display, any combination of single signal splicing display.
Main Features of 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player:
8. The brightness is uniform and the image is stable without flickering
Because every point of LCD keeps that color and brightness after receiving the signal, unlike CRT, which needs to refresh pixel points constantly. Therefore, the LCD has uniform brightness, high image quality, and absolutely no flicker.
9. Splicing method is optional
The splicing quantity of the LCD splicing wall can be arbitrarily selected (row (m)) × Column (n)), and the size of the screen can also be selected to meet the needs of different applications.
10. Flexible splicing display combination function
Personalized design can be carried out according to the requirements of different users, and functions such as single-screen display, whole screen display, arbitrary combination display, image roaming, image superpositions, and so on can be selected.
11. Advanced screen parameters and functions
In view of the possible inconsistency of parameters between the LCD screen and the driving circuit used in the LCD splicing curtain wall, the LCD splicing wall system has the adjustment functions of brightness, contrast, chroma, and white balance. After debugging, the parameters are automatically saved, so as to ensure the color consistency and brightness uniformity of the whole splicing screen.
12. Environmental protection and health
Compared with the rear projection (including CRT rear projection, DLP, etc.) splicing wall, the LCD splicing wall has low calorific value, no radiation, no flicker, no eye injury, and no harmful substances (such as lead, mercury, cadmium, and chromium). It is a new generation of environmental protection and health splicing wall.
Specifications of 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player:
| Panel Data |
Panel
|
55" full new original Samsung Panel(DID) |
|
Native Resolution
|
3840X2160 | |
|
Display colors
|
16.7M | |
|
Brightness
|
700cd/m2 | |
|
Contrast Ratio
|
4000:1 | |
|
Dot Pitch
|
0.210(H) X 0.630(V) mm | |
|
Display Area
|
1209.6(H) X 680.4(V) mm | |
|
Bezel-to-bezel width
|
3.5mm | |
|
View Angle
|
89/89/89/89(L/R/U/D) | |
|
Response Time
|
8ms | |
|
Suitable operation time
|
18 hours per day | |
| Basic spec | Main Input Interfaces |
VGA x 1
|
|
HDMI x 1
|
||
|
DVI x 1
|
||
|
BNC x 1
|
||
|
RJ45 x 1
|
||
| Main Output interface |
RS232 x 2
|
|
|
BNC x 1
|
||
| Customizable |
Customized functions are ready according to specific requirements.
|
|
| Color |
Silver, Black, White or Customized
|
|
| Power Supply |
AC 100 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~50℃
|
|
| Operation Humidity |
10% ~ 90% RH
|
|
| Storage Temperature |
-20℃~60℃
|
Remarks:
1.The specification is subject to change without notice in advance.
2.Free shipping digital signage accessories for spare parts.

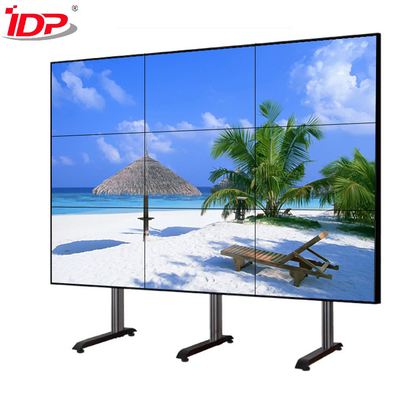

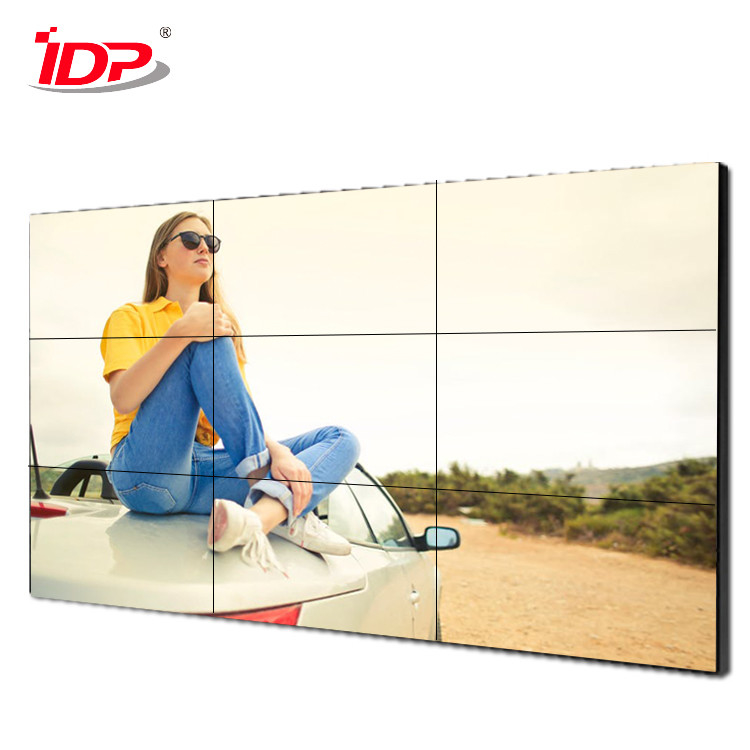

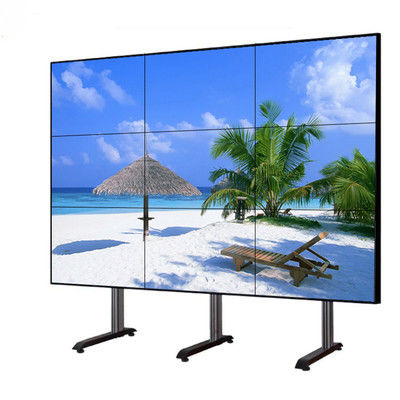

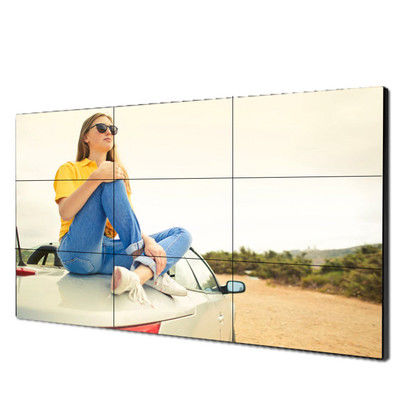

Other related pictures of 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player:
