Product Details:
|
| Size: | 55 Inch | Native Resolution: | 1920×1080 |
|---|---|---|---|
| Brightness: | 500cd/m2 | Bezel-to-bezel Width: | 3.5mm |
| Contrast Ratio: | 4000:1 | View Angle: | 89/89/89/89(L/R/U/D) |
| Dot Pitch: | 0.210(H)×0.630(V)mm | Response Time: | 8ms |
| High Light: | 3.5mm Bezels LCD Video Walls,AC240V LCD Video Walls,RS232 LCD Video Wall |
||

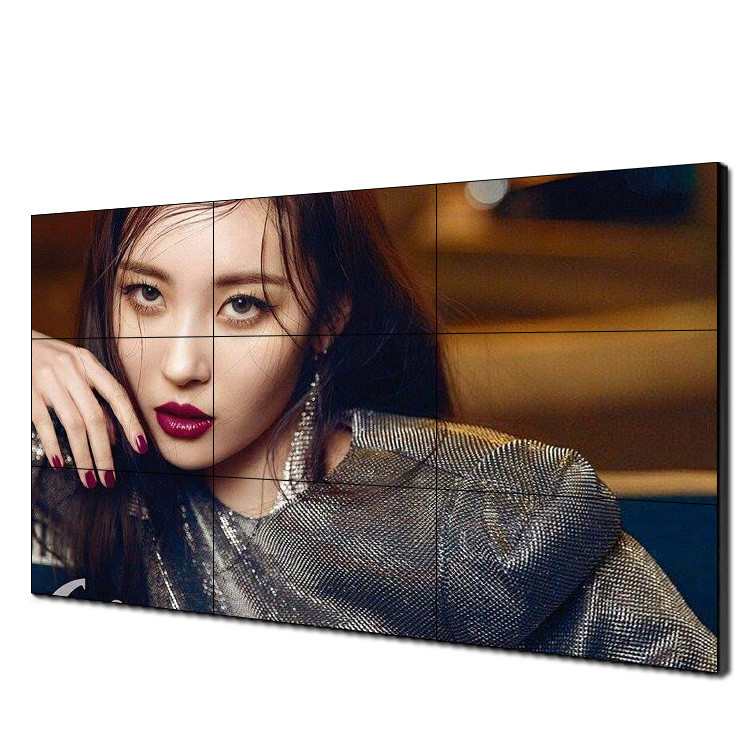

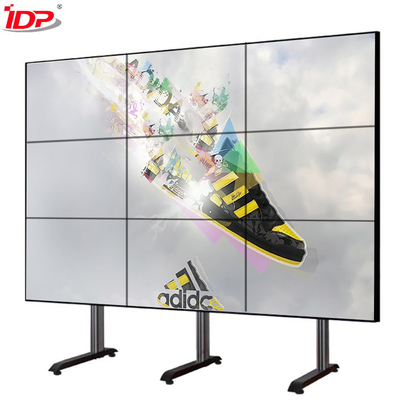

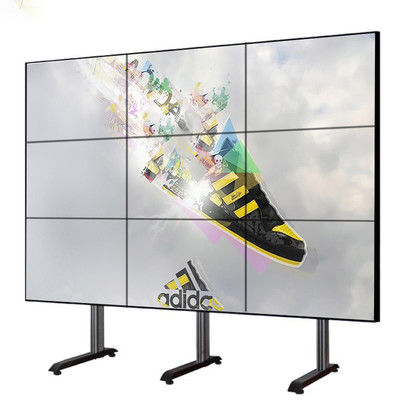

Full HD Ultra Narrow Bezels Seamless LCD Video Walls
55 inch ultra-narrow bezels lcd video walls(LED backlight) is used to show display window in large scale size screen.
For example, in the traffic control room the officer wants to know the real traffic flow in a certain area. The display area on a wall is about 10 meters X 3 meters. There are 60 on-site cameras. Each camera tells the situation of each working site. How to realize this need?
The video wall can do this. For the 10 meters X 3 meters display wall, it can be divided into 60 sub-screen windows(each sub-screen is a single display). Input 60 signals from the camera into the video wall(60 displays). Now you can see the 60 working sites on the video wall. If you want to see clearly the situation in one working site, just choose the corresponding display and then the whole area of the video wall only shows this single display. It is 10 meters X 3 meters. How clear it is! The most important is that the gap between two displays is pretty narrow, which doesn’t decrease the view effect.
The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.
Main features:
1. Original Sangsung/LG Video wall panel.
2. High brightness and contrast.
3. 24/7/365 each year, long lifetime.
4. Wide full view angel and longtime durability.
5. Frameless video wall ideally for indoor large format view area display.
6. Software with multi-language switch, easy to use and operation.
7.Easy to control and management with signal switcthing.
Applications:
1. Business shops: shopping malls, chain stores, cooperative buildings, hotels, restaurants, etc.
2. Government or non-profit organizations: banks, security agencies, insurance companies, governments, bookstores, museums, schools, etc.
3. Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
4. Traffic department: subway station, bus, taxi, gas station, airport, etc.
specification:
| Panel Data | Panel | 55" full new original Samsung Panel(DID) |
| Native Resolution | 1920X1080 | |
| Display colors | 16.7M | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Display Area | 1209.6(H) x 680.4(V) mm | |
| Bezel-to-bezel width | 3.5mm | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Response Time | 8ms | |
| Suitable operation time | 18 hours per day | |
| Basic spec | Main Input Interfaces | VGA x 1 |
| HDMI x 1 | ||
| DVI x 1 | ||
| BNC x 1 | ||
| RJ45 x 1 | ||
| Main Output interface | RS232 x 2 | |
| BNC x 1 | ||
| Customizable | Customized functions are ready according to specific requirements. | |
| Color | Silver, Black, White or Customized | |
| Power Supply | AC 100 ~ 240V, 50/60 Hz | |
| Operation Temperature | 0 ℃~50℃ | |
| Operation Humidity | 10% ~ 90% RH | |
| Storage Temperature | -20℃~60℃ |
Remarks: The specification is subject to change without notice in advance.
