Product Details:
|
| Panel Brand: | For Samsung/LG | Size: | 55 Inch |
|---|---|---|---|
| Native Resolution: | 1920x1080 | Aspect Ratio: | 16:9 |
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500 Cd/m2 |
| Contrast Ratio: | 3000:1 | Response Time: | 8ms |
| View Angle: | 89/89/89/89(L/R/U/D) | ||
| High Light: | Thin Video Wall Display 1920 x 1080,55 Inch Narrow Bezel Digital Display,500cd/M2 Ultra Thin Bezel Digital Display |
||

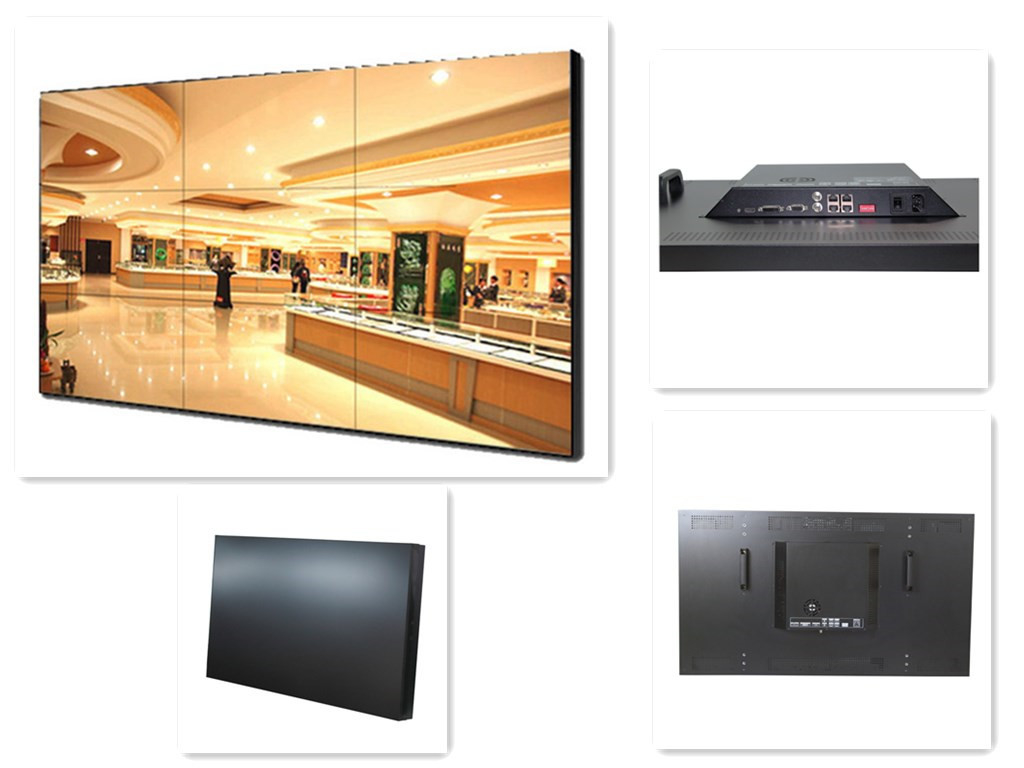

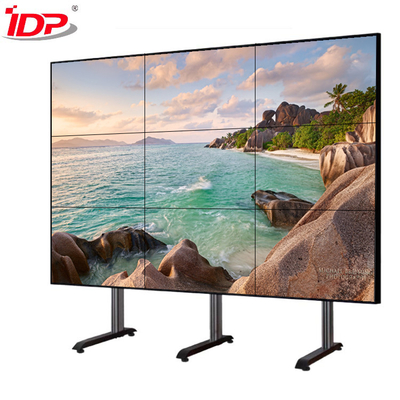

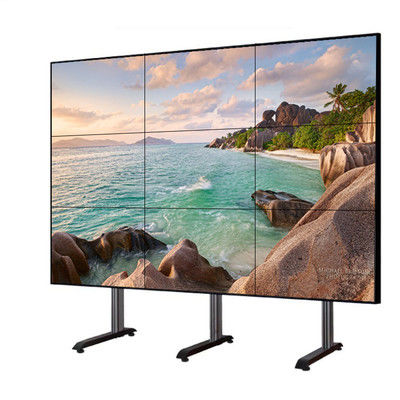

55-inch 1080P 500 Nits Ultra 3.5mm Narrow Bezel Video Wall Display
Main Features:
1. 55 inch lcd video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers as 6.7mm, 5.7mm, 5.5mm, 5.3mm.
It is said Samsung will release 3.5mm display in 2014. If that comes true, it will be a ground-breaking improvement of lcd video wall.
2. High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
3. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
4. The picture on the video wall is uniform because of led backlight and the light compensation point technology.
Available size: 46 inch, 47 inch, 55 inch.
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| General Information | Bezel-to-bezel width | 5.5mm |
| Inputs | VGA x1 | |
| HDMI x1 | ||
| DVI x1 | ||
| Video/Audio x1 | ||
| RS232 x1 | ||
| Outputs | RS232 x1 | |
| Optional | DP in/DP out | |
| Image Resolution | 5000 x 5000 px Max | |
| Video Resolution | 1920 x 1080p Max | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | On the wall, on the floor, in the cabinet. | |
With DisplayPort daisy chain functionality, the video and audio can be delivered to multiple AG Neovo’s large format displays using DisplayPort cables, and it saves a significant amount of time. IR/RS232 loop-through capability provides a convenient single point of control for multi-display installation.
