Product Details:
|
| Size: | 24 Inch | Native Resolution: | 1920x1080 |
|---|---|---|---|
| Dot Pixel: | 0.090(H)x10270(V)mm | Active Area: | 518.4(H)x324.0(V)mm |
| Contrast Ratio: | 1000:1 | Brightness: | 400cd/m2 |
| Response Time: | 5ms | Display Colors: | 16.7M(8-bit) |
| Highlight: | Wall mounting type advertising LED screen,400cd/M2 Wall Mount LED Display Screen |
||

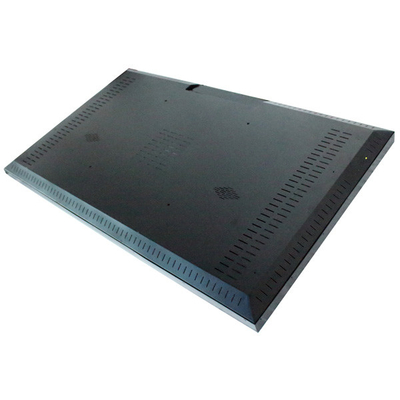

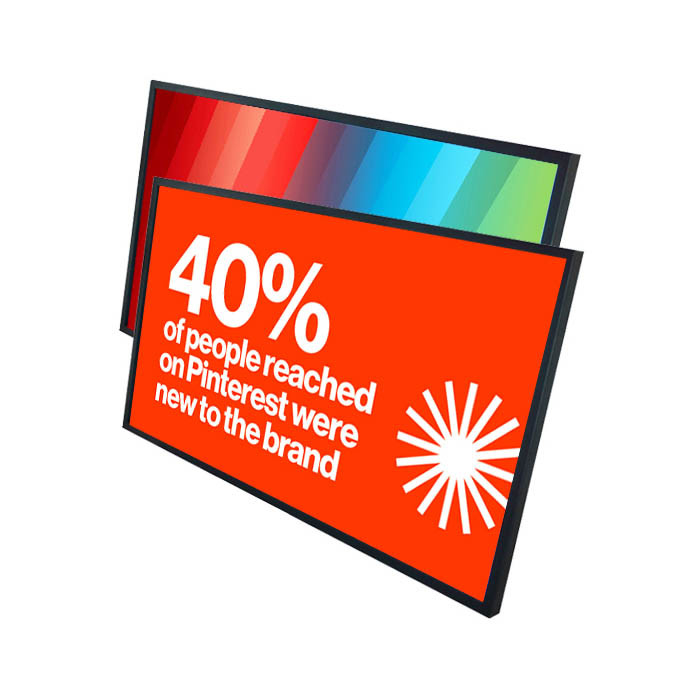

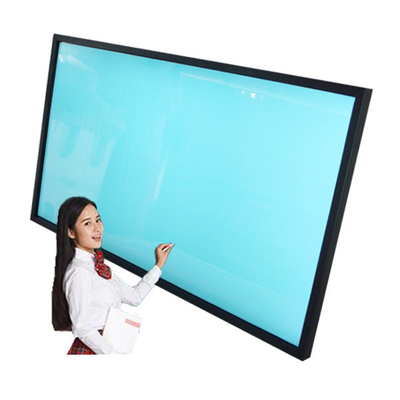

24 inch Full HD Indoor Wall-mount Display 400cd/m2:
The Wall mounting type advertising LED screen is no need for any gap between the LED cabinet and the concrete wall, so it is widely used in wall-mounted installation and embedded installation projects, such as indoor shopping malls, stations, subways, hotels, nightclubs, bars. Video wall is a new structure design, which can meet the lifting, and stacking requirements.
Product features:
1. Easy to install;
2. Resolution: 1920×1080;
3. Wall mounting type advertising LED screen can be customized according to users needs;
4. Easy upgraded if the advertisement business layout changes;
5. Play HD 1080P videos and pictures.
Applications:
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 24 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:10 | |
| Surface | Antiglare, hard coating | |
| Active Area | 518.4(H) x 324.0(V) mm | |
| Dot Pitch | 0.090(H) x 0.270(V) mm | |
| Brightness | 400cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Display Colors | 16.7M(8-bit) | |
| Response Time | 5ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| Network Data(*) | Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| OS | Android 5.1 | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
| General Information | Image Resolution | 5000 x 5000 px Max |
| Video Resolution | 1920 x 1080p Max | |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20 ℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | Wall mount | |
