Product Details:
|
| Size: | 55 Inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Active Area: | 1209.6(H) X 680.4(V) Mm |
| Contrast Ratio: | 3000:1 | Brightness: | 500 Cd/m² |
| Response Time: | 8 Ms | Display Ratio: | 16:9 |
| Material: | Fine Aluminum + Tempered Glass 4mm | Life Time: | 60000 Hours |
| High Light: | Seamless Tiled Video Wall Display,Ultra Narrow Bezel Video Wall Screen,55 Inch Video Wall Digital Signage |
||

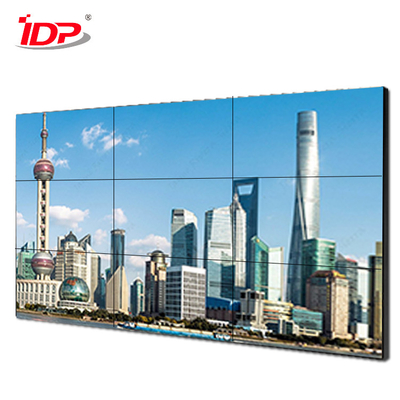

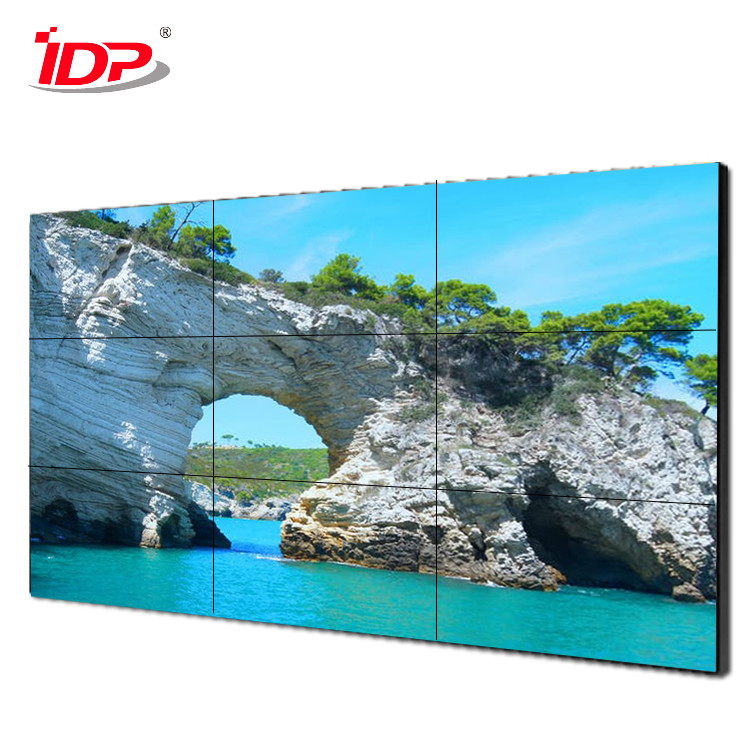

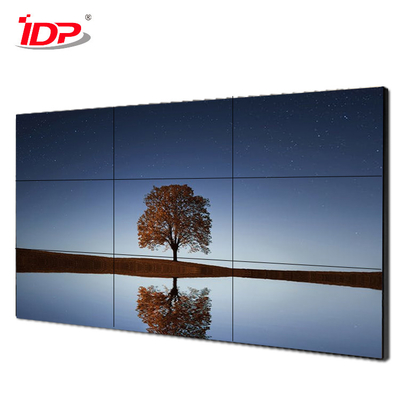

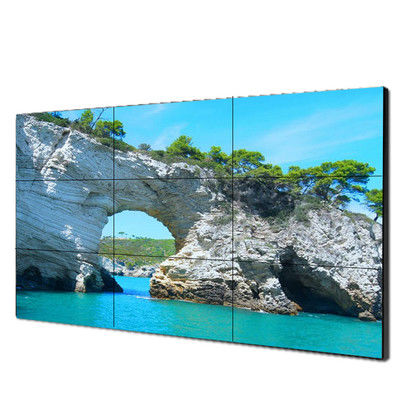

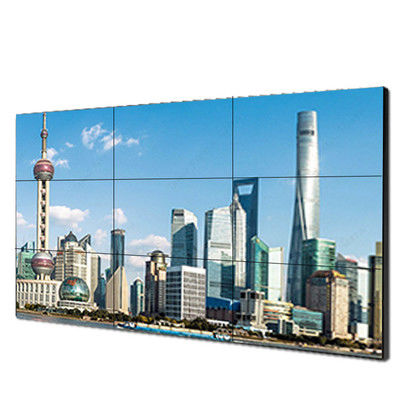

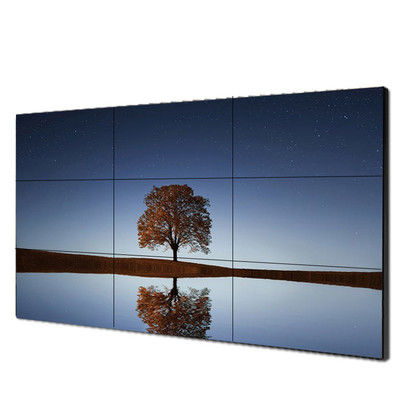

55 Inch Video Wall Digital Signage seamless tiled LCD commercial grade panels
The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.
Main features:
1. 55 inch ultra narrow bezel video wall, bezel-to-bezel width is as low as 3.5mm, by which you can hardly see the gap when the video wall presents a display window.
2. High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
3. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
4. The picture on the video wall is uniform because of led backlight and the light compensation point technology.
***Available size: 55 inch; ultra narrow 46 inch video wall display unit(bezel-to-bezel width 3.5 mm) is for option.
Our advantages:
1. Screen sizes from 46″ to 55″
2. Commercial-grade screens with high brightness (5 to 14 times as bright as household TVs)
3. 24/7 functionality
4. Super narrow bezel of 3.5 mm
5. Network compatible for easy upload of new content and RSS feeds
6. Wall mounted
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 55 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare | |
| Active Area | 1209.6(H) x 680.4(V) mm | |
| Dot Pitch | 0.210(H) x 0.630(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| General Information | Bezel-to-bezel width | 3.5mm(ultra narrow bezel video wall) |
| Inputs | VGA x1 | |
| HDMI x1 | ||
| DVI x1 | ||
| Video/Audio x1 | ||
| RS232 x1 | ||
| Outputs | RS232 x1 | |
| Optional | DP in/DP out | |
| Image Resolution | 5000 x 5000 px Max | |
| Video Resolution | 1920 x 1080p Max | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | On the wall, on the floor, in the cabinet. |
|
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.The details are subject to upgraded without notice in advance.
