Product Details:
|
| Size: | 46 Inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Dot Pitch: | 0.17675(H) X 0.53025(V) Mm | Active Area: | 1018.08(H) X 572.67(V) Mm |
| Contrast Ratio: | 3000:1 | Brightness: | 500 Cd/m² |
| Response Time: | 8 Ms | Display Ratio: | 16:9 |
| Material: | Fine Aluminum + Tempered Glass 4mm | Life Time: | 60000 Hours |
| High Light: | 46 Inch Bezel Less Video Wall,Mid Level Brightness Seamless Video Wall,IDP LCD video wall 1920X1080 |
||

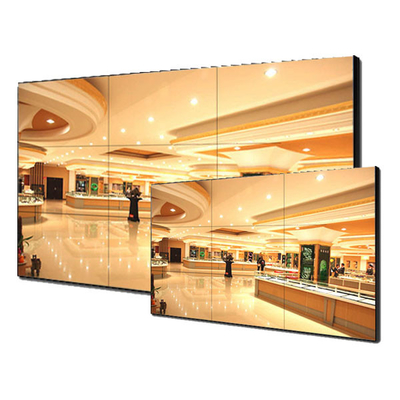

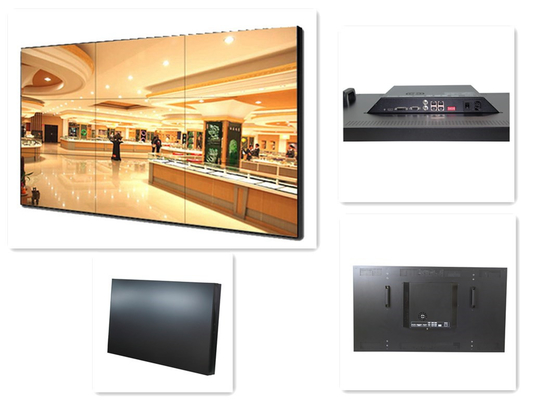

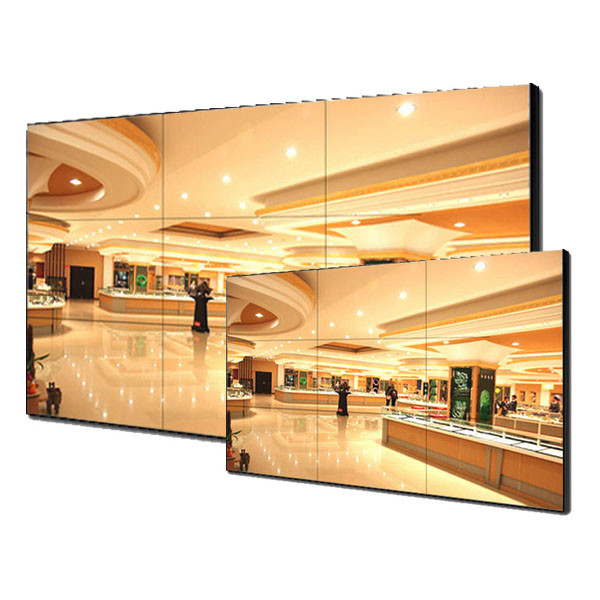

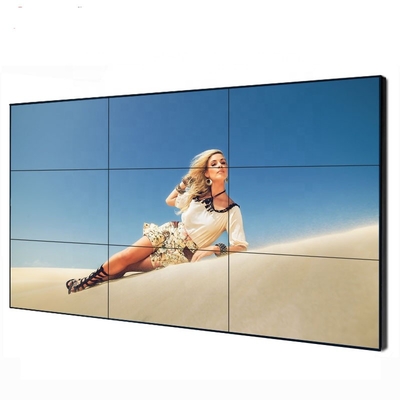

46 Inch bezel-less LCD video wall platform with controlled ambient light
IDP LCD video wall is a high-performance, mid-level brightness (500 cd/m² typical) and cost optimized 46" LCD-panel, dedicated for use in tiled video wall applications. Being part of the UNB 5.3 mm bezel generation, with excellent colors and a wide viewing angle, the LCD video wall provides great value to entry level and mid-end applications. 46 inch seamless video wall(LED backlight) is used to show display window in large scale size screen. The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.
Main features:
1. Super narrow seamless lcd video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers as 6.7mm, 5.7mm, 5.5mm, 5.3mm.
2. High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
3. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
4. The picture on the video wall is uniform because of led backlight and the light compensation point technology.
***Available size: 46 inch, 47 inch, 55 inch.
Our advantages:
1.Bezel-less design with No Gap technology
2. 500 cd/m² brightness
3.Mounting structure with automatic alignment for ensured precision
4. Fastest servicing and diagnosing
5. Modular, future-proof platform
6.User-friendly video-wall setup and control interface
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung |
| Size | 46 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare | |
| Active Area | 1018.08(H) x 572.67(V) mm | |
| Dot Pitch | 0.17675(H) x 0.53025(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz | |
| General Information | Bezel-to-bezel width | 5.3mm |
| Inputs | VGA x1 | |
| HDMI x1 | ||
| DVI x1 | ||
| Video/Audio x1 | ||
| RS232 x1 | ||
| Outputs | RS232 x1 | |
| Optional | DP in/DP out | |
| Image Resolution | 5000 x 5000 px Max | |
| Video Resolution | 1920 x 1080p Max | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | On the wall, on the floor, in the cabinet. | |
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.The details are subject to upgraded without notice in advance.
