Product Details:
|
| Aspect Ratio: | 16 : 9 | Active Area: | 1209.6(H) X 680.4(V) Mm |
|---|---|---|---|
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500cd/m² |
| Contrast Ratio: | 4000:1 | Display Colors: | 16.7M |
| Response Time: | 8ms | Frequency: | 60Hz |
| Highlight: | 16.7M HD Video Wall,500cd/m2 HD Video Wall,LCD Video Wall Seamless |
||
55 Inch HD Commercial Grade IPS Panel LCD Video Wall,Smart Temperature Control System
Description
Seamless Video Wall:With a total bezel size of 3.5mm these displays are ideal as part of a virtually seamless LCD Video Wall – providing you with an eye catching, and content focused display. Their super narrow bezel allows you to build video walls of any size.
Embedded Video Matrix Processor:Our Video Wall Displays can be used independently or as part of a tiled video wall. If you require a video wall with hassle free setup then the units can tile the video signal automatically thanks to their built in video matrix processor. This means the video wall can have any configuration without any additional hardware.
IPS Commercial Grade Panel:IPS Commercial Grade Panel
Multiple Inputs:Powerful interface supporting a wide range of audio and video inputs, such as HDMI, VGA, DVI, RGB/HV, Composite Video.
Features
Power Timer:The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.
LED Backlight Technology:Thanks to their LED backlight these displays offer improved brightness and contrast as well as drastically improving their lifespan and reducing their power consumption. Unlike other forms of light this technology is mercury free; making it even more eco-friendly.
Smart Temperature Control System:The internal air-conditioning system allows the screens to be in constant use. A fanless cooling system keeps their panels and other internal components at the optimum working temperature; ensuring a long and reliable life for your screens.

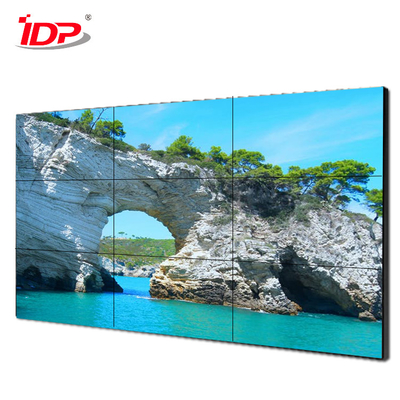

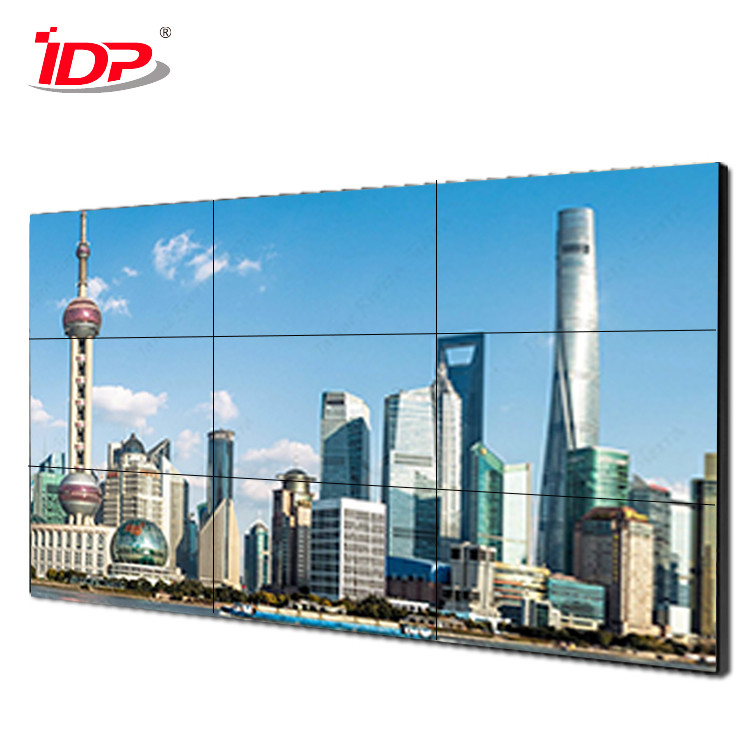

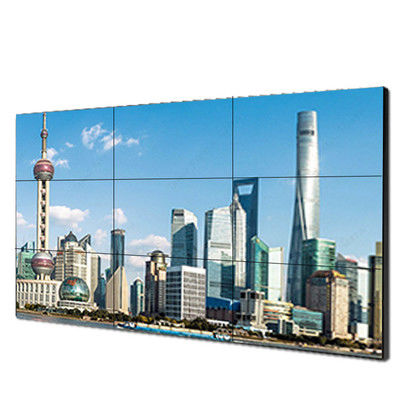

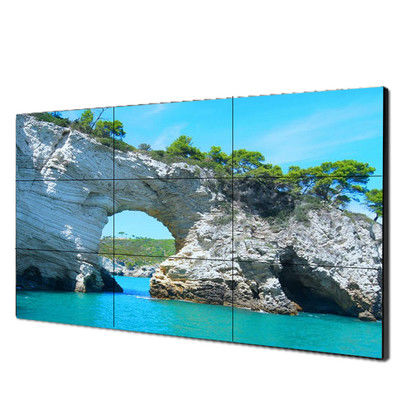

Real Pictures Of 55 Inch HD Commercial Grade IPS Panel LCD Video Wall,Smart Temperature Control System
Specifications of 55 Inch HD Commercial Grade IPS Panel LCD Video Wall,Smart Temperature Control System :
| Panel Data |
Panel
|
55" full new original Samsung Panel(DID) |
|
Native Resolution
|
1920X1080 | |
|
Display colors
|
16.7M | |
|
Brightness
|
500cd/m2 | |
|
Contrast Ratio
|
4000:1 | |
|
Dot Pitch
|
0.17675(H) × 0.53025(V) mm | |
|
Display Area
|
1018.08(H)×572.67(V) mm | |
|
Bezel-to-bezel width
|
5.3mm | |
|
View Angle
|
89/89/89/89(L/R/U/D) | |
|
Response Time
|
8ms | |
|
Suitable operation time
|
18 hours per day | |
| Basic spec | Main Input Interfaces |
VGA x 1
|
|
HDMI x 1
|
||
|
DVI x 1
|
||
|
BNC x 1
|
||
|
RJ45 x 1
|
||
| Main Output interface |
RS232 x 2
|
|
|
BNC x 1
|
||
| Customizable |
Customized functions are ready according to specific requirements.
|
|
| Color |
Silver, Black, White or Customized
|
|
| Power Supply |
AC 100 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~50℃
|
|
| Operation Humidity |
10% ~ 90% RH
|
|
| Storage Temperature |
-20℃~60℃
|
Remarks: The specification is subject to change without notice in advance.
