Product Details:
|
| Panel: | 55" Full New Original Samsung Pane | Native Resolution: | 1920 X 1080 |
|---|---|---|---|
| Display Colors: | 16.7M | Brightness: | 500cd/m² |
| Contrast Ratio: | 4000:1 | Dot Pitch: | 0.210(H) X 0.630(V) Mm |
| Display AreaBezel-to-bezel Width: | 1209.6(H) X 680.4(V) Mm | Response Time: | 8 Ms |
| Suitable Operation Time: | 18 Hours Per Day | View Angle: | 89/89/89/89(L/R/U/D) |

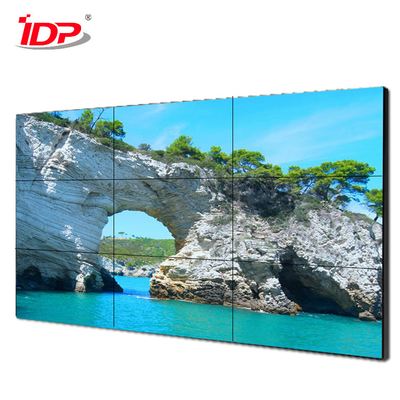

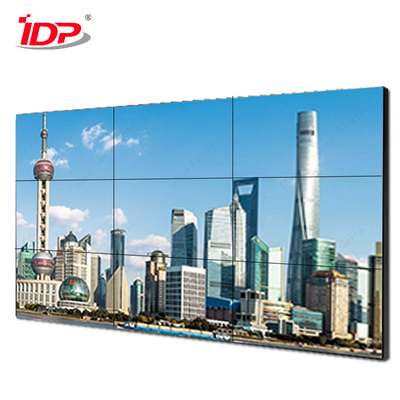

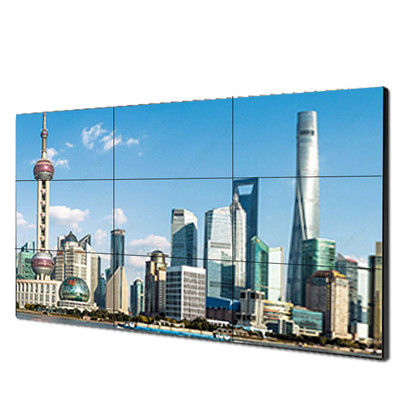

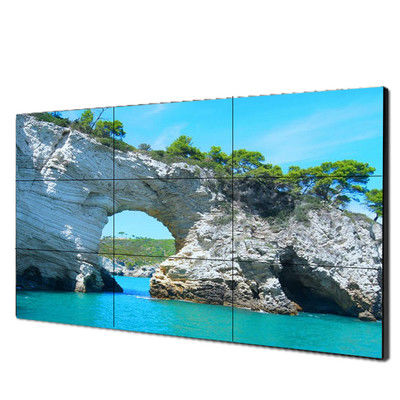

55 inch Anti-reflective Glass Full HD 5.5 mm Bezel Width LCD Video Wall Display
For the 10 meters X 3 meters display wall, it can be divided into 60 sub-screen windows (each sub-screen is a single display). Input 60 signals from the camera into the video wall (60 displays). Now you can see the 60 working sites on the video wall. If you want to see clearly the situation in one working site, just choose the corresponding display and then the whole area of the video wall only shows this single display. It is 10 meters X 3 meters. How clear it is! The most important is that the gap between two displays is pretty narrow, which doesn’t decrease the view effect.
Main features:
1.Built with Original FHD professional video wall panel, high brightness and contrast, wide full view angel and long time duriblity.
2.Frameless video wall ideally for indoor large format view area display.
3.Commercial and industrial grade quality, working 24 hours/7 days.
4.Intelligent cooling system, environmental protection mute cooling fan, Energy saving, reducing noise and temperature
5.Low energy consumption backlight system, energy saving and reduce LCD panel heat to improve the reliability of LCD monitor and effectively 6.solve eye fatigue.
7.Software with multi-language switch, easy to use and operation.
8.Easy to control and management with signal switching, Source view and Color temperature adjustment etc.
| Panel Data | Panel | 55" full new original Samsung Panel(DID) | ||||
| Native Resolution | 1920X1080 | |||||
| Display colors | 16.7M | |||||
| Brightness | 500cd/m2 | |||||
| Contrast Ratio | 4000:1 | |||||
| Dot Pitch | 0.210(H) x 0.630(V) mm | |||||
| Display Area | 1209.6(H) x 680.4(V) mm | |||||
| Bezel-to-bezel width | 3.5mm(1.8mm for optional) | |||||
| View Angle | 89/89/89/89(L/R/U/D) | |||||
| Response Time | 8ms | |||||
| Suitable operation time | 18 hours per day | |||||
| Basic spec | Main Input Interfaces | VGA x 1 | ||||
| HDMI x 1 | ||||||
| DVI x 1 | ||||||
| BNC x 1 | ||||||
| RJ45 x 1 | ||||||
| Main Output interface | RS232 x 2 | |||||
| BNC x 1 | ||||||
| Customizable | Customized functions are ready according to specific requirements. | |||||
| Color | Silver, Black, White or Customized | |||||
| Power Supply | AC 100 ~ 240V, 50/60 Hz | |||||
| Operation Temperature | 0 ℃~50℃ | |||||
| Operation Humidity | 10% ~ 90% RH | |||||
| Storage Temperature | -20℃~60℃ | |||||
Note:
1. The price is includes standard accessory kits.
2. Payment term: 30% for initial payment, balance after we finish production.
3. Payment way: T/T bank transfer, Western Union, L/C at sight.
4. OEM/ODM order is available, for various functionalities, designs , shapes etc.
5. Delivery time: 5 days(To be checked).
6. Warranty time: Standard 12 months(24 months/36 months warranty time is for option)
7. The above quotation valid date is within 30 days.
