Product Details:
|
| Aspect Ratio: | 16 : 9 | Active Area: | 1209.6(H) X 680.4(V) Mm |
|---|---|---|---|
| Dot Pitch: | 0.210(H) X 0.630(V) Mm | Brightness: | 500cd/m² |
| Contrast Ratio: | 4000:1 | Display Colors: | 16.7m |
| Response Time: | 8ms | Frequency: | 60HZ |
55 Inch Wallpape ZDS Legacy Video Wall 4K UHD High Brightness Collaboration Displays With Ultra Slim Bezel Screen Rotation & Expandable
Description
1.ZDS offers the highest quality in commercial grade LED backlit LCD displays. Our displays are of the newest technology, and set a new standard for Tiled Matrix Hyperwall displays.LED backlighting is great for reducing energy and allows for a thin display panel.
2.ZDS is also setting a new quality standard in being able to offer the thinnest bezel size available--1.7mm across from image to image. All of our displays are equipped with an advanced heat dispatching technology which allows 24/7 operation
3.N×N Expandable Screen Size
By tiling up displays horizontally and vertically, the screen size can be as large as users want. Expansive, large screens are effective at moving viewers by providing an incredibly immersive viewing experience.
Features

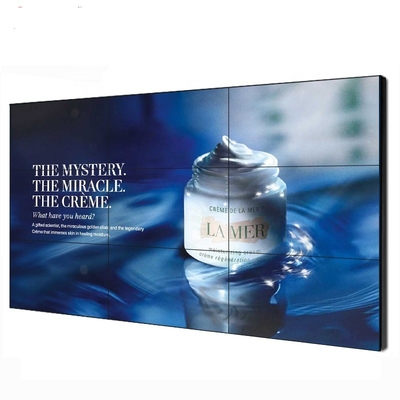

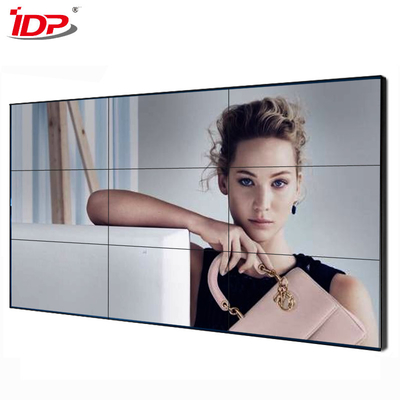

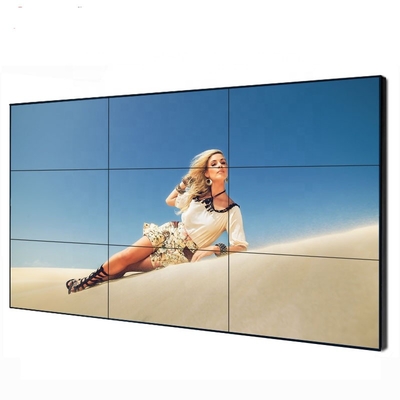

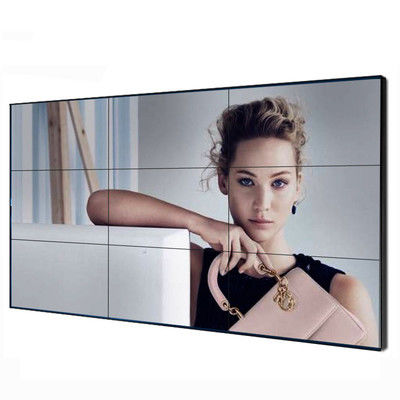

Real Pictures Of 55 Inch High Brightness 4K UHD LCD Video Wall,Invisible 1.8mm Bezel And LED Backlight
Specifications
| Panel Data |
Panel
|
55" full new original Samsung Panel(DID) |
|
Native Resolution
|
1920X1080 | |
|
Display colors
|
16.7M | |
|
Brightness
|
500cd/m2 | |
|
Contrast Ratio
|
4000:1 | |
|
Dot Pitch
|
0.17675(H) × 0.53025(V) mm | |
|
Display Area
|
1018.08(H)×572.67(V) mm | |
|
Bezel-to-bezel width
|
5.3mm | |
|
View Angle
|
89/89/89/89(L/R/U/D) | |
|
Response Time
|
8ms | |
|
Suitable operation time
|
18 hours per day | |
| Basic spec | Main Input Interfaces |
VGA x 1
|
|
HDMI x 1
|
||
|
DVI x 1
|
||
|
BNC x 1
|
||
|
RJ45 x 1
|
||
| Main Output interface |
RS232 x 2
|
|
|
BNC x 1
|
||
| Customizable |
Customized functions are ready according to specific requirements.
|
|
| Color |
Silver, Black, White or Customized
|
|
| Power Supply |
AC 100 ~ 240V, 50/60 Hz
|
|
| Operation Temperature |
0 ℃~50℃
|
|
| Operation Humidity |
10% ~ 90% RH
|
|
| Storage Temperature |
-20℃~60℃
|
Remarks: The specification is subject to change without notice in advance.
