Product Details:
|
| Native Resolution: | 1920X1080 | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Surface: | Antiglare | Active Area: | 1018.08(H) X 572.67(V) Mm |
| Dot Pitch: | 0.17675(H) X 0.53025(V) Mm | Brightness: | 500cd/m2 |
| Contrast Ratio: | 3000:1 | Display Colors: | 16.7M |
| Response Time: | 8ms | View Angle: | 89/89/89/89(L/R/U/D) |
| Frequency: | 60Hz |
IDP Electronics Co., Ltd

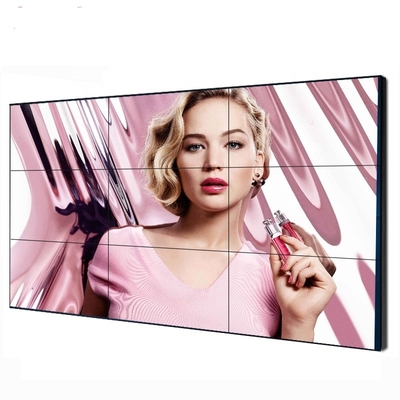

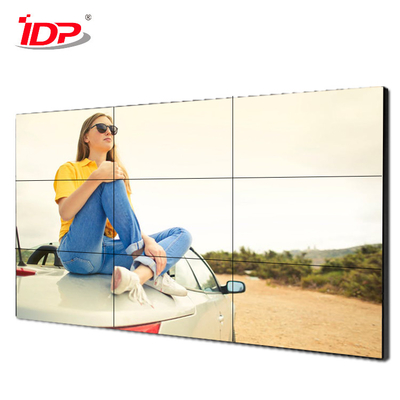

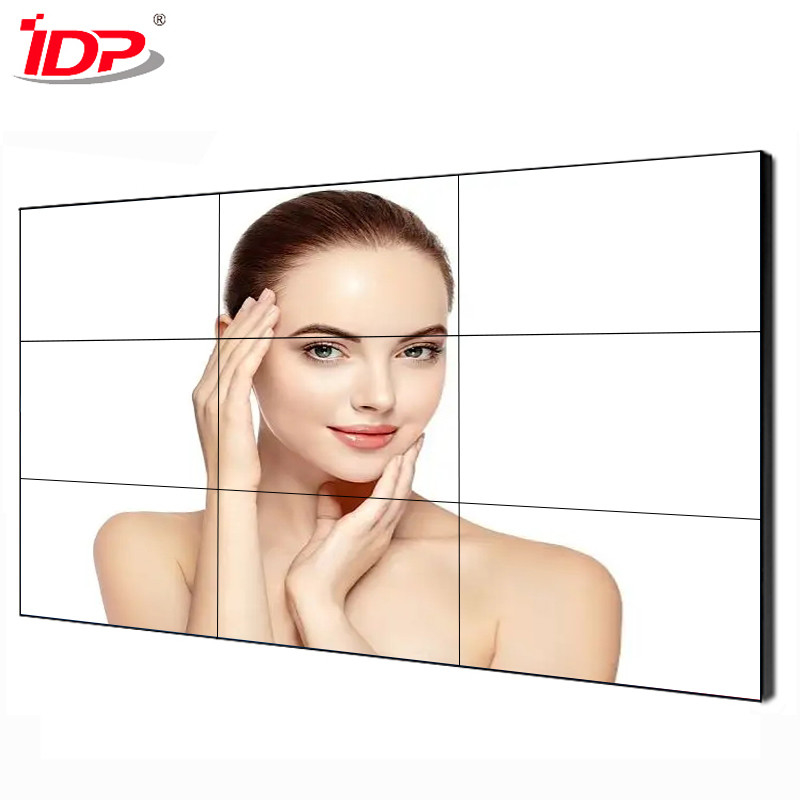

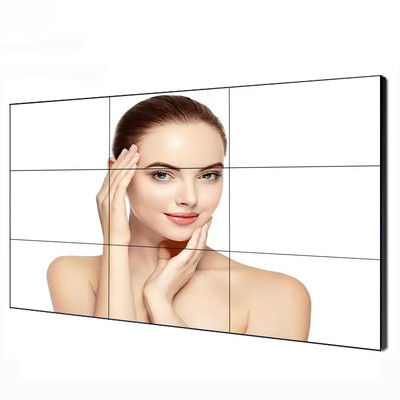

46 Inch Seamless LCD Video Wall 3x3 500cd/M2 DLP Video Wall High Brightness
1. LCD Display Video Wall
2. DLP Commercial Video Wall
3. PDP Commercial Display
46 Inch Seamless Video Wall, magnificent picture, colorful, high definition, strong visual impact, has a good display, demonstration, advertising, publicity effect; easy to install, free from space constraints. 46 Inch Seamless Video Walll is widely used in: video surveillance, traffic control, security monitoring and national defense, stage entertainment, TV studios, stock securities, large-scale exhibitions, shopping malls, banks, office halls, company welcome screens, specialty stores, dispatching Command and so on.
The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.
High Brightness Seamless Video Wall
Seamless Video Wall has a beautiful wall and a compact overall structure, which can save a lot of use space, has good heat dissipation, and can adapt to long-term work in various environments;
Hardware architecture, software operating system, pure green version control software does not need to be installed; the interface is simple, and the operation is extremely user-friendly.
Main Features:
1. Super narrow seamless lcd video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers as 6.7mm, 5.7mm, 5.5mm, 5.3mm.
It is said Samsung will release 3.5mm display in 2014. If that comes true, it will be a ground-breaking improvement of lcd video wall.
2. High brightness and high contrast. The brightness is 450cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
3. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
4. The picture on the video wall is uniform because of led backlight and the light compensation point technology.
***Available size: 46 inch, 47 inch, 55 inch.
www.szidp.com
Specifications:
| Panel Data | Panel Brand | For Samsung |
| Size | 46 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:09 | |
| Surface | Antiglare | |
| Active Area | 1018.08(H) x 572.67(V) mm | |
| Dot Pitch | 0.17675(H) x 0.53025(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 3000:01:00 | |
| Display Colors | 16.7M | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Frequency | 60Hz |
| General Information | Bezel-to-bezel width | 5.3mm |
| Inputs | VGA x1 | |
| HDMI x1 | ||
| DVI x1 | ||
| Video/Audio x1 | ||
| RS232 x1 | ||
| Outputs | RS232 x1 | |
| Optional | DP in/DP out | |
| Image Resolution | 5000 x 5000 px Max | |
| Video Resolution | 1920 x 1080p Max | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Storage Temperature | -20℃~60℃ | |
| Storage Humidity | 0 ~ 90% | |
| Installation | On the wall, on the floor, in the cabinet. |
Remarks: The specification is subject to change without notice in advance.
