Product Details:
|
| Size: | 21.5 Inch | Contrast: | 3000:1 |
|---|---|---|---|
| Response Time: | 5ms | Brightness: | 400cd/m² |
| View Angle: | 178°(H) / 178°(V) | Dot PiXel: | 0.0825(H) X 0.2475(V)mm |
| Active Area: | 475.2(H) X 267.3(V)mm | Life Time: | 60000 Hours |
| Highlight: | 21.5Inch LED Digital Signage,Multifunctional LED Digital Signage,CCC Android Display Screen |
||

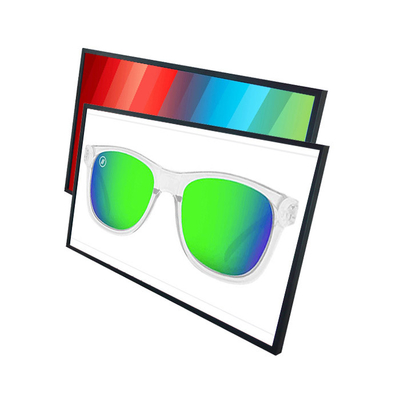

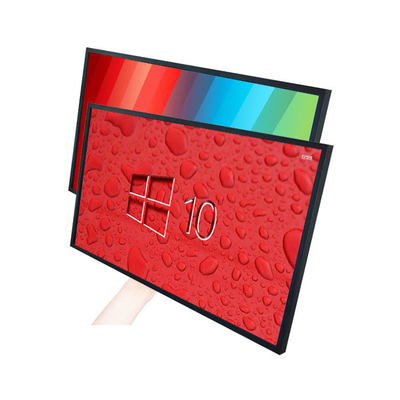

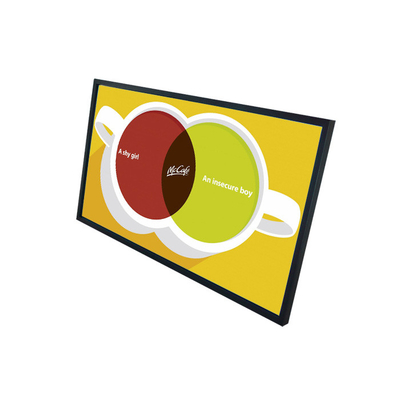

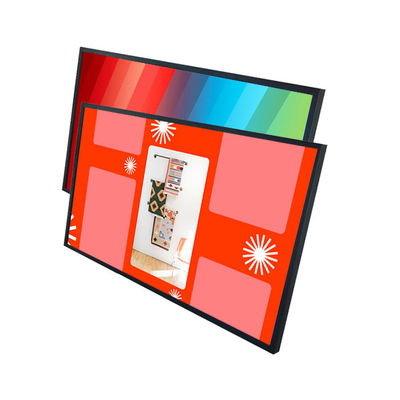

21.5 Inch High Brightness Multifunctional LCD Digital Signage
With the improvement and popularization of Android OS commercial TV, the light of real network digital signage monitor appeared. The Android window display(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices they locate. The stable Android OS commercial monitor makes the device work 7/24 hours safe and sound.
Industry leaders across channels recognize the necessity of capturing evasive customers with attractive, attention-grabbing digital displays. LCD high brightness window TV provides an opportunity like no other to engage audiences, create experiences and build brand loyalty.
Specifications:
| Parameters | ||
|
Panel Data |
Panel Brand | For Samsung/LG |
| Size | 21.5 inch | |
| Native Resolution | 1920X1080 | |
| Surface | Antiglare, hard coating | |
| Active Area | 475.2(H) X 267.3(V)mm | |
| Dot Pitch | 0.0825(H) X 0.2475(V)mm | |
| Brightness | 400 cd/m² | |
| Contrast Ratio | 3000:1 | |
| Response Time | 5ms | |
| View Angle | 178°(H) / 178°(V) | |
| Frequency | 60Hz | |
|
Network Data |
Android | ARM Cortex-A17 |
| RAM | 2GB(4GB for optional) | |
| Land flash | 8GB(option, up to 32GB) | |
| Video decoding | HD H.264 2160p video decoding Multi-format FHD(1920x1080P) video decoding |
|
| Audio | Integrated HI-FI 100dB Audio Codec | |
| Picture format | JPG, PNG, JPEG... | |
| TXT | YES | |
| Main I/O | HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1 | |
| WiFi | Built-in Wifi(802.11b/g/n) | |
|
General Information |
Image Resolution | 5000 x 5000 px Max |
| Color | Silver, Black, White or Customized | |
| Material | Fine Aluminum + Tempered Glass | |
| Speaker | 10W x2 | |
| Remote Control | IR Remote Control | |
| Menu Language | English, Germany, Russian, French and Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operating Altitude | 0~3,000 meters | |
| Storage Humidity | 0 ~ 90% | |
Main features of multifunctional LCD digital signage:
Suitable for various kinds of outdoor environment, such as snow, desert, shore etc, and support operation temperature from -40 Celsius to +55 Celsius.
Smart forced air cooling system or air-conditioner system to ensure stable and reliable performance.
Support split screen, one screen window is divided into several sections for different usages.
Scrolling message, the pre-set message can be displayed.
Remotely manage devices in different locations by internet.
Easy upgraded if the advertisement business layout changes.
OEM/ODM service: digital signage enclosure, functions etc.
Details:
1) Vibrant colors and powerful performance bring content
This product uses LG/SAMSUNG screen, with excellent image quality and the most advanced processing capabilities, and provides a value-added visual experience without peripheral equipment. High bright panel is anti-glare, sunlight readable for easy viewing.
2) The more details about outdoor interactive kiosk
With the touch screen feature,it is not difficult to think that there will be interactive features. Your audience can interact with the signage. With a specially designed media outlet, you can make this interaction worth remembering.
3) Remote control can serve as a wireless access point for mobile devices.
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Note:
1.OEM/ODM for various functionalities, designs , shapes etc.
2.Optional touch screen settings.
3.The details are subject to upgraded without notice in advance.
*The details are subject to upgraded without notice in advance.
