Product Details:
|
| Size: | 84 Inch | Native Resolution: | 3840x2160 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Surface: | Antiglare, Hard Coating |
| Active Area: | 1860.48(H) X 1046.52(V) Mm | Dot Pitch: | 0.1615(H) X 0.4845(V) Mm |
| Brightness: | 500cd/m² | Contrast Ratio: | 1400:1 |
| Display Colors: | 16.7M(8-bit) | Response Time: | 8ms |
| View Angle: | 89/89/89/89(L/R/U/D) | Backlight: | LED Backlight |
| High Light: | 84 Inch Multi Touch Whiteboard,Multi Touch Whiteboard 3840x2160P,4K all in one interactive whiteboard |
||

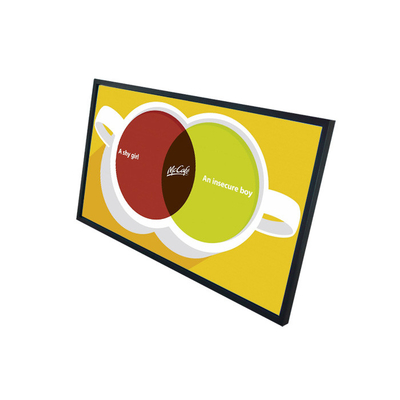

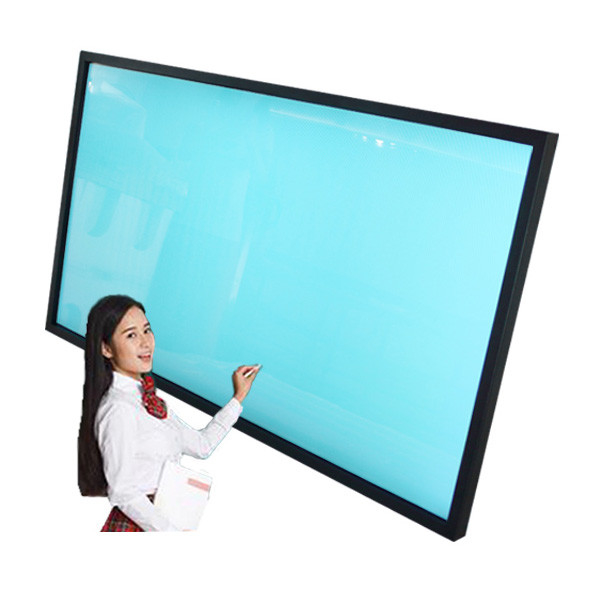

84 inch All in one Multi-touch Whiteboard
This is an all-in-one software package that includes large-size commercial displays, multi-touch screens, and hardware based on built-in solutions, such as Windows-based solutions or Android-based solutions. Commercial displays are large screens with HDMI/DVI/VGA input, which can be extended to more types of audio and video inputs. Multi-touch screens are used in various interactive applications, such as LCD interactive whiteboards, touch screen query systems , path finding systems, etc. Built-in solutions include Windows-based solutions, Android-based solutions, etc.
All in one Multi-touch Whiteboard
1. Large-size liquid crystal display adopts industrial liquid crystal panel, wide viewing angle, high brightness, durable, stable performance and long life. In theory, the panel life is more than 6 years, and it works 24/7. This is different from personal use of a monitor.
2. The built-in solution is suitable for different types of interactive touch screens.
3. Available sizes are 32 inches, 42 inches, 46 inches, 55 inches, 60 inches, 65 inches, 70 inches, 80 inches, 84 inches, 98 inches, etc.
Main features:
1. All-in-one solution, easy to use.
2. HDMI/VGA and expandable input/output.
3. High definition 3840 x 2160 (4K) native resolution.
4. Fast and fast touch response, providing excellent user experience.
5. Wide viewing angle, high brightness, industrial design.
6. The LED backlight has low power consumption and is environmentally friendly.
7. All-in-one multi-touch display suitable for different applications.
Application:
Commercial shops: shopping malls, chain stores, cooperative buildings, hotels, restaurants, etc.
Government or non-profit organizations: banks, security agencies, insurance companies, governments, bookstores, museums, schools, etc. Entertainment: cinemas, cafes, gyms, attractions, bars, etc. Transportation department: subway station, traffic control room, airport, etc.
Specifications:
| Panel Data | Panel Brand | For LG |
| Size | 84 inch | |
| Native Resolution | 3840x2160 | |
| Aspect Ratio | 16:09 | |
| Surface | Antiglare, hard coating | |
| Active Area | 1860.48(H) x 1046.52(V) mm | |
| Dot Pitch | 0.1615(H) x 0.4845(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 1400:01:00 | |
| Display Colors | 16.7M(8-bit) | |
| Response Time | 8ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Backlight | LED backlight |
| General Information | Built-in PC | Intel i3/i5/i7(Android OS based is for optional) |
| Main I/O port | HDMI x 1 | |
| USB x 4 | ||
| VGAx 1 | ||
| Resolution supported | 640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080, 3840x2160 | |
| Color | Silver, Black, White or Customized | |
| Speaker | 10W x2 | |
| Control way | IR Remote Control | |
| Menu Language | English, Germany, Russian, French, Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters |
| Touch Screen | Touch technology | Infrared Touch |
| Touch point | 2 point,6 point,10 point,16 point,20 point, 32 point,40 point,50point,100 point. | |
| Touch method | Finger,pen or non-transparent object | |
| Resolution | 4096 x 4096 | |
| Positioning accuracy | ±1.5mm | |
| Touch life time | Unlimited in theory | |
| Anti-light Interference | Yes | |
| Waterproof | Optional | |
| OS Compatible | Win 2000/XP/Win 7/Win 8/Vista/Limux/Android(for optional) |
Remarks: The specification is subject to change without notice in advance.
