Product Details:
|
| Size: | 43 Inch | Native Resolution: | 1920X1080 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Surface: | Antiglare, Hard Coating |
| Active Area: | 927.94(H) X 521.96(V) Mm | Dot Pitch: | 0.1611(H) X 0.4833(V) Mm |
| Brightness: | 500cd/m² | Contrast Ratio: | 4000:1 |
| Display Colors: | 16.7M(8-bit) | Response Time: | 8ms |
| View Angle: | 89/89/89/89(L/R/U/D) | Backlight: | LED Backlight |
| High Light: | 43Inch Multi Touch Kiosk,Multi Touch Kiosk LCD,LCD Digital Signage Display 1920*1080 |
||

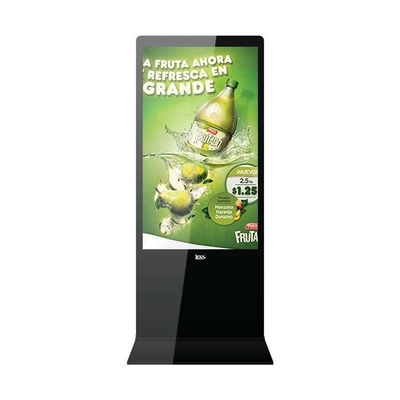

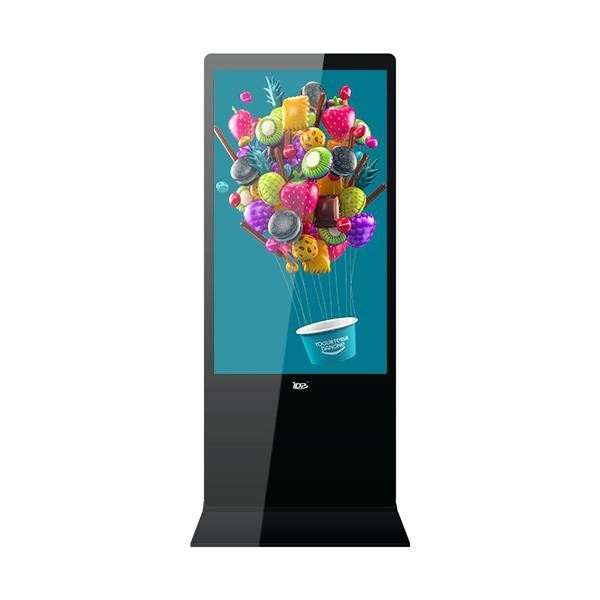

Shopping Mall 43 Inch Multi-touch LCD Kiosk 1920*1080 High Resolution
This is all-in-one package, including large size commercial monitor, multi-touch screen and built-in solution based hardware, such as Windows-based solution or Android-based solution. Commercial monitor is the large format screen, with HDMI/DVI/VGA input which is expandable to more kinds of Audio & Video inputs.The multi-touch screen is used for various interactive applications, such as lcd interactive whiteboard, touch-screen enquiry system, way-finding system etc.The built-in solution includes Windows-based solution, Android-based solution etc.
1. Large size lcd monitor is made of industrial lcd panel which has wide view angle, high brightness, durable stable performance and long life time. In theory the panel life time is more than 6 years, working 24/7. This is different from personal usage monitor.
2. The built-in solution is ready for different kinds of interactive touch screen usages.
3. The available size is as this, 32 inch, 42 inch, 46 inch, 47 inch, 55 inch, 65 inch, 70 inch, 80 inch, 84 inch, 98 inch etc.
Main features:
1. All-in-one solution, easy to use.
2. HDMI/VGA and expandable inputs/outputs.
3. High definition 1920 x 1080 (1080P) native resolution.
4. Fast and quick touch response for excellent user experience.
5. Wide view angle, high brightness and industrial design.
6. LED backlight with low power consumption, environment friendly.
7. All in one multi-touch display available for different applications.
8. OEM/ODM service is available.
Applications:
Specifications:
| Parameters | ||
| Panel Data | Panel Brand | For Samsung/LG |
| Size | 43 inch | |
| Native Resolution | 1920x1080 | |
| Aspect Ratio | 16:9 | |
| Surface | Antiglare, hard coating | |
| Active Area | 927.94(H) x 521.96(V) mm | |
| Dot Pitch | 0.1611(H) x 0.4833(V) mm | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Display Colors | 16.7M(8-bit) | |
| Response Time | 5ms | |
| View Angle | 89/89/89/89(L/R/U/D) | |
| Backlight | LED backlight | |
| General Information | Built-in PC | Intel i3/i5/i7(Android OS based is for optional) |
| Main I/O port | HDMI x 1 | |
| USB x 4 | ||
| VGAx 1 | ||
| Resolution supported | 640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080 | |
| Color | Silver, Black, White or Customized | |
| Speaker | 10W x2 | |
| Control way | IR Remote Control | |
| Menu Language | English, Germany, Russian, French, Spanish etc | |
| Power Supply | AC 110 ~ 240V | |
| Operation Temperature | 0 ℃~40℃ | |
| Operation Humidity | 20% ~ 80% | |
| Operating Altitude | 0~3,000 meters | |
| Touch Screen | Touch technology | Infrared Touch |
| Touch point | 2 point,6 point,10 point,16 point,20 point, 32 point,40 point,50point,100 point. | |
| Touch method | Finger,pen or non-transparent object | |
| Resolution | 4096 x 4096 | |
| Positioning accuracy | ±1.5mm | |
| Touch life time | Unlimited in theory | |
| Anti-light Interference | Yes | |
| Waterproof | Optional | |
| OS Compatible |
Win 2000/XP/Win 7/Win 8/Vista/Limux/Android(for optional) |
|
